| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-13J |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Electronic Partitioned Mesh Chicken Mesh Welding Machine | Wire Diameter Range: | 2-3.5mm |
|---|---|---|---|
| Voltage: | 220V/380V/415V/440V | Key Selling Points: | Automatic |
| Color: | Grey& Yellow | Usage: | Chicken Cage Partitioned Mesh |
| Lead Time: | 15 Days | Automation Degree: | Full Automatic |
| Certification: | CE ISO | Producton Capacity: | 50 Sets/Month |
| Cooling Method: | Water Cooling | Warranty: | 1 Year |
| Highlight: | Partitioned 380V Chicken Mesh Making Machine,380V Chicken Mesh Making Machine |
||

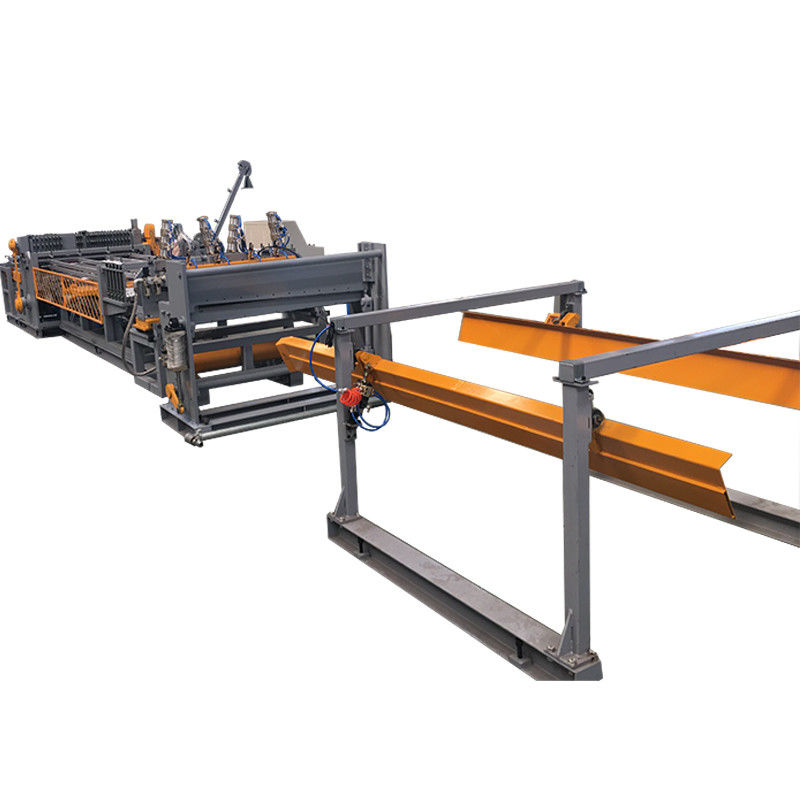

Electronic Partitioned Mesh Chicken Mesh Welding Machine
Transformer: the main part is silicon steel sheet and copper wire package, imported from Korea with guaranteed quality. Copper wire package of copper content reached above 99.9%, effectively avoiding the copper loss of the transformer. The primary and secondary grades of the transformer are poured by epoxy vacuum, to ensure the tightness of the transformer, effectively avoid leakage and water leakage. The transformer is mounted from 380V to 5-10V, with a lower wire rail to adjust the lower wire gap. Make the operation more convenient.
Water cooling system,; transformer and electrode seat are useful to effectively control temperature, prolong service life and ensure normal operation of equipment for 24 hours.
| Item | Product type | Parameter | Remark |
| 1 | Max. welding capacity | ¢ 2-3.5mm | |
| 2 | Long wire diameter | ¢2-3.5mm | |
| 3 | Cross wire diameter | ¢2-3.5mm | |
| 4 | Long wire feeding method | In coil | |
| 5 | Cross wire feeding method | In coil | |
| 6 | Long wire spacing | ≥50mm | Mechanically adjustment |
| 7 | Cross wire spacing | ≥25mm | Programming adjustments |
| 8 | Length range of wire mesh | 300-4000mm | Adjustable |
| 9 | Width range of wire mesh | 500-1300mm | Adjustable |
| 10 | Number of welding spot | 27PCS | |
| 11 | Working speed max. | 50-70times/min |
The overhangs of meshes cut by this device are very short, which can save material cost for your High Frequency Electronic Chicken Mesh Welding Machine.
The length of the steel mesh can be arbitrarily settled by editing the production parameters to meet different needs.
The High Frequency Electronic Chicken Mesh Welding Machine cutting range of mesh width Is 1300mm. It can be adjusted according to user needs.
The High Frequency Electronic Chicken Mesh Welding Machine cutting speed of mesh is controlled by the PLC
High Frequency Electronic Chicken Mesh Welding Machine adopts pneumatic cutting with big pressure, which can easily cut 27 pcs wires with diameter 2-3.5mm.
