Place of Origin: | China |
Brand Name: | FZ |
Certification: | CE, ISO |
Model Number: | DNW-25Q |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic films or can be customized. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Max. Mesh Length: | 50m | Automation Degree: | Full Automatic |
---|---|---|---|
Certification: | CE, ISO | Producton Capacity: | 30 Sets/Month |
Voltage: | 220V/380V 50HZ | Control System: | PLC |
Cooling Method: | Water Cooling | Warranty: | 1 Year |
Power: | CNC | Material: | Q235,Stainless Steel |
High Light: | Water Cooling Q235 Roll Welding Machine,Q235 Roll Welding Machine,Q235 Rolling Cold Welding Machine |

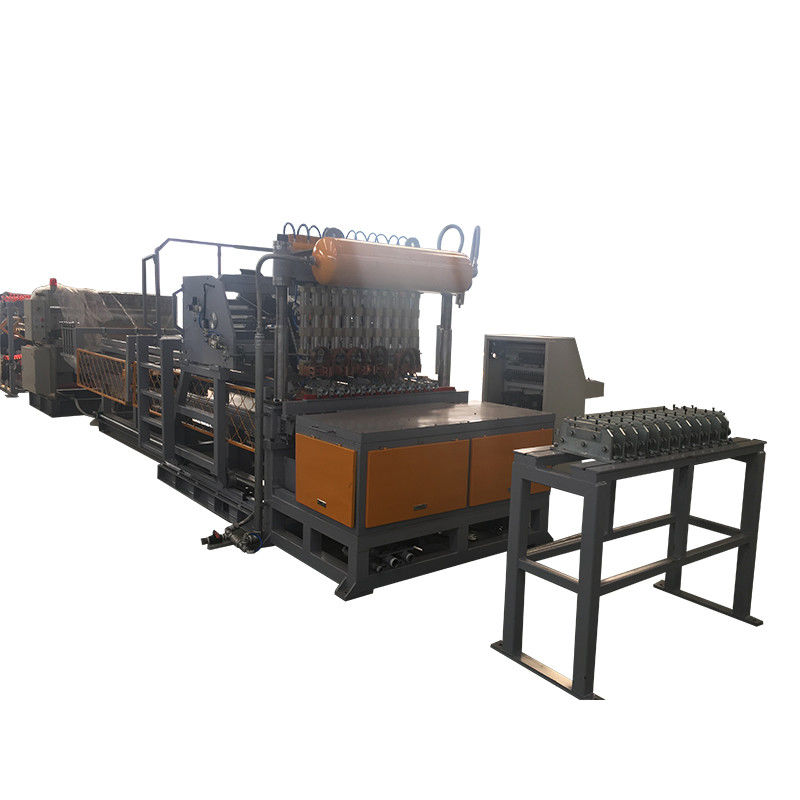

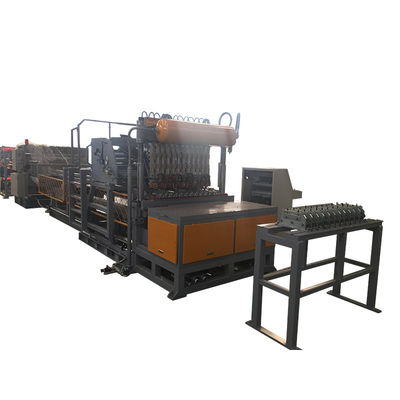

CNC Steel Automatically Roll Welded Wire Mesh Machine
when the wire diameter ≤5mm, we can make the mesh spacing 50*50 or 100*100 or the other you need size, to finish all these by the machin in full-automatic, just by the motor roll to finish the mesh roll.
Item | Product type | Parameter | Remark |
1 | Max. welding capacity | ¢6+6mm | |
2 | Long wire diameter | ¢3-6mm | |
3 | Cross wire diameter | ¢3-6mm | |
4 | Long wire feeding method | In coil | |
5 | Cross wire feeding method | In pre-cut | |
6 | Long wire spacing | ≥50mm | Mechanically adjustments |
7 | Cross wire spacing | ≥50mm | Programming adjustments |
8 | Length range of wire mesh | ≤50000mm | Adjustable |
9 | Width range of wire mesh | ≤2500mm | Adjustable |
10 | Number of welding spot | 51PCS | |
11 | Working speed max. | 40-60times/min |
Welding forming mesh, the motor of 50m Length Automatically Roll Mesh Welding Machine gives the roll power, the mesh is rolled, the whole mesh is finished, one end of the 50m Length Automatically Roll Mesh Welding Machine is opened, and the other end is automatically rolled out by 50m Length Automatically Roll Mesh Welding Machine.
the workin process is full-auto, that will save 1-2 persons for the mesh roll, the roll mesh machine also can make the panel mesh for your need according different wire diameter,
