Place of Origin: | China |
Brand Name: | FZ |
Certification: | CE |
Model Number: | DNW-13J |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic films or can be customized. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Type: | Multi Point Numerical Control Wire Mesh Welding Machine | Voltage: | 220V/380V/415V/440V |
---|---|---|---|
Key Selling Points: | Full Automatic | Color: | Grey& Yellow Or Can Be Customized |
Usage: | Chicken Cage Mesh | Lead Time: | 30 Days |
Welding Method: | Mechanical Push Down | Automation Degree: | Full Automatic |
Certification: | CE ISO | Producton Capacity: | 50 Sets/Month |
High Light: | Multi Point Wire Mesh Welding Machine,Numerical Control Wire Mesh Welding Machine,Numerical Control Multi Spot Welding Machine |

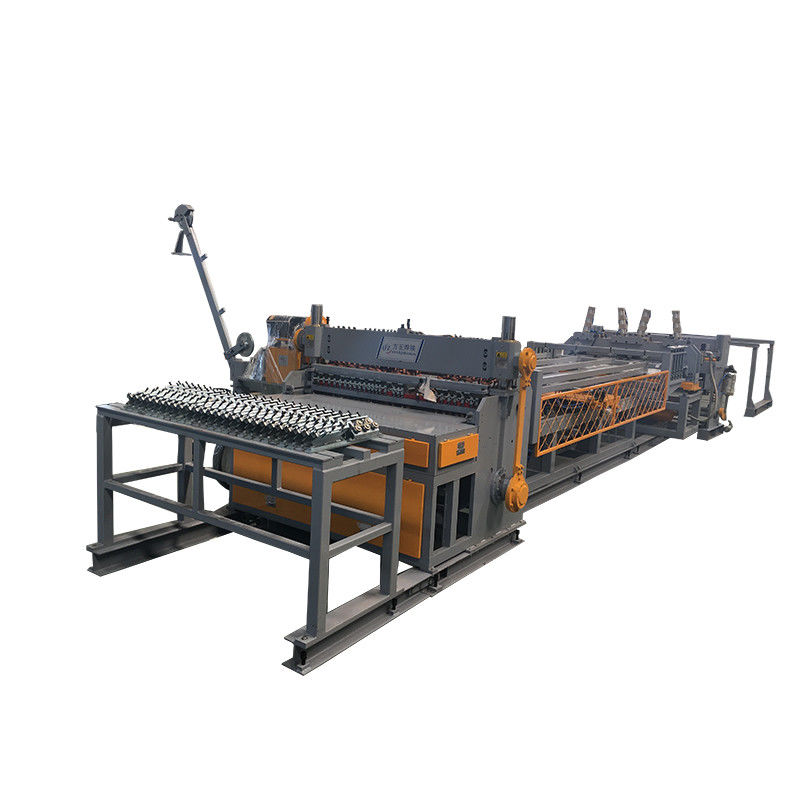

Multi Point Numerical Control Wire Mesh Welding Machine
Multi Point Numerical Control Wire Mesh Welding Machine is a low cost metal mesh welding machine, its excellent configuration and ultra-low power consumption bring economic, cost-effective production plans to Multi Point Numerical Control Wire Mesh Welding Machine users worldwide. Multi Point Numerical Control Wire Mesh Welding Machine adopts the unique welding mode, the servo drive of well-known brands, and the automatic way of loading and feeding, it deeply loved by hundreds of users.
Purely compare the price of the Multi Point Numerical Control Wire Mesh Welding Machine from different companies, it couldn’t show the value. And FZ company will not reduce the quality to improve the price competitiveness. At present, our manufacturing equipment has reached the leading level of our industry, and almost none of peers can match the automation capability of FZ Multi Point Numerical Control Wire Mesh Welding Machine. Our Multi Point Numerical Control Wire Mesh Welding Machine adopts internationally known control system, so the same manufacturers in China can't compare with us.
Welding method | Mechanical push down | |
Control method | PLC programming control | |
Welding control | Each transformer has independent microcomputer control | |
Transformer power | 125KVA*5 set | |
The Allowed Fluctuation Range for External Power | ±10% | |
Voltage | 380V 3phase 50HZ | Can be customize |
Compressor | 0.6-0.8mpa | |
cooling method | Water cooling | |
Equipment color | Silver ash, lemon yellow | |
Material |
low carbon cold drawn wire, galvanized wire; Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture |
This device of Multi Point Numerical Control Wire Mesh Welding Machine will cut the coil wire into straightening long wires. Under the control of the Multi Point Numerical Control Wire Mesh Welding Machine procedure, servo motor will send the cross wire from the storage rack into the straightening device of Multi Point Numerical Control Wire Mesh Welding Machine to the position between electrodes while the steel wire will be automatically straightened and cut through the rapidly rotating roller. The Multi Point Numerical Control Wire Mesh Welding Machine welding beam will push down to finished the welding process, recycling with this until one piece of mesh is finished;the wire feeding is smooth, rapid and accurate.
