Place of Origin: | China |
Brand Name: | FZ |
Certification: | CE, ISO |
Model Number: | DNW-33Q |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic films or can be customized. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Max. Mesh Length: | 50m | Automation Degree: | Full Automatic |
---|---|---|---|
Certification: | CE, ISO | Producton Capacity: | 30 Sets/Month |
Voltage: | 220V/380V 50HZ/60HZ | Control System: | PLC |
Cooling Method: | Water Cooling | Warranty: | 1 Year |
Power: | CNC | Material: | Q235,Stainless Steel |
Max Welding: | 12mm+12mm | Wire Diameter: | 6-12mm |
High Light: | Stainless Steel 50m Welded Wire Mesh Machine,50m Welded Wire Mesh Machine,50m Weld Mesh Machine |

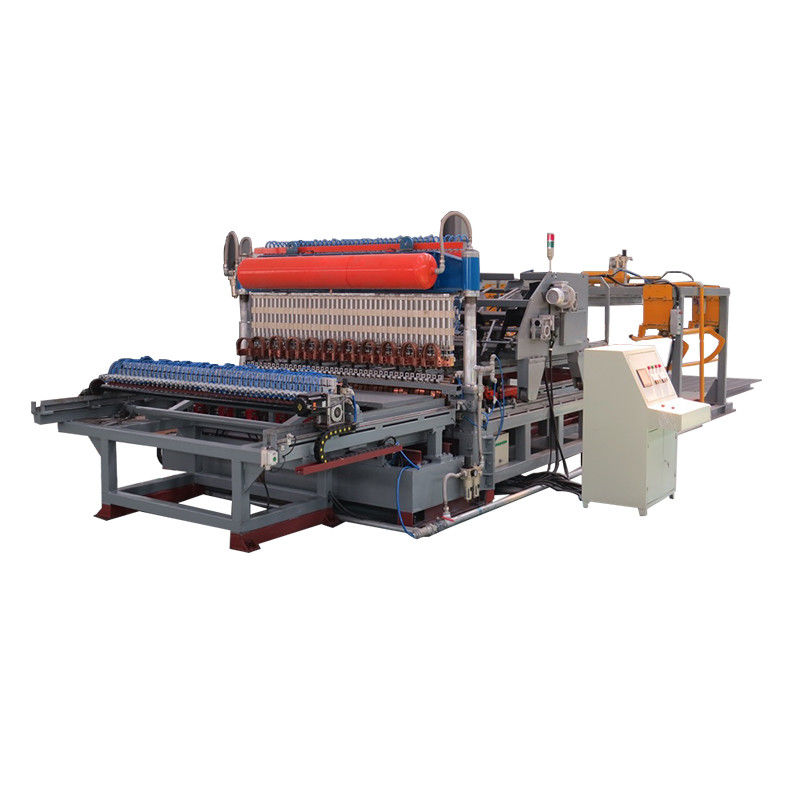

Construction Building Welded Wire Mesh Machine
In order to meet the needs of your business development, reduce labor costs and improve production efficiency, Founder Company has customized the following equipment according to your current situation and needs to meet the efficient production of metal mesh.
Item | Product type | Parameter | Remark |
1 | Max. welding capacity | ¢12+12mm | |
2 | Long wire diameter | ¢6-12mm | |
3 | Cross wire diameter | ¢6-12mm | |
4 | Long wire feeding method | In pre-cut | |
5 | Cross wire feeding method | In pre-cut | |
6 | Long wire spacing | ≥50mm | Mechanically adjustments |
7 | Cross wire spacing | ≥50mm | Programming adjustments |
8 | Length range of wire mesh | ≤50000mm | Adjustable |
9 | Width range of wire mesh | ≤3300mm | Adjustable |
10 | Number of welding spot | 51PCS | |
11 | Working speed max. | 40-60times/min |
The equipment adopts high-speed pressure cylinder to press down welding, and the welding pressure is even, making the welding point more firm.
2. The welding electrode head is made of high quality pickaxe chrome bronze material, and adopts water circulation cooling mode, which is more wear-resistant, better conductivity, longer service life, and lower production cost of users. It is the best material as resistance welding electrode.
3. The welding gas storage device is equipped with air filter and oil pollution filter device, which can greatly improve the service life of the pneumatic components of the equipment.
4. The enhanced design of welding transformer, which is cooled by water circulation, can meet the requirements of high-speed continuous welding and ensure the long-term operation without heating welding effect.
