Place of Origin: | China |
Brand Name: | FZ |
Certification: | CE |
Model Number: | GT12 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic films or can be customized. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100 sets per month |
Type: | High Speed 5-12mm Wire Straightening And Cutting Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
---|---|---|---|
Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 5-12mm |
Welding Speed: | 70-120m/min | Lead Time: | 20 Days |
Certification: | CE ISO | Producton Capacity: | 100 Sets/Month |
Voltage: | 220V/380V/415V/440V | Control System: | PLC |
High Light: | 0.7Mpa Wire Straightening and Cutting Machine,220V Wire Straightening and Cutting Machine,220V Wire Straightening Cutting Machine |

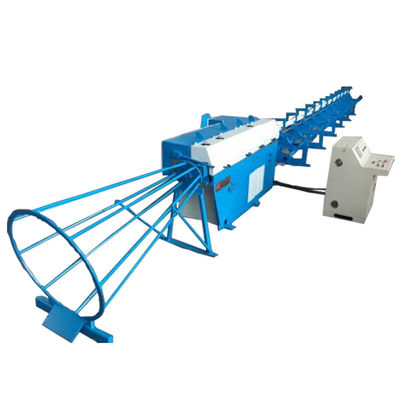

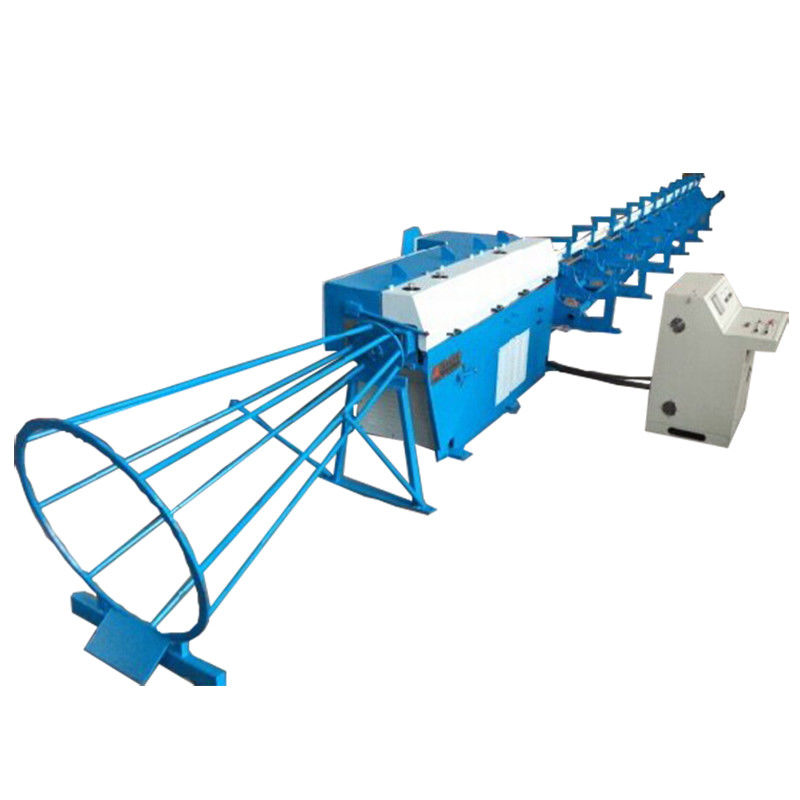

High Speed 5-12mm Wire Straightening And Cutting Machine
In order to meet the needs of your business development, reduce labor costs and improve production efficiency, Fangzheng Company will customize the High Speed 5-12mm Wire Straightening And Cutting Machine in combination with your existing conditions and needs to meet the efficient production.
The conditions the High Speed 5-12mm Wire Straightening And Cutting Machine buyer should have when installing:
1) provide the power supply of 380V/50Hz for High Speed 5-12mm Wire Straightening And Cutting Machine;
2) provide the air compressor: the air supply of a single machine should not be lower than 0.9m³/min; the lowest pressure of air supply is 0.7Mpa.
3) make the foundation according to the ground plot from the High Speed 5-12mm Wire Straightening And Cutting Machine seller.
No. | Name | Parameters |
1 | Wire diameter | 5.0-12.0mm |
2 | Straightening length | 1000-12000mm |
3 | Cutting error | <±1mm |
4 | Straightening speed | 70-120m/min |
5 | Straightness | <2mm/m |
6 | Material | Cold drawn wire,Galvanized wire |
7 | Voltage fluctuation range | ±10% |
8 | Voltage | 380V 50HZ |
Notes to the High Speed 5-12mm Wire Straightening And Cutting Machine user:
1 . The High Speed 5-12mm Wire Straightening And Cutting Machine user must do the operation and maintenance in strict accordance with the equipment manual.
2 . Prepare the site for High Speed 5-12mm Wire Straightening And Cutting Machine installation must be according to the requirements
3 . Supply power and gas according to the High Speed 5-12mm Wire Straightening And Cutting Machine requirements.
4 . Users are required to provide technical staff to assist in the installation, during installation, users need to install the High Speed 5-12mm Wire Straightening And Cutting Machine provided free of charge auxiliary equipment.
5 . The High Speed 5-12mm Wire Straightening And Cutting Machine should be used in the workshop; the work environment will directly affect the performance and service life of the equipment.
