Place of Origin: | China |
Brand Name: | FZ |
Certification: | CE |
Model Number: | DNW-25Q |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic films or can be customized. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Type: | Concrete Reinforcing Bar Wire Mesh Welding Machine | Wire Diameter Range: | 3-6mm |
---|---|---|---|
Mesh Hight: | 500-2500mm | Mesh Hole Size: | 50*50mm |
Welding Speed: | 40-60 Times/min | Weight: | 18 Tons |
Voltage: | 220V/380V/415V/440V | Control System: | PLC |
Cooling Method: | Water Cooling | Warranty: | 1 Year |
High Light: | PLC Control Wire Mesh Welding Machine,18 Tons Wire Mesh Welding Machine,PLC Control Reinforcing Mesh Welding Machine |

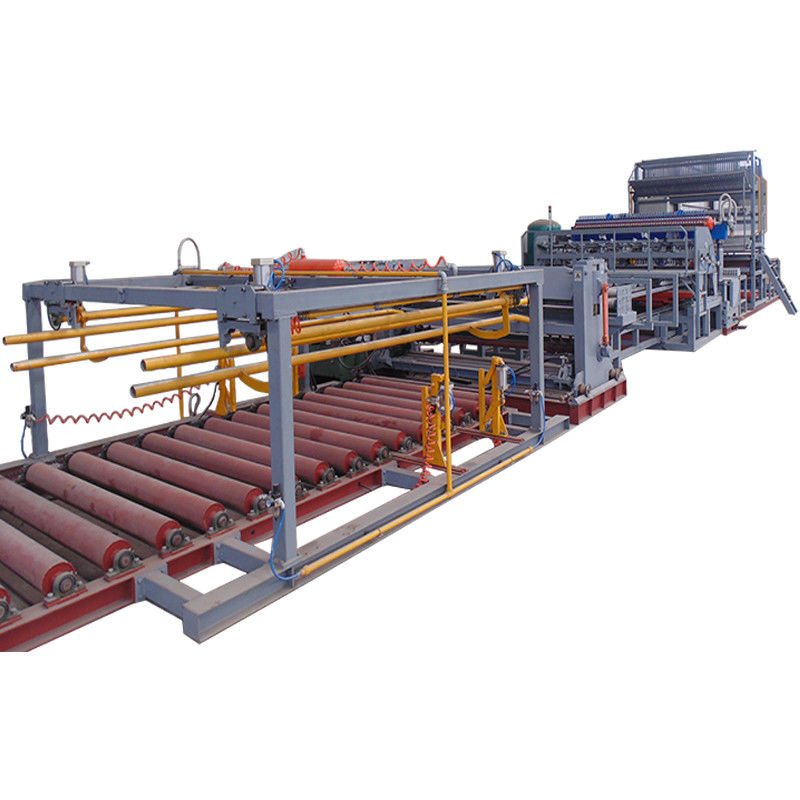

Concrete Reinforcing Bar Wire Mesh Welding Machine
Concrete Reinforcing Bar Wire Mesh Welding Machine for welding thick wire, the line wire adopt feeding in coil, FZ welding company aiming at this kind of machine, the line wire storage and feeding device is designed and manufactured, it can increase wire feed speed of Concrete Reinforcing Bar Wire Mesh Welding Machine, ensure the high-speed production of Concrete Reinforcing Bar Wire Mesh Welding Machine. The efficiency of Concrete Reinforcing Bar Wire Mesh Welding Machine has been raised by twenty to thirty percent.
FZ welding company produces Concrete Reinforcing Bar Wire Mesh Welding Machine spare parts are used internationally renowned brands, this is to prevent the Concrete Reinforcing Bar Wire Mesh Welding Machine breakdown caused by the accessories, ensure the normal operation of the Concrete Reinforcing Bar Wire Mesh Welding Machine. Because FZ welding company produces a larger number of welding machine, so sign an agreement with the parts supplier, we assure you that the parts are sufficient so that provide them in time.
Working speed max. | 40-60times/min | |
Welding method | Pneumatic push down | |
Control method | PLC programming control | |
Welding control | Each transformer has independent microcomputer control | |
Transformer power | 150KVA*9 set | |
The Allowed Fluctuation Range for External Power | ±10% | |
Voltage | 380V 3phase 50HZ | Can be customize |
Compressor | ≦0.8mpa | |
cooling method | Water cooling | |
Equipment color | Silver ash, lemon yellow | |
Material |
low carbon cold drawn wire, galvanized wire; Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture |
This device of Concrete Reinforcing Bar Wire Mesh Welding Machine is the core part of the whole line. It is mainly to weld the meshes at a high speed by cooperating closely with others device of Concrete Reinforcing Bar Wire Mesh Welding Machine.
The welding electrodes head of Concrete Reinforcing Bar Wire Mesh Welding Machine use high-quality materials, which make them more wearable and with better conductive, and also have a long life, reduce production costs for Concrete Reinforcing Bar Wire Mesh Welding Machine users.
The improvement of design of Concrete Reinforcing Bar Wire Mesh Welding Machine welding transformers meets the demand to weld continuously wires of 6+6mm at a high speed at the moment when saving energy.
51 electrodes on Concrete Reinforcing Bar Wire Mesh Welding Machine adopt circulating water cooling, which extends their service lives, and ensures the long-term operation of the equipment.
