| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | GT-3 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 sets per month |
| Type: | CNC 2-3.5mm High Speed Wire Straightening And Cutting Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 2-3.5mm |
| Welding Speed: | 100-120m/min | Machinery Test Report: | Provided |
| Lead Time: | 30 Days | Automation Degree: | Full Automatic |
| Certification: | CE ISO | Producton Capacity: | 100 Sets/Month |
| Voltage: | 220V/380V/415V/440V | Control System: | PLC |
| Highlight: | CNC Wire Straightening and Cutting Machine,High Speed Wire Straightening And Cutting Machine |
||

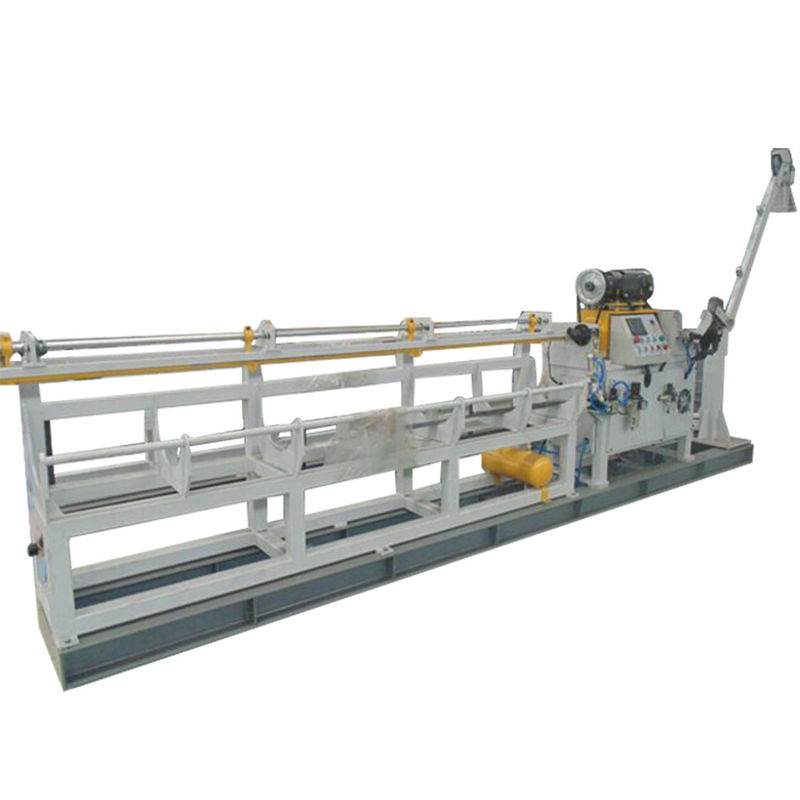

CNC 2-3.5mm High Speed Wire Straightening And Cutting Machine
Wire Straightening and Cutting Machine is one of our main products, it is cost-effective, high precision, fast speed.
Straightening mould of High Speed Wire Straightening And Cutting Machine is alloy material, after special treatment, durable, so that the straightened wire scratch (slight thread scratch) will not damage the surface of the wire.
High Speed Wire Straightening And Cutting Machine Control: control cabinet and operation integrated, PLC programming control, touch screen operation interface, can be memory specifications, shear length for the set length, non-top shear. Overall make the operation more humanized, more convenient adjustment.
| No. | Name | Parameters |
| 1 | Wire diameter | 2.0-4.0mm |
| 2 | Straightening length | 200-2000mm |
| 3 | Cutting error | ＜±1mm |
| 4 | Straightening speed | 60-120m/min |
| 5 | Straightness | ＜2mm/m |
| 6 | Material | Cold drawn wire,Galvanized wire |
| 7 | Voltage fluctuation range | ±10% |
| 8 | Voltage | 380V 50HZ |
High efficiency CNC 2-3.5mm High Speed Wire Straightening And Cutting Machine:
1. This CNC 2-3.5mm High Speed Wire Straightening And Cutting Machine for our company one of the main products, its cost-effective, high precision, fast speed.
2. drive mode: the wire feed is driven by servo motor, which ensures CNC 2-3.5mm High Speed Wire Straightening And Cutting Machine speed and precision. The straightening drum is driven by frequency conversion brake motor, which ensures the sensitivity of pause, fast stopping speed and small damage to motor. The cutter is controlled by the cylinder, which ensures the shear strength and saves energy at the same time.
3. for 2-3.5 mm filament diameter, there will never be silk running phenomenon for CNC 2-3.5mm High Speed Wire Straightening And Cutting Machine.
4. CNC 2-3.5mm High Speed Wire Straightening And Cutting Machine control: control cabinet and operation integrated, PLC programming control, touch screen operation interface, can specification memory, Shear length is set length, non-top shear. Overall of CNC 2-3.5mm High Speed Wire Straightening And Cutting Machine make the operation more humanized, more convenient adjustment.
5. straightening mother on CNC 2-3.5mm High Speed Wire Straightening And Cutting Machine is alloy material, after special treatment, durable, so that the straightened wire scratch small (slight thread scratch) will not damage the surface of the wire.
