| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE,ISO |
| Model Number: | GT4-8 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | discuss |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 40days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 20 sets /month |
| Voltage:: | 380V/440V 3 Phase | Cutting Length:: | 500-1200mm（adjustable） |
|---|---|---|---|
| Wire Diameter Range: | 4-8mm | Straightening Speed:: | 70-120m/minute |
| Core Components:: | PLC, Gearbox, Motor, Pressure Vessel, Gear, Touch Screen, | Warranty Of Core Components:: | 1 Year |
| Products Name:: | CNC Straightening Cutting Steel Wire Machine | Weight: | 1800kg |
| Highlight: | 3 phase straightening and cutting machine,cnc straightening and cutting machine,380v wire straightening cutting machine |
||

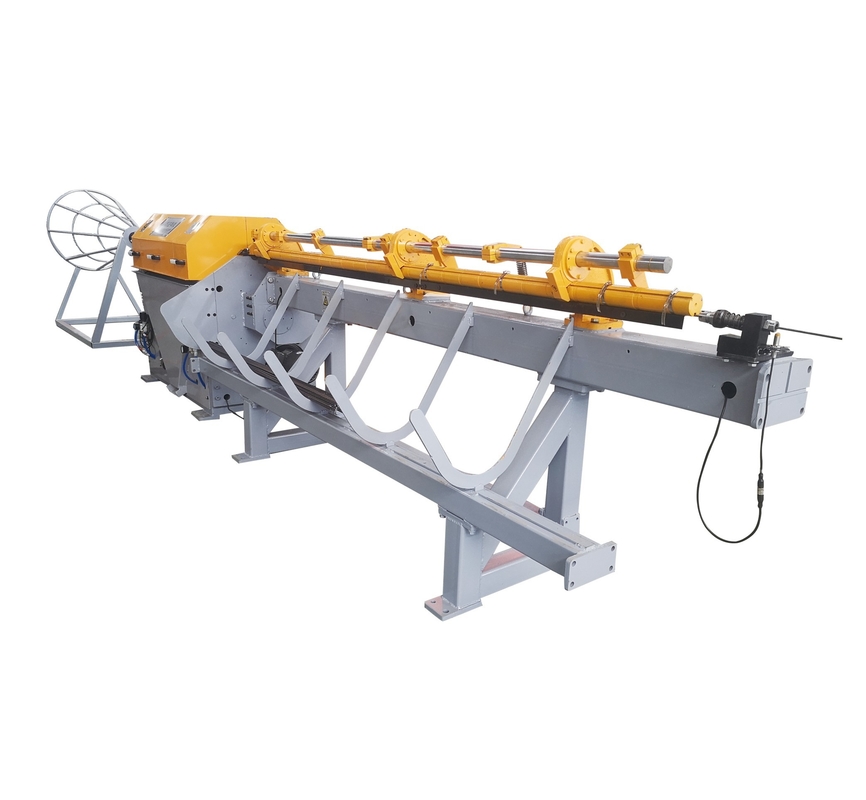

Steel Bar Diameter 4-8mm Wire Straightening And Cutting Machine
keyword
Wire Straightening And Cutting Machine
Wire Straightening Machine
Straightening And Cutting Machine
Wire Straightening Cutting Machine
Automatic Wire Straightening And Cutting Machine
Wire Rod Straightening And Cutting Machine
Wire Straightener And Cutter
Steel Wire Straightening Machine
Rod Straightening And Cutting Machine
Straightening Wire Machine
Wire Rod Straightening Machine
Features of high efficiency CNC straightening machine:
1. This straightening machine is one of the main products of our company, with high cost performance, high precision and fast speed.can be set for 3 different working speed. high speed ,middle speed and slow speed, that can according your material to chooise.
2. Control: integrated control cabinet and operation, PLC programming control, touch screen operation interface, can memory specifications, making the operation more humanized and adjustment more convenient.
3The welding length error can make in＜±2mm. then some of your welding work dont need cut the edge wire anymore.tha will be high effiction.
| NO. | NAME | PARAMETER |
| 1 | Wire diameter | 4.0-8.0mm |
| 2 | Length | 500-1200mm(adjustable) |
| 3 | Length error | ＜±2mm |
| 4 | Speed | 60-120m/min |
| 5 | Straightenss | ＜±2mm/m |
| 6 | Material | Q235,Q195,Galvanized wire |
| 7 | Cutting knife material | Alloy |
| 8 | Feed motor power | 4.5KW |
| 9 | Motor power of shuttle | 4KW |
| 10 | Power supply voltage | 380V 3Phas 50Hz |
| 11 | Air pressure | 0.6-0.8mpa |
| 12 | Equipment size | 7520*1200*1500 |
| 13 | Color | Gray,Yellow |
