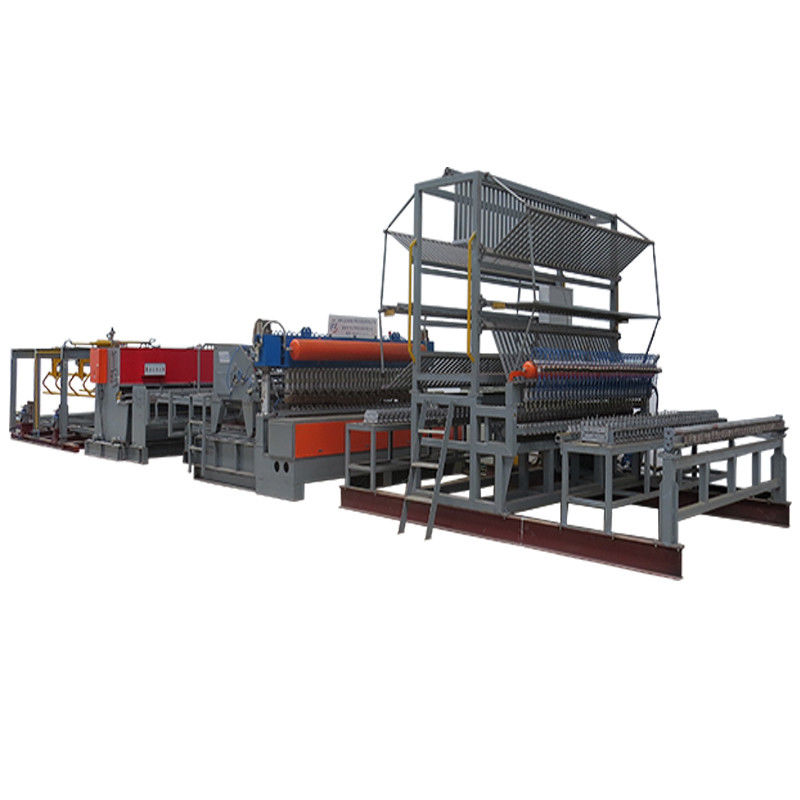

150KVA Fence Mesh Welding Machine

150KVA Fence Mesh Welding Machine

  • 150KVA Fence Mesh Welding Machine
150KVA Fence Mesh Welding Machine
Product Details:
Place of Origin: China
Brand Name: FZ
Certification: CE, ISO
Model Number: DNW-25Q
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Plastic films or can be customized.
Delivery Time: 60days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 10 sets /month
Contact Now
Detailed Product Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Field Maintenance And Repair Service,Video Technical Support,Field Installation Warranty: 1 Year
Wire Diameter: 3-6mm Welding Speed: 40-60times/min
Weight: 3.5T Color: Gracy And Yellow
Rated Capacity: 150KVA*6 Usage: Product Fence For Protect Highway And Railway
Mesh Width: Max 3000mm Rated Voltage: 380V/415V,50Hz
Name: Fence Machine Control System: PLC+Touch Screen
Cross Wire Space: 50-200mm Long Wire Spcaing:: ≥50mm
Highlight:

150KVA Fence Mesh Welding Machine

,

3.5T Fence Mesh Welding Machine

,

Full Auto 3D Fence Welding Machine

Full-Auto High Efficiency Width 1-3m Fence Welding Machine



1) The equipment adopts PLC programming control, and with humanized operation interface, which makes it easy to operate and master.
2) The adjustment of mesh specifications adopts LCD touch screen, which makes it very easy to set all the production datum.
3) Both the operating system and numerical control servo system adopt international known brands. ( they have the international safety certification through testing and inspecting technically) They can ensure that equipment can be steady, secure and sensible to meet the welding requirement at a high speed.
4) Servo motor is controlled by pulse, which makes the grid error reduce to 0.1mm
5) The guide adopts linear rails, used with servo control together, which greatly improves accuracy of mesh.



Product type DNW-2500QFull-auto High-efficiency Type
Working speed max. 40-60Times/Min.
Width range of wire mesh ≤ 2500mm
Length range of wire mesh ≧1000mm
Longitudinal wire spacing ≧100mm variable from mm it can be adjusted
Cross wire spacing ≧50mm Freely programming adjustments
Cross wire diameter 4-8mm
Max. welding capacity 8+8mm
Welding wire material

low carbon steel galvanized wire; cold drawn wire;

Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture

Number of max. welding spot 51PCS/ROW
Longitudinal wire feeding method In coil/auto-feeding
Cross wire feeding method In coil/auto-blanking
Control method PLC programming control, servo stepper system
Transformer power 160KVA*9 Cooling water: each transformer has a separate microcomputer
The Allowed Fluctuation Range for External Power ±10%
Air consumption pressure 0.6-0.8Mpa 3.4m³/minute
