| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-30Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | High Welding Speed And Flatness Fence Mesh Welding Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 3-6mm |
| Mesh Hight: | ≤3000mm | Mesh Hole Size: | 50*200mm |
| Welding Speed: | 40-60 Times/min | Voltage: | 220V/380V/415V/440V |
| Key Selling Points: | Numerical Control | Color: | Grey & Yellow Or Can Be Customized |
| Certification: | CE | Producton Capacity: | 50 Sets/Month |
| Highlight: | high flatness fence mesh welding machine,3mm fence mesh welding machine,fence mesh welding machine 380v |
||

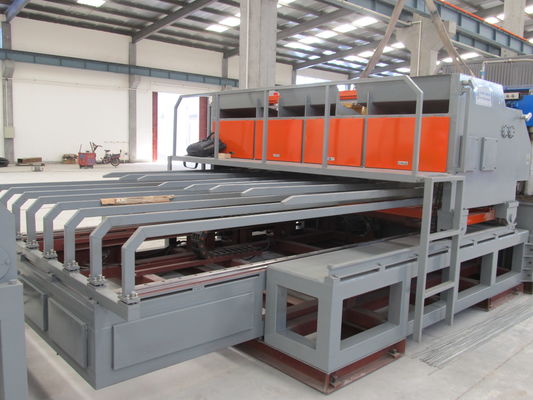

High Welding Speed And Flatness Fence Mesh Welding Machine
The welding adopts new high efficiency welding mesh transformer, the voltage regulation range is wide, the single time can be welded three times, the welding wire diameter range is enlarged, and the quality of solder joint is improved.
In order to adapt to the capacity of the main power transformer and reduce the current shock, the welding power electronic control adopts the method of one-time welding sub-control power transmission, that is, when welding the same row of cross wire, the welding transformer is operated separately.
The welding power electronic control system adopts synchronous control technology, welding time and sub-control welding are controlled by single chip microcomputer, the control precision is high and the performance is stable.
Application field: this type of machine is mainly used for welding guardrail net (highway, railway, Weishan), fence net, bridge, pavement, floor pouring roof net, coal mine support, etc. The length of the net is normally not more than 15 m (stated at the time of order if the customer has special requirements). The main parameters are as follows:(For example,1300mm width)
| No. | Item Name | Parameter | Note |
| Power condition | Voltage and Frequency | 380V 3phase 50HZ |
Intelligent circuit breaker is not suggested the distance to the transformer≦50m |
| Outer voltage range | ±10% | ||
| Outer transformer | 150KVA | ||
| Cable specification | 120mm²*3 Pin Cooper wire | ||
| Air condition | Air compressor | Screw type |
0.6-0.8mpa Distance 3m |
| Air production | 1m³/min | ||
| Air tank capacity | 1m³ | Around machine | |
| Cooling | Water pool capacity | 1m³ | Clean water for industry |
| Lifting distance ,Water pressure |
0.2-0.3mpa 25-30m Lifting |
The wires from coils are firstly straightened through this device in order to ensure that welding mesh will be more even. It is essential to the whole line.
There are 30PCS longitudinal wire straightening unit, each unit has 5pcs wheels, it fits for straitening wire diameter 1-2 mm.
Each unit has the special structure and the distance among each wheel is calculated accurately. So it can straighten different materials such as galvanizing wires, cold-rolled ribbed wires, low-carton black wires, etc.
Each straightening unit adopts tungsten steel as the material; the overall is with high wear resistance.
