Place of Origin: | China |
Brand Name: | FZ |
Certification: | CE |
Model Number: | DNW-13J |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic films or can be customized. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Type: | Energy Saving Automatic Breed Cages Chicken Mesh Welding Machine | Wire Diameter Range: | 2-3.mm |
---|---|---|---|
Voltage: | 220V/380V/415V/440V | Key Selling Points: | Full Automatic |
Color: | Grey& Yellow Or Can Be Customized | Usage: | Chicken Mesh |
Lead Time: | 15 Days | Automation Degree: | Full Automatic |
Certification: | CE ISO | Producton Capacity: | 50 Sets/Month |
Cooling Method: | Water Cooling | Warranty: | 1 Year |
Highlight: | Energy Saving Cage Welding Machine,440V Cage Welding Machine,440V Automatic Mesh Welding Machine |

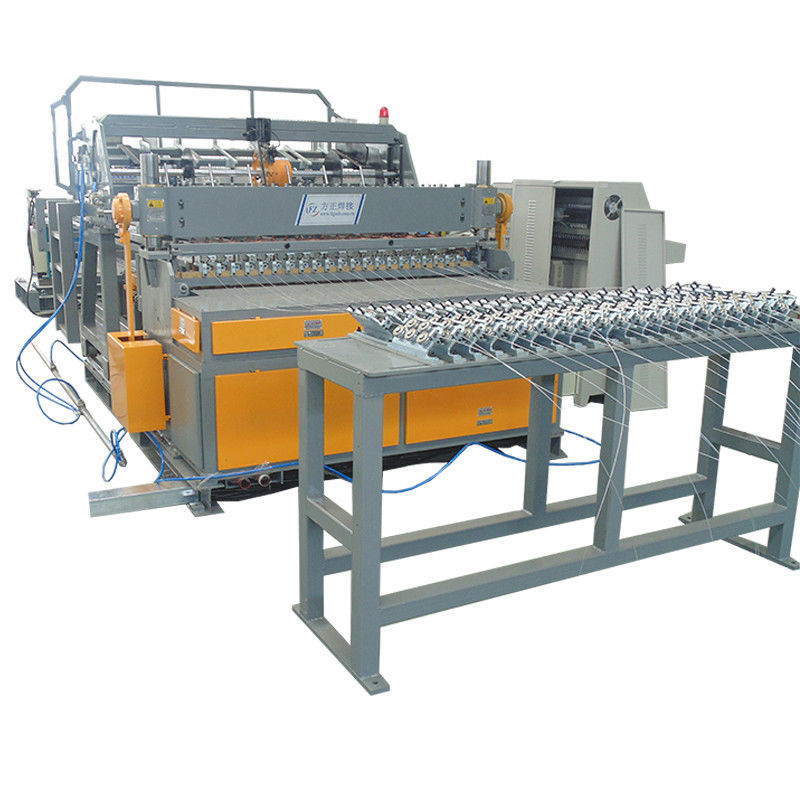

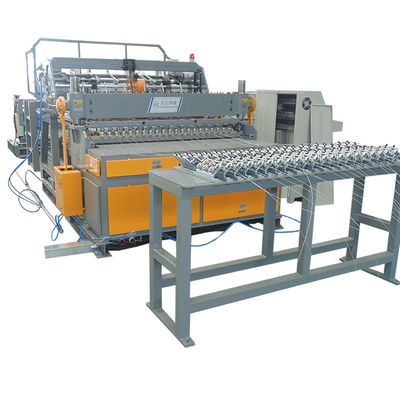

Energy Saving Automatic Breed Cages Chicken Mesh Welding Machine
FZ company Energy Saving Automatic Breed Cages Chicken Mesh Welding Machine weld the mesh with high quality welding spots, multiple mission can be handled in different time, to ensure the welding quality; The welding pressure of Energy Saving Automatic Breed Cages Chicken Mesh Welding Machine can be variable adjusted to ensure the welding of various diameter steel mesh; The control system also has the equipment self-diagnosis function and the security protection system, can display the equipment working condition dynamically.
FZ company Energy Saving Automatic Breed Cages Chicken Mesh Welding Machine has successfully applied in many large enterprise, and exported to Russia, Canada, the Middle East, North America and other countries and regions, producing remarkable economic benefits and social benefits. FZ has a professional team of technical r&d, production and service, with a ability to provide comprehensive technical support and technical advice to customers all over the world. In the future, FZ will continue to make efforts to move forward in the world.
Item | Product type | Parameter | Remark |
1 | Max. welding capacity | ¢ 2-3.5mm | |
2 | Long wire diameter | ¢2-3.5mm | |
3 | Cross wire diameter | ¢2-3.5mm | |
4 | Long wire feeding method | In coil | |
5 | Cross wire feeding method | In coil | |
6 | Long wire spacing | ≥50mm | Mechanically adjustment |
7 | Cross wire spacing | ≥25mm | Programming adjustments |
8 | Length range of wire mesh | 300-4000mm | Adjustable |
9 | Width range of wire mesh | 500-1300mm | Adjustable |
10 | Number of welding spot | 27PCS | |
11 | Working speed max. | 50-70times/min |
This device on Energy Saving Automatic Breed Cages Chicken Mesh Welding Machine can drag finished meshes so that meshes can be cut and stacked smoothly. It is also the necessary part in the whole line.
Energy Saving Automatic Breed Cages Chicken Mesh Welding Machine mesh traction adopts brand CNC servo system control.
Energy Saving Automatic Breed Cages Chicken Mesh Welding Machine traction device is equipped with pneumatic clamping bodies, it can tight grip the cross wire when mesh traction, which effectively improve the accuracy of the mesh.
Using the gear and the rack drive, the Energy Saving Automatic Breed Cages Chicken Mesh Welding Machine transmission efficiency is perfect.
Cross wire spacing can be designed freely in the operating interface, and the operation is very simple, which can meet a variety of mesh spacing changes for one mesh, and it can meet the different requirements of customers.
The device of Energy Saving Automatic Breed Cages Chicken Mesh Welding Machine with the function of safety protection can avoid the troubles when machine is working or cause of wrong operation by worker.
