| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-13J |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Automatic Multi-Point Spot Chicken Mesh Making Machine | Voltage: | 220V/380V/415V/440V |
|---|---|---|---|
| Key Selling Points: | Automatic | Color: | Grey& Yellow Or Can Be Customized |
| Usage: | Chicken Mesh | Lead Time: | 15 Days |
| Welding Method: | Mechanical Push Down | Automation Degree: | Full Automatic |
| Certification: | CE ISO | Producton Capacity: | 100 Sets/Month |
| Highlight: | Multi Point Spot Chicken Mesh Making Machine,ISO Chicken Mesh Making Machine,ISO Multi Point Spot Welding Machine |
||

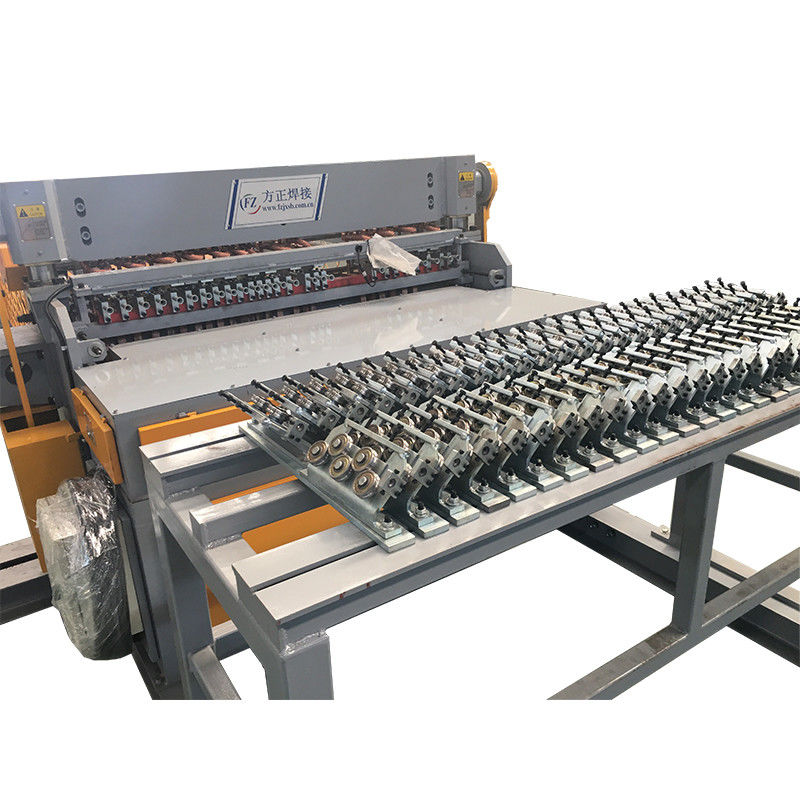

Automatic Multi-Point Spot Chicken Mesh Making Machine
High speed is the most obvious feature of the Automatic Multi-Point Spot Chicken Mesh Making Machine. Normally speed of the pneumatic Automatic Multi-Point Spot Chicken Mesh Making Machine is 50-80rows/min, and mechanical Automatic Multi-Point Spot Chicken Mesh Making Machine can weld 70-90rows/min. The welding electricity controlled by separate micro-computer. Once pressure with several times of welding, reduce the pressure of the outside transformer and save the electricity. Customers can set 17 data by welding control cabinet, that can control the quality of the welded mesh, make sure the mesh with firmed welding spots, and that is the majority of customers’ concerned problem.
Welcome to visit our website and look through of our Automatic Multi-Point Spot Chicken Mesh Making Machine product information. I think you will find suitable Automatic Multi-Point Spot Chicken Mesh Making Machine in our factory. Please feel free to contact us for the quotation and all information you wonder. We are a professional manufacturer of Automatic Multi-Point Spot Chicken Mesh Making Machine, we will be believe we can provide you with the best price, strong technical support, and good after-sales service.
We will together with you for the model selection, and quote you our best offer. We will try our best to make you satisfied.
| Welding method | Mechanical push down | |
| Control method | PLC programming control | |
| Welding control | Each transformer has independent microcomputer control | |
| Transformer power | 125KVA*5 set | |
| The Allowed Fluctuation Range for External Power | ±10% | |
| Voltage | 380V 3phase 50HZ | Can be customize |
| Compressor | 0.6-0.8mpa | |
| cooling method | Water cooling | |
| Equipment color | Silver ash, lemon yellow | |
| Material |
low carbon cold drawn wire, galvanized wire; Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture |
|
This device of Automatic Multi-Point Spot Chicken Mesh Making Machine will cut the coil wire into straightening long wires. Under the control of the Automatic Multi-Point Spot Chicken Mesh Making Machine procedure, servo motor will send the cross wire from the storage rack into the straightening device to the position between electrodes while the steel wire will be automatically straightened and cut through the rapidly rotating roller. The welding beam will push down to finished the welding process, recycling with this until one piece of mesh is finished；the wire feeding is smooth, rapid and accurate.
