| Place of Origin: | CHINA |
| Brand Name: | FZ |
| Certification: | CE ISO |
| Model Number: | DNW-33Q |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 sets /month |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 1 Year |
|---|---|---|---|
| Wire Diameter: | 3-7mm | Welding Speed: | 60-80times/min |
| Usage: | Product Fence For Protect Highway And Railway | Rated Capacity: | 160KVA*8 |
| Product Name: | Automatic Welding Wire Steel Wire Mesh Making Machine | Mesh Width: | Max 2000mm |
| Control System: | PLC+Touch Screen | Cross Wire Space: | 50-200mm Be Adjustable For You |
| Voltage: | 380V/50HZ/Customized | ||
| Highlight: | PLC Control Fence Mesh Welding Machine,3300mm Fence Mesh Welding Machine,PLC Control Mesh Welding Machine |
||

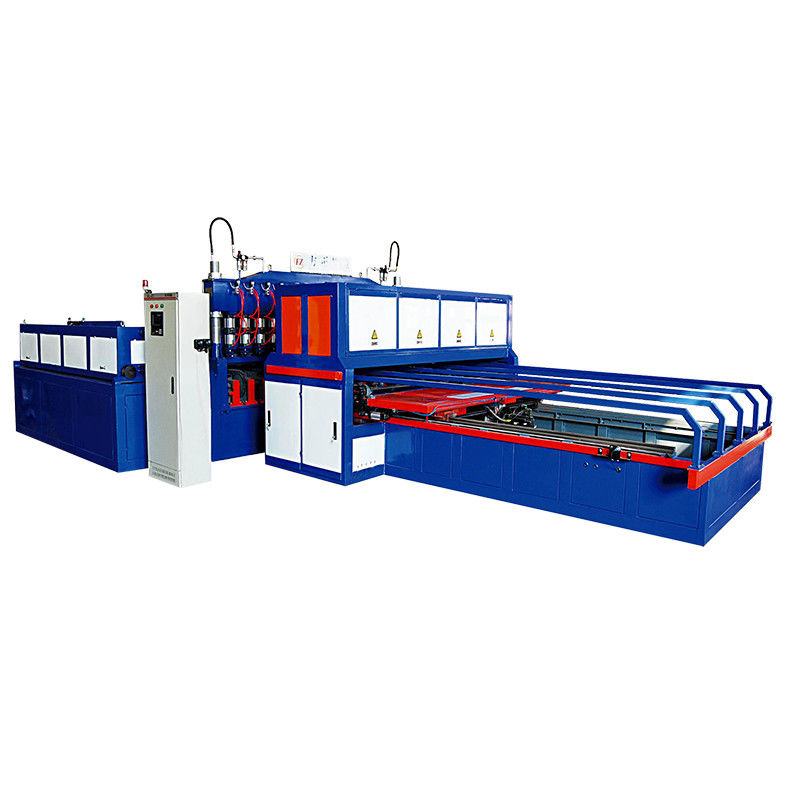

Safe Affordable Applied Fence Mesh Welding Machine
This is the operating system of equipment, which likes the brain of the whole line. Worker operates the equipment with this system. It is necessary.
1) The equipment adopts PLC programming control, and with humanized operation interface, which makes it easy to operate and master.
2) The adjustment of mesh specifications adopts LCD touch screen, which makes it very easy to set all the production datum.
3) Both the operating system and numerical control servo system adopt international known brands. ( they have the international safety certification through testing and inspecting technically) They can ensure that equipment can be steady, secure and sensible to meet the welding requirement at a high speed.
4) Servo motor is controlled by pulse, which makes the grid error reduce to 0.1mm
| Product type | DNW-33 Full-auto Type |
| Working speed max. | 60-80s/Min. |
| Width range of wire mesh | ≤ 3300 |
| Length range of wire mesh | ≧1000mm |
| Longitudinal wire spacing | ≧50mm variable from mm it can be adjusted |
| Cross wire spacing | ≧25mm Freely programming adjustments |
| Cross wire diameter | 3-6mm |
| Max. welding capacity | 6+6mm |
| Welding wire material |
low carbon steel galvanized wire; cold drawn wire; Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture |
| Number of max. welding spot | 61PCS/ROW |
| Longitudinal wire feeding method | pre cut in |
| Cross wire feeding method | pre cut in |
| Control method | PLC programming control, servo stepper system |
| Transformer power | 160KVA*9 Cooling water: each transformer has a separate microcomputer |
| The Allowed Fluctuation Range for External Power | ±10% |
| Air consumption pressure | 0.6-0.8Mpa 3.4m³/minute |
| bending | online bending finished on one time |
