| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-33Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Name: | Steel Concrete Reinforcement Welded Wire Mesh Machine | Mesh Hight: | 500-3300mm |
|---|---|---|---|
| Mesh Hole Size: | 100*100mm | Welding Speed: | 40-60 Times/min |
| Voltage: | 220V/380V/415V/440V | Key Selling Points: | Full-automatic |
| Color: | Grey& Yellow | Usage: | Construction Mesh |
| Lead Time: | 40 Days | Mesh Length: | ≤12000mm |
| Highlight: | construction panel welded wire mesh machine,300mm welded wire mesh machine,300mm automatic wire mesh welding machine |
||

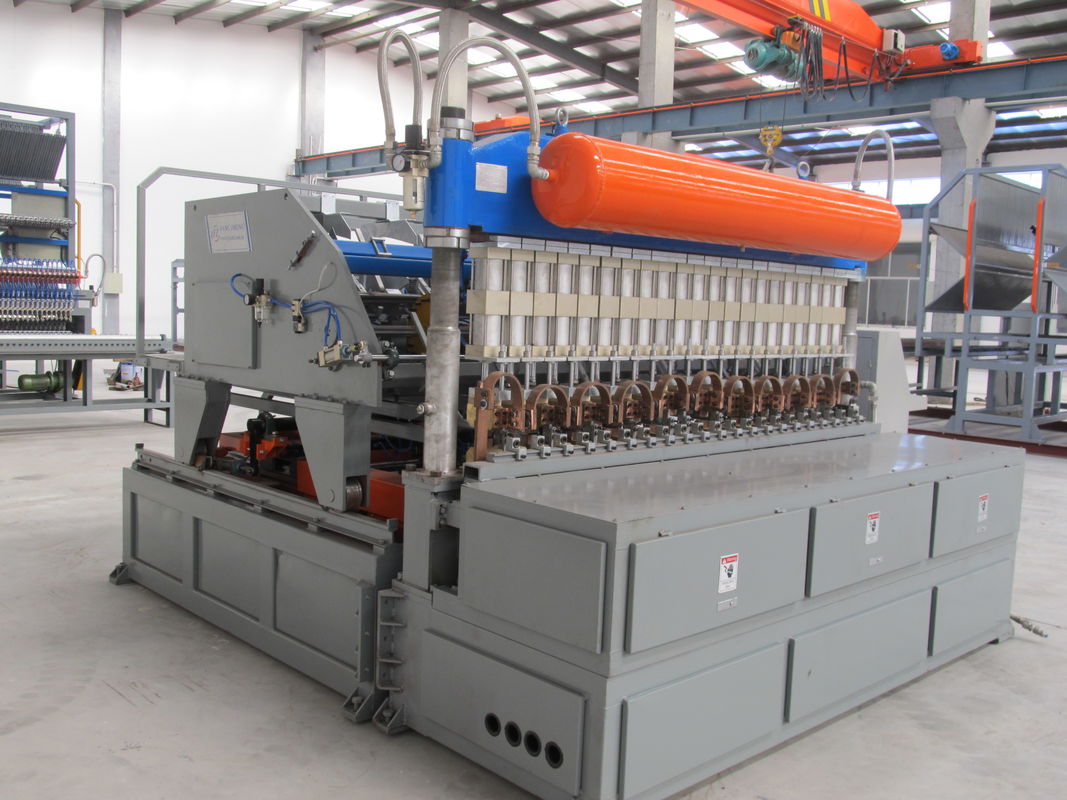

Construction Mesh Panel Welded Wire Mesh Machine
According to the length of the product, the number of knots per product can be set on the control panel according to the need, and the number of knots can only be set in integer times of pitch. The upper chord solder joint can be aligned with the button next to the scissors part. The the motor drive, the steel bar is sent to the rear for welding, and the steel bar is sent to the rear for welding.
| Item | Product type | Parameter | Remark |
| 1 | Max. welding capacity | ¢12+12mm | |
| 2 | Long wire diameter | ¢5-12mm | |
| 3 | Cross wire diameter | ¢5-12mm | |
| 4 | Long wire feeding method | In coil | |
| 5 | Cross wire feeding method | In pre-cut | |
| 6 | Long wire spacing | ≥100mm | Mechanically adjustments |
| 7 | Cross wire spacing | ≥100mm | Programming adjustments |
| 8 | Length range of wire mesh | ≤120000mm | Adjustable |
| 9 | Width range of wire mesh | ≤3300mm | Adjustable |
| 10 | Number of welding spot | 32PCS | |
| 11 | Working speed max. | 40-60times/min |
working progress
1 The wires from coils are firstly straightened through this device of Steel Concrete Reinforcement Welded Wire Mesh Machine in order to ensure that welding mesh will be more even. It is essential to the whole line.
2 There are 33 PCS longitudinal wire straightening unit on Steel Concrete Reinforcement Welded Wire Mesh Machine, each unit has 5pcs wheels, it fits for straitening wire diameter 3-6 mm for Steel Concrete Reinforcement Welded Wire Mesh Machine.
3 Each straightening on Steel Concrete Reinforcement Welded Wire Mesh Machine unit adopts tungsten steel as the material; the overall is with high wear resistance.
