| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE, ISO |
| Model Number: | DNW-20J |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 40 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 sets per month |
| Name: | Pet Cage Making Machine | Mesh Width: | 500-2000mm |
|---|---|---|---|
| Mesh Hole Size: | 20*20mm | Welding Speed: | 60-80times/min |
| Machinery Test Report: | Provided | Key Selling Points: | Full Automatic |
| Color: | Grey& Yellow | Usage: | Construction Mesh |
| Warranty: | 1 Year | Control System: | PLC |
| Highlight: | Welded Wire Mesh Machine,20x20mm Welded Wire Mesh Machine |
||

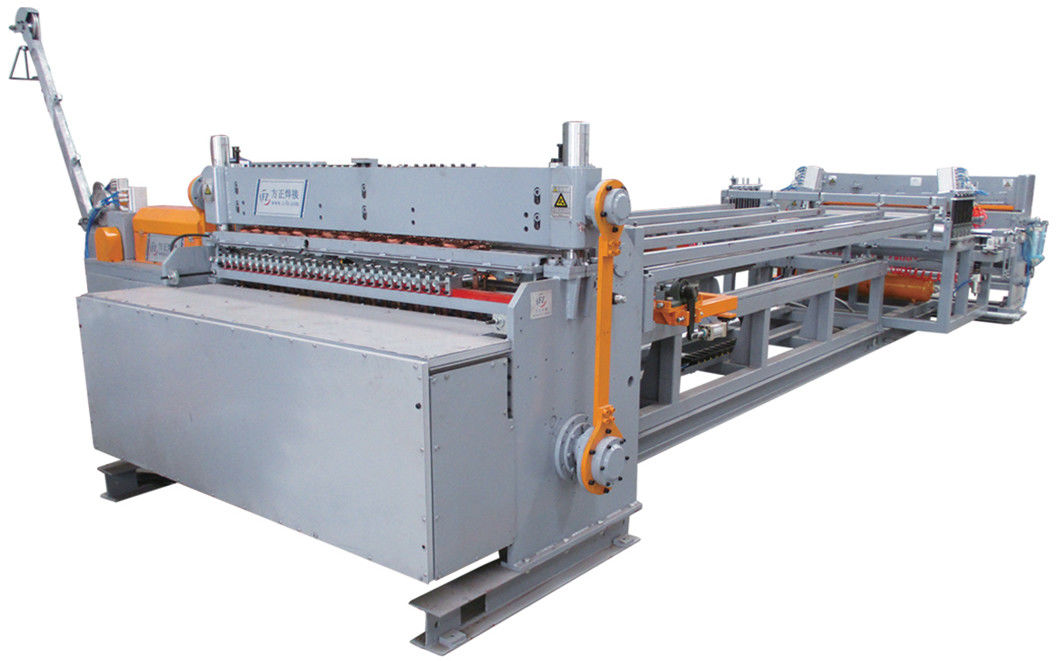

Multi-Function Pet Cage Welded Wire Mesh Machine
1) Mesh traction adopts brand CNC servo system control.
2) Traction device is equipped with pneumatic clamping bodies, it can tight grip the cross wire when mesh traction, which effectively improve the accuracy of the mesh.
3) Using the gear and the rack drive, the transmission efficiency is perfect.
4) Traction device can work in way of back and forth, return rapid and stable.
5) Cross wire spacing can be designed freely in the operating interface, and the operation is very simple, which can meet a variety of mesh spacing changes for one mesh, and it can meet the different requirements of customers.
6) The device with the function of safety protection can avoid the troubles when machine is working or cause of wrong operation by worker.
The parameters of the servo net drawing system can be set and stored in PLC without losing when power is off.
| Item | Product type | Parameter | Remark |
| 1 | Max. welding capacity | ¢ 4+4mm | |
| 2 | Long wire diameter | ¢1.3-4mm | |
| 3 | Cross wire diameter | ¢1.3-4mm | |
| 4 | Long wire feeding method | coil in | |
| 5 | Cross wire feeding method | coin in | |
| 6 | Long wire spacing | ≥20mm | Mechanically adjustments |
| 7 | Cross wire spacing | ≥20mm | Programming adjustments |
| 8 | Length range of wire mesh | 500-250000mm | Adjustable |
| 9 | Width range of wire mesh | ≤2000mm | Adjustable |
| 10 | Number of welding spot | 46PCS | |
| 11 | Working speed max. | 60-80times/min |
