| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-13J |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | High Precision Industry Pallet Racks Gi Wire Net Making Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 2-4mm |
| Mesh Hight: | 1300mm | Mesh Hole Size: | 25*25mm |
| Welding Spots Quantity: | 20pcs | Voltage: | 220V/380V/415V/440V |
| Key Selling Points: | High - Effeciency | Color: | Customized |
| Highlight: | Pallet Racks Gi Wire Net Making Machine,High Precision Gi Wire Net Making Machine |
||

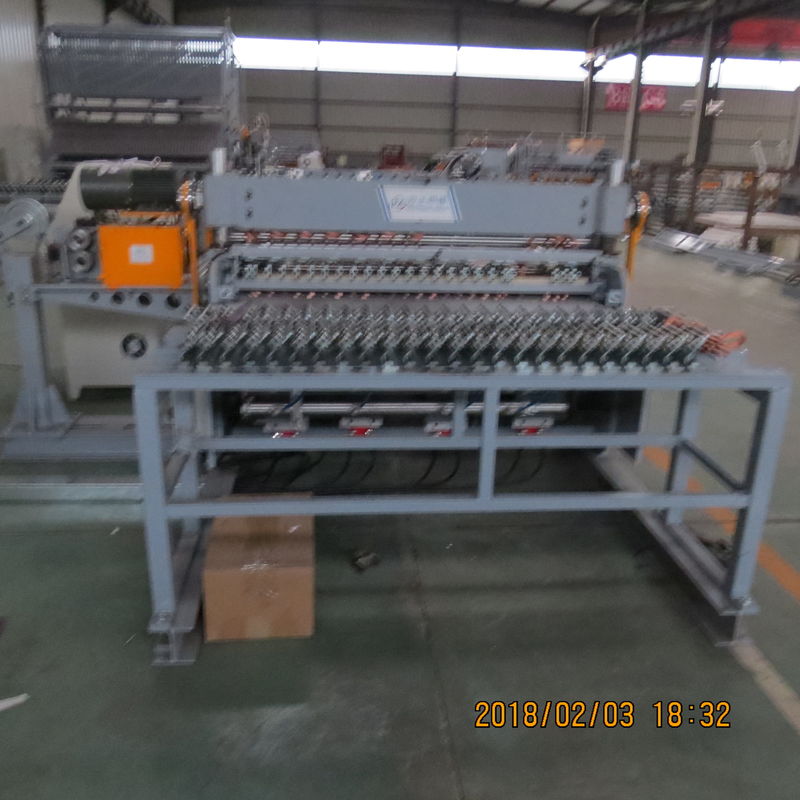

High Precision Industry Pallet Racks Gi Wire Net Making Machine
The motor provides power to the main shaft and cam and then drives the rod to press the welding beam down the spring to press the electrode head on the wire and discharge the welding.
1. welding main beam is welded by thick sheet splicing, equipped with track for easy rail adjustment.
2. rail mainly regulates the interval of electrode head. Spring are divided into upper and lower types, each spring elastic coefficient produces consistent welding stability of pressure
3. wire uses bare copper wire, because it is soft copper wire to adjust the distance.
The copper row for the conductor under 4. effectively ensures the adequacy and stability of the current during welding.
The electrode head on.
| No. | Item Name | Parameter | Note |
| Power condition | Voltage and Frequency | 380V 3phase 50HZ |
Intelligent circuit breaker is not suggested the distance to the transformer≦50m |
| Outer voltage range | ±10% | ||
| Outer transformer | 250KVA | ||
| Cable specification | 180mm²*3 Pin Cooper wire | ||
| Air condition | Air compressor | screw type |
0.6-0.8mpa Distance 3m |
| Air production | 3.4m³/min | ||
| Air tank capacity | 1m³ | Around machine | |
| Cooling | Water pool capacity | 1m³ | Clean water for industry |
| Lifting distance ,Water pressure |
0.2-0.3mpa 25-30m Lifting |
Comprising of several groups of wire straightening units, each group has two pairs of straightening wheels inclined in the opposite direction. The unique straightening machine is suitable for straightening steel wire with different diameters, each unit is 5 straightening wheels, each straightening wheel is made of alloy steel and heat treatment and corrosion prevention treatment, overall wear and corrosion resistance, adapted to straightening low-carbon cold wire pulling, galvanized wire, etc.;
Different diameter wires can be well straightened, only need to adjust the spacing between the upper and lower two sets of straightening wheels.
