| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-13J |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Overseas High Quality Automatically Gi Wire Net Making Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 2-3.5mm |
| Mesh Hight: | 1300mm | Mesh Hole Size: | 50*25mm |
| Welding Speed: | 70-90times/min | Voltage: | 220V/380V/415V/440V |
| Key Selling Points: | High Quality | Color: | Customized |
| High Light: | Automatically Gi Wire Net Making Machine,1300mm Gi Wire Net Making Machine,1300mm Gabion Mesh Machine |
||

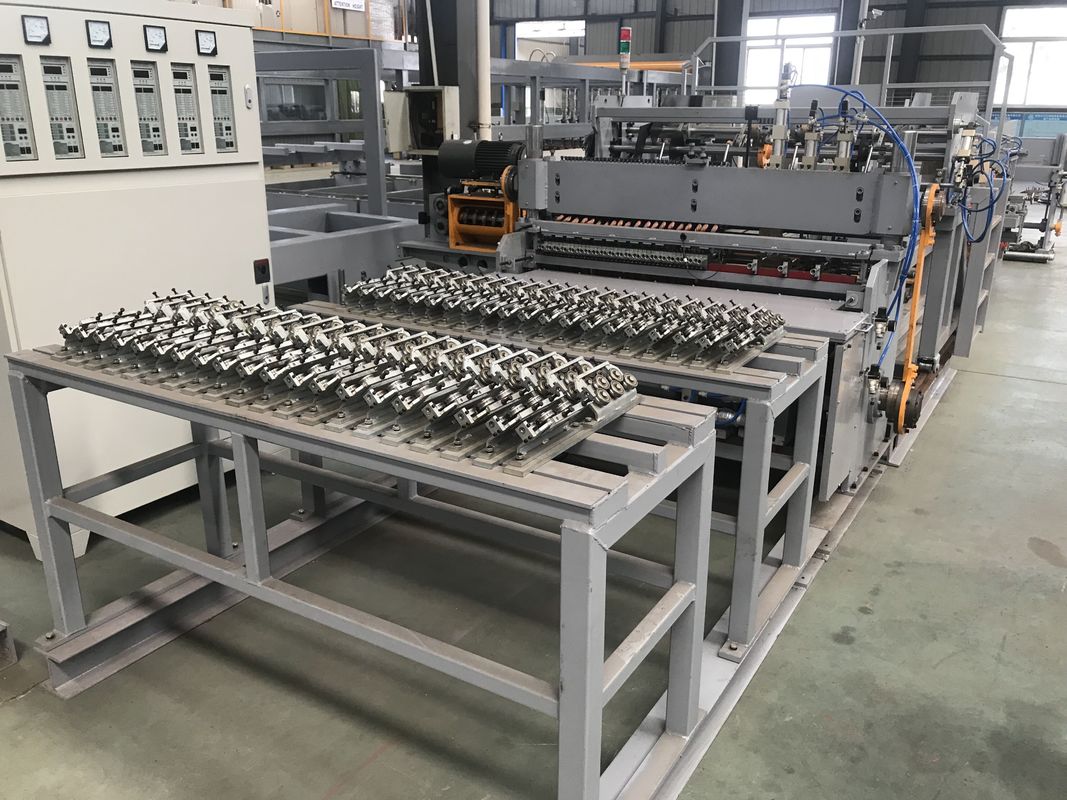

Overseas High Quality Automatically Gi Wire Net Making Machine
Various Overseas High Quality Automatically Gi Wire Net Making Machine: dog cage welding machine, chicken cage mesh welding machine, bird cage welding machine, mouse cage welding machine and other high-quality pet cages and small mesh panel.
Applying field: Breeding cage like dog cage, chicken cage, and rabbit cage are widely used in animal husbandry.
The welding main machine adopts mechanical welding, equipped with special pressure spring (which can reduce the fatigue degree after special treatment), which can reduce the damage of the electrode to the surface of the welding point during welding.
Line welding distance can achieve stepless adjustment, enhance the designed welding transformer structure, and special forced water cooling system is configured to ensure no heating for long operation and good welding effect.
All upper electrode heads can be lowered overall.
| No. | Item Name | Parameter | Note |
| Power condition | Voltage and Frequency | 380V 3phase 50HZ |
Intelligent circuit breaker is not suggested the distance to the transformer≦50m |
| Outer voltage range | ±10% | ||
| Outer transformer | 250KVA | ||
| Cable specification | 180mm²*3 Pin Cooper wire | ||
| Air condition | Air compressor | screw type |
0.6-0.8mpa Distance 3m |
| Air production | 3.4m³/min | ||
| Air tank capacity | 1m³ | Around machine | |
| Cooling | Water pool capacity | 1m³ | Clean water for industry |
| Lifting distance ,Water pressure |
0.2-0.3mpa 25-30m Lifting |
Comprising of several groups of wire straightening units, each group has two pairs of straightening wheels inclined in the opposite direction. The unique straightening machine is suitable for straightening steel wire with different diameters, each unit is 5 straightening wheels, each straightening wheel is made of alloy steel and heat treatment and corrosion prevention treatment, overall wear and corrosion resistance, adapted to straightening low-carbon cold wire pulling, galvanized wire, etc.;
Different diameter wires can be well straightened, only need to adjust the spacing between the upper and lower two sets of straightening wheels.
