| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-10J |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | High - Effeciency Storage Shelves And Racks Gi Wire Net Making Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 2-3.5mm |
| Mesh Hight: | 1000mm | Mesh Hole Size: | 25*25mm |
| Welding Speed: | 70-90times/min | Voltage: | 220V/380V/415V/440V |
| Key Selling Points: | High - Effeciency | Color: | Grey& Yellow |
| Highlight: | 25x25mm Gi Wire Net Making Machine,380V Gi Wire Net Making Machine |
||

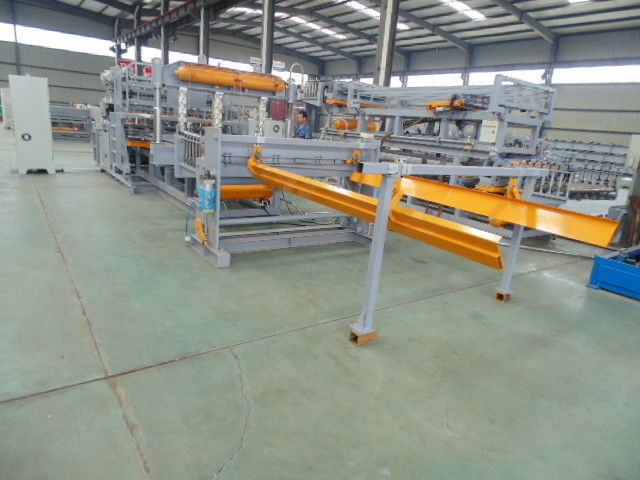

High - Effeciency Storage Shelves And Racks Gi Wire Net Making Machine
The materials of the overall frame is composed of C steel, I-word steel, plate and pipe (square steel).
Both the upper and lower beams are splicing with thick steel plate above 15-20mm(2 meters), its rigidity and firmness are very good, the vibration and force of the machine during operation, and can also maintain good rigidity and firmness.
Surface treatment
After the overall frame welding, there will be a professional master to polish, polish bright spray a layer of primer paint (rust paint, corrosion resistance), and then spray paint two times, the paint is special car paint, uniformity and brightness and adhesion are very high.
| No. | Item Name | Parameter | Note |
| Power condition | Voltage and Frequency | 380V 3phase 50HZ |
Intelligent circuit breaker is not suggested the distance to the transformer≦50m |
| Outer voltage range | ±10% | ||
| Outer transformer | 250KVA | ||
| Cable specification | 180mm²*3 Pin Cooper wire | ||
| Air condition | Air compressor | screw type |
0.6-0.8mpa Distance 3m |
| Air production | 3.4m³/min | ||
| Air tank capacity | 1m³ | Around machine | |
| Cooling | Water pool capacity | 1m³ | Clean water for industry |
| Lifting distance ,Water pressure |
0.2-0.3mpa 25-30m Lifting |
Comprising of several groups of wire straightening units, each group has two pairs of straightening wheels inclined in the opposite direction. The unique straightening machine is suitable for straightening steel wire with different diameters, each unit is 5 straightening wheels, each straightening wheel is made of alloy steel and heat treatment and corrosion prevention treatment, overall wear and corrosion resistance, adapted to straightening low-carbon cold wire pulling, galvanized wire, etc.;
Different diameter wires can be well straightened, only need to adjust the spacing between the upper and lower two sets of straightening wheels.
