| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-25Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | High Security Home Garden Outdoor Galvanized 3D Fence Mesh Welding Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 6mm |
| Mesh Hight: | 2500mm | Mesh Hole Size: | 50*50mm |
| Welding Speed: | 40-60times/min | Voltage: | 220V/380V/415V/440V |
| Key Selling Points: | Wire Feeding In Pre-cut Automatically | Color: | Customized |
| Highlight: | 3D Fence Mesh Welding Machine,High Security Fence Mesh Welding Machine |
||

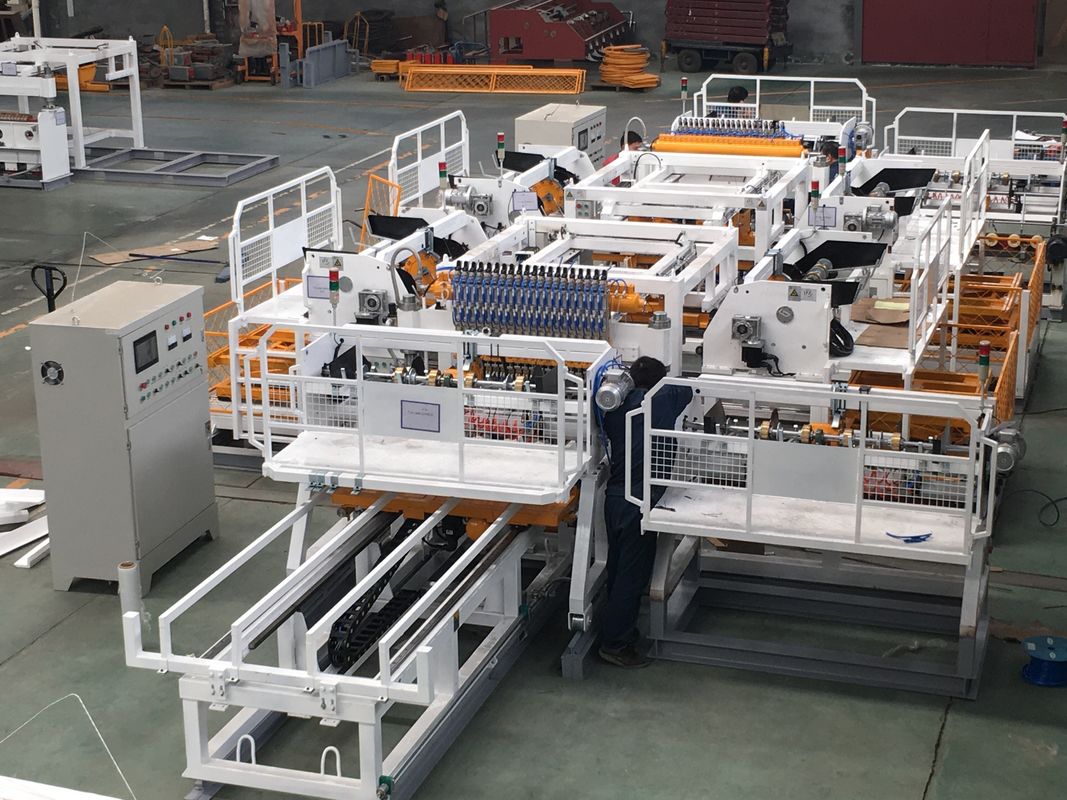

High Security Home Garden Outdoor Galvanized 3D Fence Mesh Welding Machine
Welding transformers are arranged in order from the mainframe operating console. The secondary ends of the transformer are connected to each set of electrode bases through copper plates. Welding transformer is iron shell type, its primary winding is disc type. During welding, adjust the series according to the properties, diameter and contact surface of the welding piece to obtain the required series current. Usually, the larger the diameter, the better the surface conductivity and the greater the electrode pressure, the welding current should be increased. Welding time can be adjusted from 0.01~1 second according to welding diameter. The larger the welding diameter, the more time and current the welding takes.
| No. | Item Name | Parameter | Note |
| Power condition | Voltage and Frequency | 380V 3phase 50HZ |
Intelligent circuit breaker is not suggested the distance to the transformer≦50m |
| Outer voltage range | ±10% | ||
| Outer transformer | 250KVA | ||
| Cable specification | 180mm²*3 Pin Cooper wire | ||
| Air condition | Air compressor | screw type |
0.6-0.8mpa Distance 3m |
| Air production | 3.4m³/min | ||
| Air tank capacity | 1m³ | Around machine | |
| Cooling | Water pool capacity | 1m³ | Clean water for industry |
| Lifting distance ,Water pressure |
0.2-0.3mpa 25-30m Lifting |
This device is the core part of Fence Mesh Welding Machine. It is mainly to weld the meshes at a high speed by cooperating closely with others device.
The welding electrodes head of Fence Mesh Welding Machine use high-quality materials, which make them more wearable and with better conductive, and also have a long life, reduce production costs.
The improvement of design of welding transformers of Fence Mesh Welding Machine meets the demand to weld continuously wires of 8+8+8mm at a high speed at the moment when saving energy.
Fence Mesh Welding Machine electrodes adopt circulating water cooling, which extends their service lives, and ensures the long-term operation of the equipment.
Contact Person: Bella
Tel: +8613283273008
