| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-25Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | CNC Fully Automatic BRC Construction Mesh Welding Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 4-8mm |
| Mesh Hight: | 500-2500mm | Mesh Hole Size: | 50*50mm |
| Welding Speed: | 40-60 Times/min | Machinery Test Report: | Provided |
| Voltage: | 380V Or Customized | Color: | Can Be Customized |
| Highlight: | 50*50mm automatic wire mesh welding machine,brc construction mesh welding machine,cnc construction mesh welding machine |
||

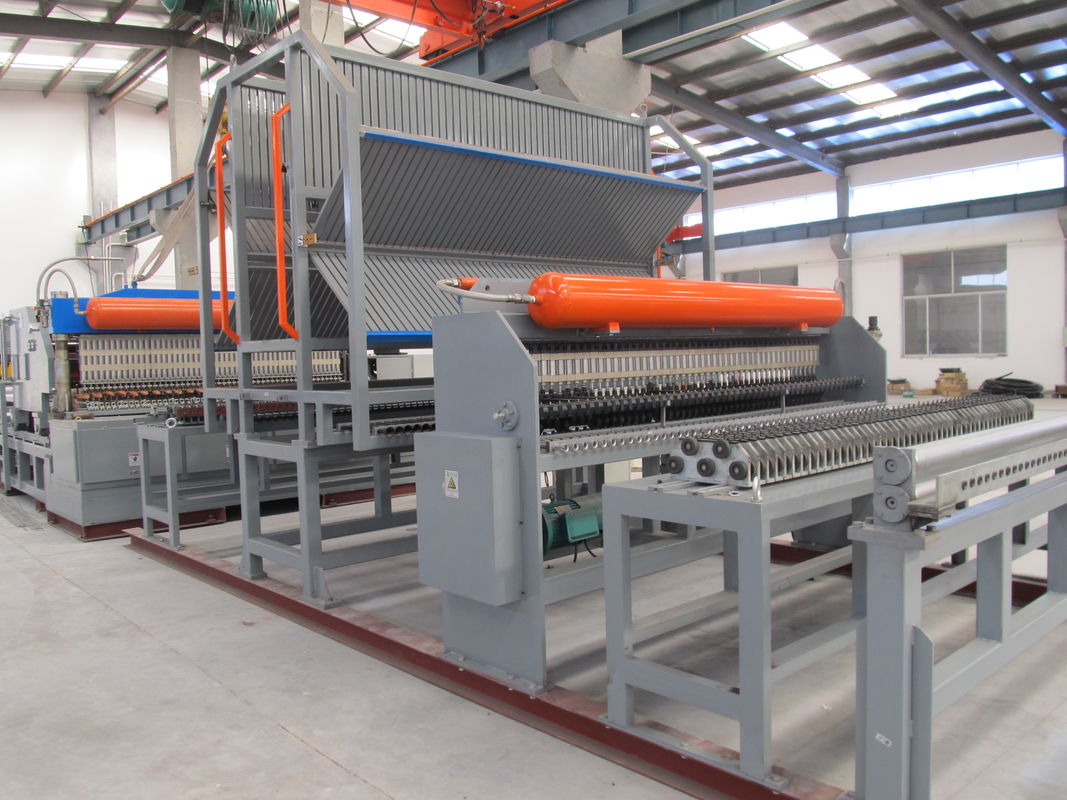

CNC Fully Automatic BRC Construction Mesh Welding Machine
The wire supply storage mechanism is composed of adjustment mechanism, wire feeding mechanism and material storage mechanism. The barbed wire is adjusted by the regulating mechanism into the feeding mechanism and is stored in the storage mechanism. The storage mechanism is composed by two rows of detection switches, the cylinder pressure of the wire transmission mechanism starts the wire supply is on, and the cylinder can be stored well.
| Item | Product type | Parameter | Remark |
| 1 | Max. welding capacity | ¢ 8+8mm | |
| 2 | Long wire diameter | ¢4-8mm | |
| 3 | Cross wire diameter | ¢4-8mm | |
| 4 | Long wire feeding method | In coil | |
| 5 | Cross wire feeding method | In pre-cut | |
| 6 | Long wire spacing | ≥50mm | Mechanically adjustments |
| 7 | Cross wire spacing | ≥50mm | Programming adjustments |
| 8 | Length range of wire mesh | ≤60000mm | Adjustable |
| 9 | Width range of wire mesh | ≤2500mm | Adjustable |
| 10 | Number of welding spot | 16PCS | |
| 11 | Working speed max. | 40-60times/min |
This device is the core part of CNC Fully Automatic BRC Construction Mesh Welding Machine. It is mainly to weld the meshes at a high speed by cooperating closely with others device.
The welding electrodes head of CNC Fully Automatic BRC Construction Mesh Welding Machine use high-quality materials, which make them more wearable and with better conductive, and also have a long life, reduce production costs.
The improvement of design of welding transformers of CNC Fully Automatic BRC Construction Mesh Welding Machine meets the demand to weld continuously wires of 6+6mm at a high speed at the moment when saving energy.
CNC Fully Automatic BRC Construction Mesh Welding Machine 16 electrodes adopt circulating water cooling, which extends their service lives, and ensures the long-term operation of the equipment.
