| Place of Origin: | CHINA |
| Brand Name: | FZ |
| Certification: | CE ISO |
| Model Number: | DNW-18J |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 40days |
| Payment Terms: | L/C,T/T, Western Union |
| Supply Ability: | 10 sets/month |
| Wire Diameter:: | 1.3-3.8mm | Max Width:: | 1800mm |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service | Certification: | CE,ISO9001 |
| Weight: | 7t | Warranty: | 1 Year |
| Color: | Gray And Yellow | Control System:: | PLC |
| Rated Voltage:: | 415V/380V,50Hz/60Hz | Type: | Fully Automatic |
| Long Wire Space: | Min.20mm | ||
| Highlight: | plc control weld mesh manufacturing machine,chicken cage weld mesh manufacturing machine,high speed plc wire mesh welder |
||

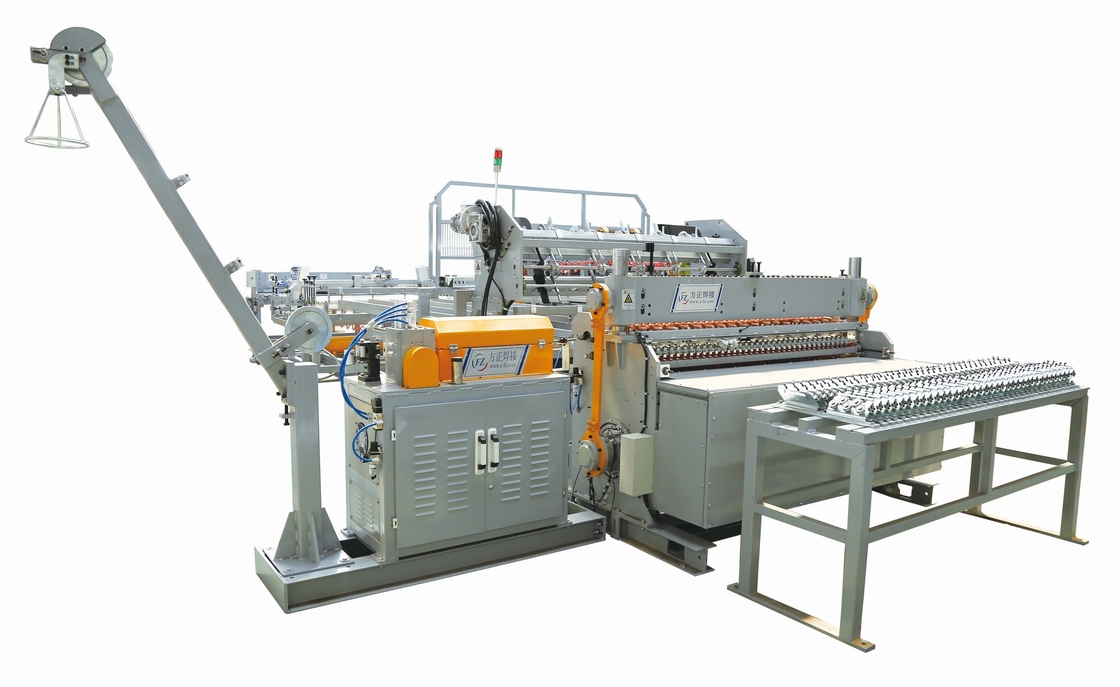

High Speed PLC Control Wire Mesh Welding Machine For Chicken Cage
The whole equipment adopts PLC programming control, user-friendly operation interface, easy to operate and master, mesh size adjustment can be edited through LCD touch screen, all production data setting is convenient and fast. Operating system, CNC servo system, stable performance, meet the needs of high-speed welding mesh.
The operation platform has two selection modes: manual and automatic.
the welding system design by our own engineer ,It is composed of high chromium bronze, with long welding service life and wear resistance.
the cross wire feeding by coil feeding in,
in Chinese the cross wire by coil feeding in we had made for nearly 12 years, this one is the fourth one we had producted, so the working progress can be smooth ,and the working speeding also quick then the others like cross wire pre cut in system.
|
Product type |
DNW-16J |
|
Working speed max. |
60-90Times/Min. |
|
Width range of wire mesh |
≤1600mm |
|
Longitudinal wire spacing |
≧20mm variable from mm it can be adjusted |
|
Welding wire material |
Unalloyed steel wire Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture |
|
Control method |
PLC programming control, servo stepper system |
|
Welding cylinders number |
51pcs |
