| Place of Origin: | CHINA |
| Brand Name: | FZ |
| Certification: | CE ISO |
| Model Number: | DNW-25Q |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 45days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 SETS/MONTH |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 1 Year |
|---|---|---|---|
| Wire Diameter: | 3.5-5.5mm | Welding Speed: | 40-60times/min |
| Usage: | Product Fence For Protect Highway And Railway | Rated Capacity: | 160KVA*9 |
| Product Name: | Automatic Welding Wire Steel Wire Mesh Making Machine | Mesh Width: | Max 2500mm |
| Control System: | PLC+Touch Screen | Cross Wire Space: | 50-200mm Adjustable |
| Highlight: | 6mm fence mesh welding machine,3d fence wire mesh welding machine,3mm wire mesh welding machine |
||

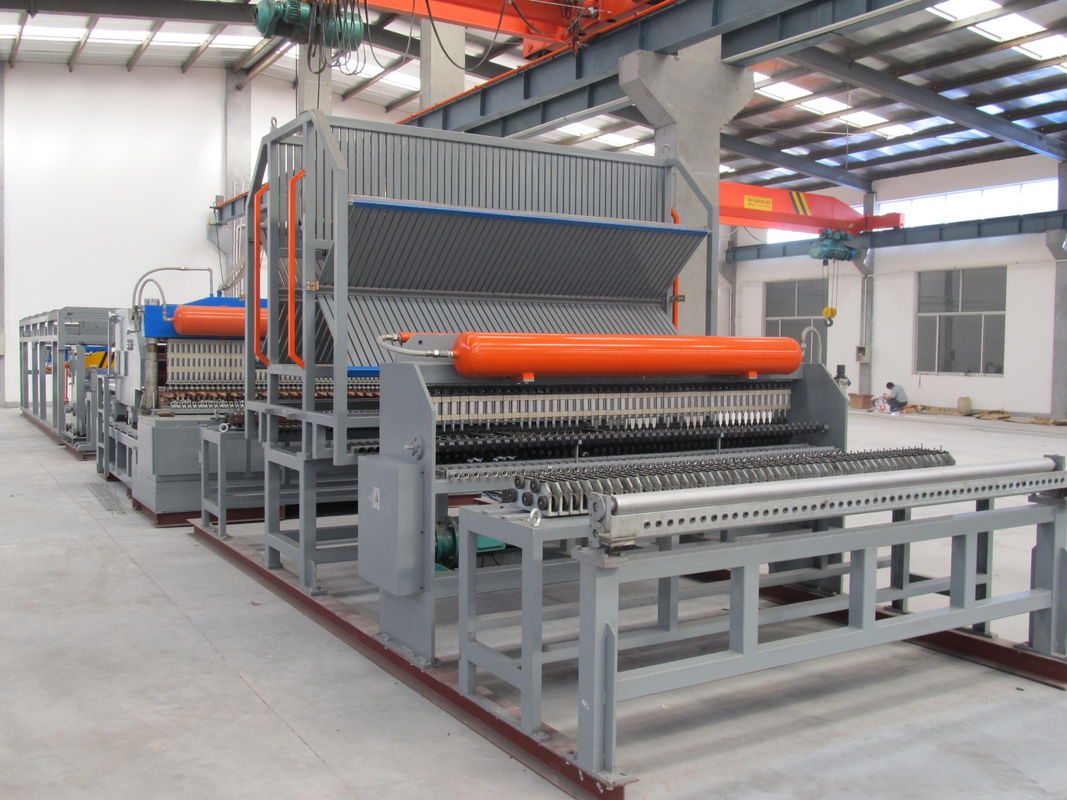

3-6mm Welding Machine 3D Fence With Bending
the long wire can be feeding by the coil in, the 30 groups wire can in a same time, through the long wire stroge system then feed in to the welding system,each feeding in system has the wire feeding roller ,when the wire feeding in , the cylinder can rise up then the wire feeding.and the stroge system have server Proximity switch to know if there is wire or not, can make sure the work going smooth.
The mechanism is provided with several groups of traction wheels, and each longitudinal reinforcement is pressed onto the through shaft through a separate traction wheel, which is driven by the motor of the shaft to feed the mesh step by step.
Each group of pressure rollers are made of special steel and undergo necessary heat treatment, with high wear resistance.
| Product type | DNW-25Q Full-auto Type |
| Working speed max. | 40-60Times/Min. |
| Width range of wire mesh | 1000-2500mm |
| Length range of wire mesh | 1000-2500mm |
| Longitudinal wire spacing | ≧50mm variable from mm it can be adjusted |
| Cross wire spacing | ≧50mm Freely programming adjustments |
| Cross wire diameter | 3-6mm |
| Max. welding capacity | 6+6mm |
| Welding wire material |
low carbon steel galvanized wire; cold drawn wire; Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture |
| Number of max. welding spot | 51PCS/ROW |
| Longitudinal wire feeding method | COIL IN |
| Cross wire feeding method | PRE CUT IN |
| Control method | PLC programming control, servo stepper system |
| Transformer power | 160KVA*9 Cooling water: each transformer has a separate microcomputer |
| The Allowed Fluctuation Range for External Power | ±10% |
| Air consumption pressure | 0.6-0.8Mpa 3.4m³/minute |
| bending | online bending finished on one time |
