| Place of Origin: | CHINA |
| Brand Name: | FZ |
| Certification: | CE ISO |
| Model Number: | DNW-25QB |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Delivery Time: | 50days |
| Payment Terms: | L/C,T/T, Western Union |
| Wire Diameter:: | 3-6mm | Max Width:: | 2500mm |
|---|---|---|---|
| Name:: | Fence Making Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Maintenance And Repair Service |
| Wire Diameter: | 3.2-6mm | Certification: | CE,ISO9001 |
| Weight: | 19t | Warranty: | 1 Year |
| Color: | Gray And Yellow | Control System:: | PLC |
| Rated Voltage:: | 220V/415V/380V,50Hz/60Hz | Rated Capacity:: | 150Kva*9set |
| Highlight: | 2500mm wire mesh welding machine,servo wire mesh welding machine,servo wire mesh welder |
||

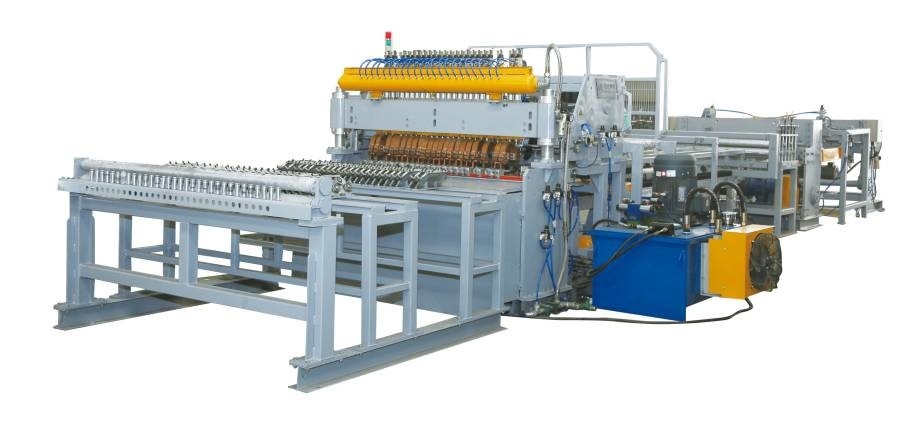

Fence Wire Mesh Welding Machine With Bending Full-Auto
the long wire and cross wire all can be coil feeding in,then that will save stuaff to operation the machine. we only need one to make all these work to change the wire coil when there no wire and push the button in screen,
Mesh traction adopts brand CNC servo system control.Using the gear and the rack drive, the transmission efficiency is perfect. Traction device can work in way of back and forth, return rapid and stable. Cross wire spacing can be designed freely in the operating interface, and the operation is very simple, which can meet a variety of mesh spacing changes for one mesh,that can be changed by the programmer, and it can meet the different requirements of customers.
when it is welding cross wire in the same row, and welding transformer is working separately, which makes the welding more reliable, more stable, more faster and more intelligent. It also makes spatters small, and reduces the burn degree of welding joints, and avoid thermal deformation of meshes.
|
Product type |
DNW-25QB |
|
Working speed max. |
40-60times/min |
|
Width range of wire mesh |
≤ 2500mm |
|
Longitudinal wire spacing |
≧50mm variable it can be adjusted |
|
Welding wire material |
Unalloyed steel wire Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture |
|
Control method |
PLC programming control, servo stepper system |
|
Welding cylinders number |
51pcs |
