Place of Origin: | China |
Brand Name: | FZ |
Certification: | CE ISO |
Model Number: | DNW-25Q |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic films or can be customized. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Type: | Electric Security Fencing Welded Wire Mesh Machine | Voltage: | 220V/380V/415V/440V |
---|---|---|---|
Wire Diameter Range: | 3-6mm | Mesh Hight: | 500-2500mm |
Mesh Hole Size: | 50*50mm | Welding Speed: | 40-60 Times/min |
Key Selling Points: | Full Automatic | Color: | Grey& Yellow Or Can Be Customized |
Usage: | Fence Mesh | Lead Time: | 25 Days |
High Light: | Electric ISO Wire Fencing Machine,Numerical Control Wire Fencing Machine,Numerical Control Electric Wire Welding Machines |

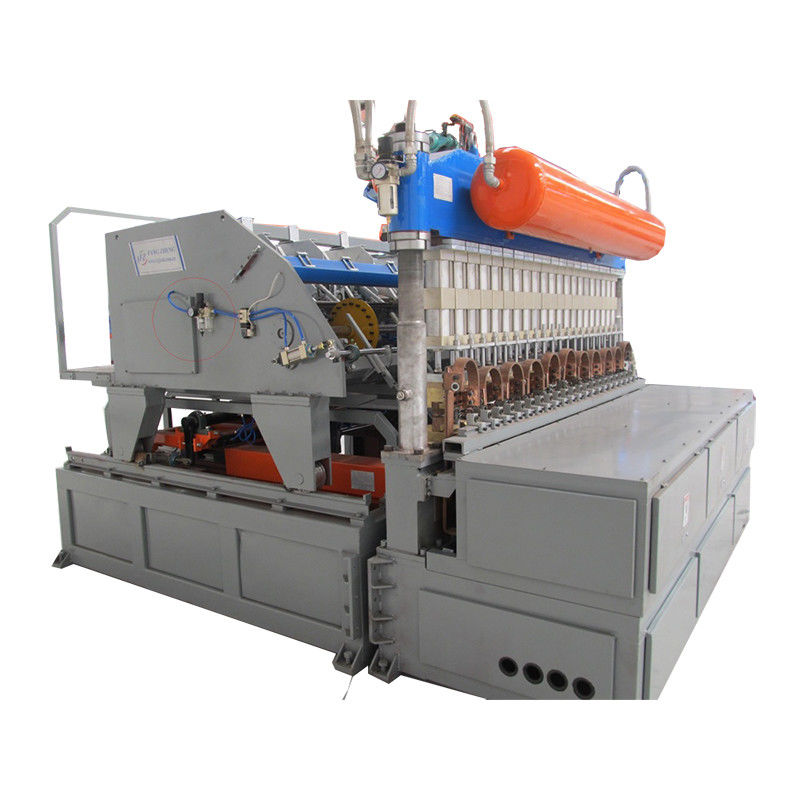

Electric Security Fencing Welded Wire Mesh Machine
There is a small digital operation platform next to the host of the Electric Security Fencing Welded Wire Mesh Machine, full touched screen operation, easy to operate. The overall integrated process make operate very intuitive,overturn the traditional processing mode, only one operator can meet the production requirements and completely. The transformation of production process through numerical control mechanization has truly realized Electric Security Fencing Welded Wire Mesh Machine automatic integration, Making Electric Security Fencing Welded Wire Mesh Machine whole production process very simple.
The numerical control Electric Security Fencing Welded Wire Mesh Machine can design 100 models metal mesh through computer numerical control. Not only the efficiency is high, but also the shaping precision is very high, the error is only about 1mm, which greatly improves the quality standard of the metal mesh. Produce the metal mesh by Electric Security Fencing Welded Wire Mesh Machine can make the finished metal mesh specifications meet the design requirements very easily with very small tolerance and high standard degree. Electric Security Fencing Welded Wire Mesh Machine relying on outstanding research and development capabilities, many breakthroughs have been achieved to bring more competitive to global users.
ITEM | SPECIFICATION | QUA. | REMARKS |
AIR COMPRESSOR | 0.6-0.8MPa 3.4m3 /min clean compressed air of technical grade | 1 SET |
Necessary operating conditions
|
AIR STORAGE TANK | 0.6-0.8MPa 2m3 | 1 SET | |
WATER COOLING SYSTEM |
0.3 MPa 0.6 m3 /min Clean cooling water of industrial grade |
1 SET |
1. Manually put the pre-cut long wire into the Electric Security Fencing Welded Wire Mesh Machine position hole, start the Electric Security Fencing Welded Wire Mesh Machine button and the pneumatic clamp will clamp the wire tightly, then the stepping motor will drive the wire to be welded by the welding host. Later the Electric Security Fencing Welded Wire Mesh Machine mesh traction car will pulling the mesh by going there and back. When welding the second mesh, the feeding car will back to the original point and still for preparing the wires of the second mesh. As soon as the first mesh is finished, it will work again and followed by recycling. There is no need to stop the welding machine, which improves the welding efficiency.
2. The whole set of Electric Security Fencing Welded Wire Mesh Machine is composed of machine rack, feeding car, clamping device and transmission device.
