Place of Origin: | China |
Brand Name: | FZ |
Certification: | CE |
Model Number: | DNW-25Q |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic films or can be customized. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Type: | Full Automatic Construction Wire Mesh Welding Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
---|---|---|---|
Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 3-6mm |
Mesh Hight: | 500-2500mm | Mesh Hole Size: | 50*50mm |
Welding Speed: | 40-60 Times/min | Machinery Test Report: | Provided |
Voltage: | 220V/380V/415V/440V | Color: | Grey& Yellow Or Can Be Customized |
High Light: | Construction Mesh Welding Machine,Wearable Construction Mesh Welding Machine,Wearable Mesh Welding Machine |

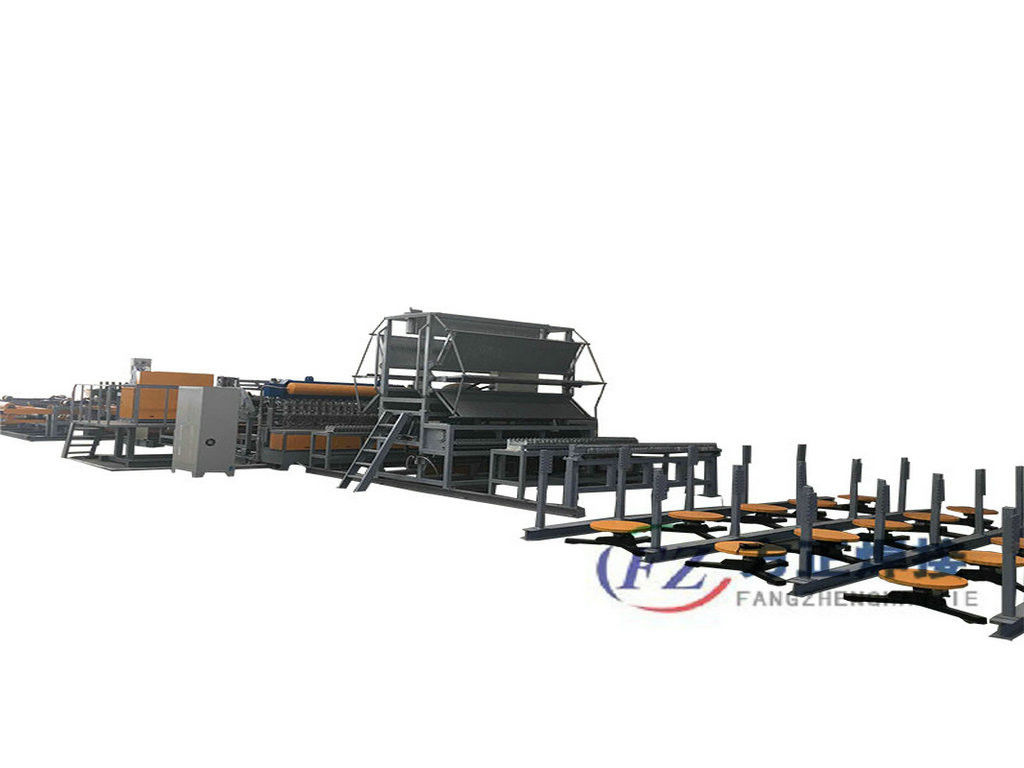

CNC Full Automatic Construction Wire Mesh Welding Machine
Huanghua Fangzheng Welding equipment Co., Ltd. specializes in the production of mesh straightening machine, relying on 30 years of welding mesh level experience, can customize the automatic production line according to the order.
Our company can tailor-made various series of mesh welding equipments depending on different fields, including reinforcing mesh welding line, pipe gallery mesh welding line, asembly building mesh welding line with openings, autoclaved aerated panel mesh welding line, Steel wire mesh frame welding line, mine supporting mesh welding line, fence mesh welding line, CNC high-accuracy poultry mesh welding line, industrial mesh welding line, wire straightening and cutting machine, hoop bending machine, steel wire mesh frame welding line wire inserting machine, mesh bending machine and etc. Since the products has been launched into the market, we have obtained high praises from numerous customers.
Item | Product type | Parameter | Remark |
1 | Max. welding capacity | ¢ 6+6mm | |
2 | Long wire diameter | ¢3-6mm | |
3 | Cross wire diameter | ¢3-6mm | |
4 | Long wire feeding method | In coil | |
5 | Cross wire feeding method | In pre-cut | |
6 | Long wire spacing | ≥50mm | Mechanically adjustments |
7 | Cross wire spacing | ≥50mm | Programming adjustments |
8 | Length range of wire mesh | ≤60000mm | Adjustable |
9 | Width range of wire mesh | ≤2500mm | Adjustable |
10 | Number of welding spot | 16PCS | |
11 | Working speed max. | 40-60times/min |
This device is the core part of Full Automatic Construction Wire Mesh Welding Machine. It is mainly to weld the meshes at a high speed by cooperating closely with others device.
The welding electrodes head of Full Automatic Construction Wire Mesh Welding Machine use high-quality materials, which make them more wearable and with better conductive, and also have a long life, reduce production costs.
The improvement of design of welding transformers of Full Automatic Construction Wire Mesh Welding Machine meets the demand to weld continuously wires of 6+6mm at a high speed at the moment when saving energy.
Full Automatic Construction Wire Mesh Welding Machine 16 electrodes adopt circulating water cooling, which extends their service lives, and ensures the long-term operation of the equipment.
