| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-25Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Wire Diameter Range: | 3-6mm | Mesh Hight: | 500-2500mm |
|---|---|---|---|
| Mesh Hole Size: | 50*50mm | Welding Speed: | 40-60 Times/min |
| Voltage: | 220V/380V/415V/440V | Key Selling Points: | Full Automatic |
| Color: | Grey& Yellow Or Can Be Customized | Usage: | Construction Mesh |
| Lead Time: | 30 Days | Mesh Length: | ≤6000mm |
| High Light: | CE Welding Chain Link Manufacturing Machine,6000mm Chain Link Manufacturing Machine,6000mm Chain Link Mesh Making Machine |
||

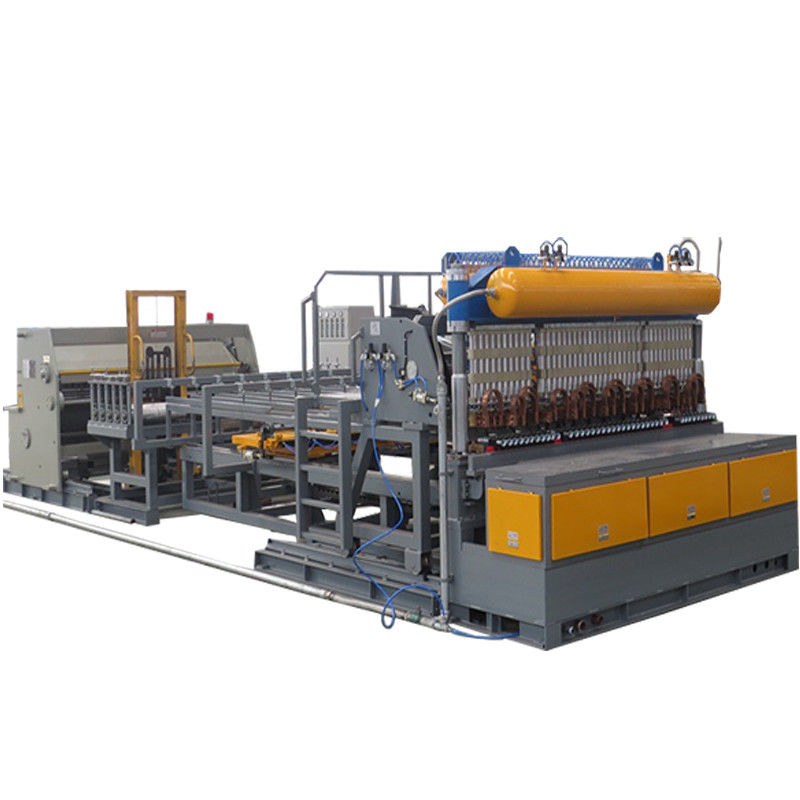

3D Automatically Bending Fence Mesh Welding Machine
All of electrodes for 3D Automatically Bending Fence Mesh Welding Machine all uses zirconium chromium bronze, is much better than the commonly used chromium pick copper wear resistance conductivity, generally is about 3 times the ordinary electrode.
We will adhere to the product shape, quality, performance, after-sale and other aspects of continuous improvement, strive to provide customers with quality products and after-sales service, committed to provide users with high performance-price ratio 3D Automatically Bending Fence Mesh Welding Machine.
| Item | Product type | Parameter | Remark |
| 1 | Max. welding capacity | ¢ 6+6mm | |
| 2 | Long wire diameter | ¢3-6mm | |
| 3 | Cross wire diameter | ¢3-6mm | |
| 4 | Long wire feeding method | In coil | |
| 5 | Cross wire feeding method | In pre-cut | |
| 6 | Long wire spacing | ≥50mm | Mechanically adjustments |
| 7 | Cross wire spacing | ≥50mm | Programming adjustments |
| 8 | Length range of wire mesh | ≤60000mm | Adjustable |
| 9 | Width range of wire mesh | ≤2500mm | Adjustable |
| 10 | Number of welding spot | 16PCS | |
| 11 | Working speed max. | 40-60times/min |
The wires from coils are firstly straightened through this device of 3D Automatically Bending Fence Mesh Welding Machine in order to ensure that welding mesh will be more even. It is essential to the whole line.
There are 16 PCS longitudinal wire straightening unit on 3D Automatically Bending Fence Mesh Welding Machine, each unit has 5pcs wheels, it fits for straitening wire diameter 3-6 mm for 3D Automatically Bending Fence Mesh Welding Machine.
Each unit has the special structure and the distance among each wheel is calculated accurately. So it can straighten different materials such as galvanizing wires, cold-rolled ribbed wires, low-carton black wires, etc.
Each straightening on 3D Automatically Bending Fence Mesh Welding Machine unit adopts tungsten steel as the material; the overall is with high wear resistance.
