| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-25Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | High Effeciency Automatic Gi Wire Net Making Machine | Mesh Hight: | 500-2500mm |
|---|---|---|---|
| Mesh Hole Size: | 50*50mm | Welding Speed: | 40-60 Times/min |
| Voltage: | 220V/380V/415V/440V | Key Selling Points: | Full Automatic |
| Color: | Grey& Yellow Or Can Be Customized | Usage: | Construction Mesh |
| Lead Time: | 30 Days | Mesh Length: | ≤6000mm |
| High Light: | High Effeciency Gi Wire Net Making Machine,50x50mm Gi Wire Net Making Machine,50x50mm Wire Fencing Machine |
||

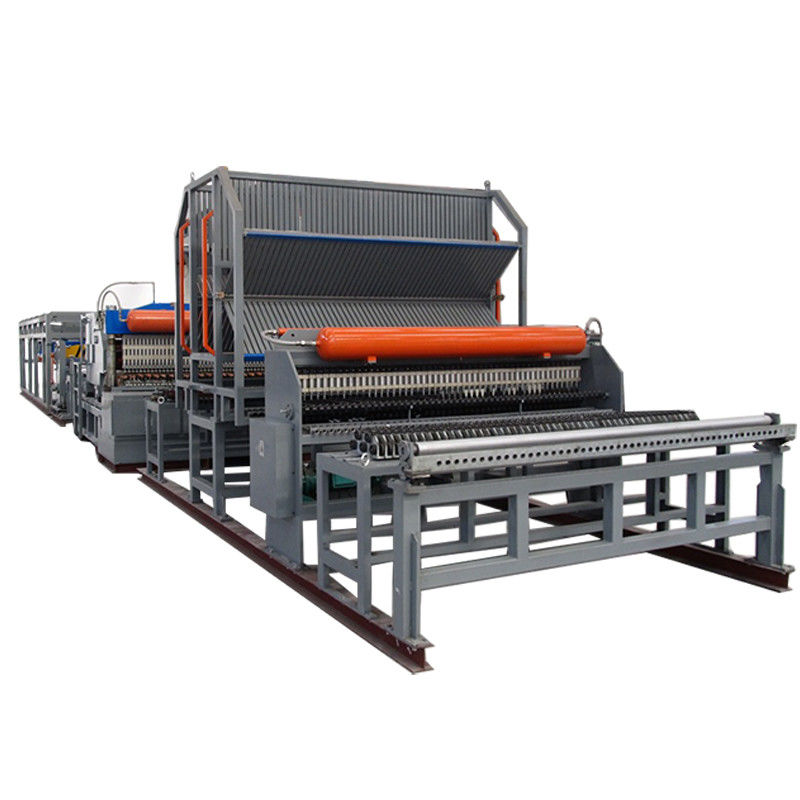

High Effeciency Automatic Gi Wire Net Making Machine
In order to meet the needs of customers' business development, reduce labor costs and improve production efficiency,we orders the Gi Wire Net Making Machine according to your existing situation and needs to meet the efficient production of metal mesh.
We ensure that we will continuously improve and perfect the appearance, quality, performance and after-sales service of the products and try our best to provide the products with good quality and after-sales service for our customers. We believe that you will think each of our welding equipments is worth its price after you use it.
| Item | Product type | Parameter | Remark |
| 1 | Max. welding capacity | ¢ 6+6mm | |
| 2 | Long wire diameter | ¢3-6mm | |
| 3 | Cross wire diameter | ¢3-6mm | |
| 4 | Long wire feeding method | In coil | |
| 5 | Cross wire feeding method | In pre-cut | |
| 6 | Long wire spacing | ≥50mm | Mechanically adjustments |
| 7 | Cross wire spacing | ≥50mm | Programming adjustments |
| 8 | Length range of wire mesh | ≤60000mm | Adjustable |
| 9 | Width range of wire mesh | ≤2500mm | Adjustable |
| 10 | Number of welding spot | 16PCS | |
| 11 | Working speed max. | 40-60times/min |
High Effeciency Automatic Gi Wire Net Making Machine cross auto feeding device is to feed the cross wires. And it is also the necessary part in High Effeciency Automatic Gi Wire Net Making Machine.
Cross wires are pre-cut. The pre-cut wires are sent into the wire plucking section from storage area under the drive of motor. After inspection, wire catching plate can send wires (one piece once Time) on the position between electrodes to weld by High Effeciency Automatic Gi Wire Net Making Machine. After finishing one row of welding, the longitudinal wires step one grid and one piece of cross wire drops at the same time and then welding starts. After some times welding like this, one mesh will be finished.
This device of High Effeciency Automatic Gi Wire Net Making Machine is equipped with an inspecting device. If none of cross wires drops, the device will alarm automatically. After adjusting by worker, the machine will continue producing, which greatly decrease the damage of High Effeciency Automatic Gi Wire Net Making Machine and meshes.
Materials area is equipped the positioning device to store the wires with different lengths.
