Place of Origin: | China |
Brand Name: | FZ |
Certification: | CE |
Model Number: | DNW-13Q |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic films or can be customized. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Type: | Cablofil Grid Cable Tray Wire Mesh Bending Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
---|---|---|---|
Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 3-6mm |
Machinery Test Report: | Provided | Key Selling Points: | Full Automatic |
Voltage: | 220V/380V/415V/440V | Usage: | Cable Tray Mesh |
Lead Time: | 30 Days | Welding Method: | Pneumatic |
Automation Degree: | Full Automatic | Certification: | CE ISO |
High Light: | Servo Pull Wire Mesh Bending Machine,Hydraulic Wire Mesh Bending Machine,Servo Pull Hydraulic Sheet Bending Machine |
Cablofil grid Cable tray Wire Mesh Bending Machine
The console has manual and automatic selection. Servo pull system parameters can be set and stored in the PLC, power failure is not lost. The resistance welding transformers of the equipment are controlled by microcomputer, and the welding electronic control adopts the method of primary welding grouping power transmission.
Operators must be skilled in the construction, performance, operation and maintenance of the welder, and after training before the machine operation.
Item | Product type | Parameter | Remark |
1 | Max. welding capacity | ¢ 6+6mm | |
2 | Long wire diameter | ¢3-6mm | |
3 | Cross wire diameter | ¢3-6mm | |
4 | Long wire feeding method | In pre-cut | |
5 | Cross wire feeding method | In pre-cut | |
6 | Long wire spacing | ≥50mm | Mechanically adjustments |
7 | Cross wire spacing | ≥50mm | Programming adjustments |
8 | Length range of wire mesh | ≤3000mm | Adjustable |
9 | Width range of wire mesh | ≤1300mm | Adjustable |
10 | Number of welding spot | 16PCS | |
11 | Working speed max. | 40-60times/min |
By means of hydraulic bending, the mesh is placed manually in the fixed position of the Cablofil grid Cable tray Wire Mesh Bending Machine. After starting the switch, the upper beam of Cablofil grid Cable tray Wire Mesh Bending Machine bends the mesh by hydraulic pressure, and the die needs to be replaced at different Cablofil grid Cable tray Wire Mesh Bending Machine angles and shapes.

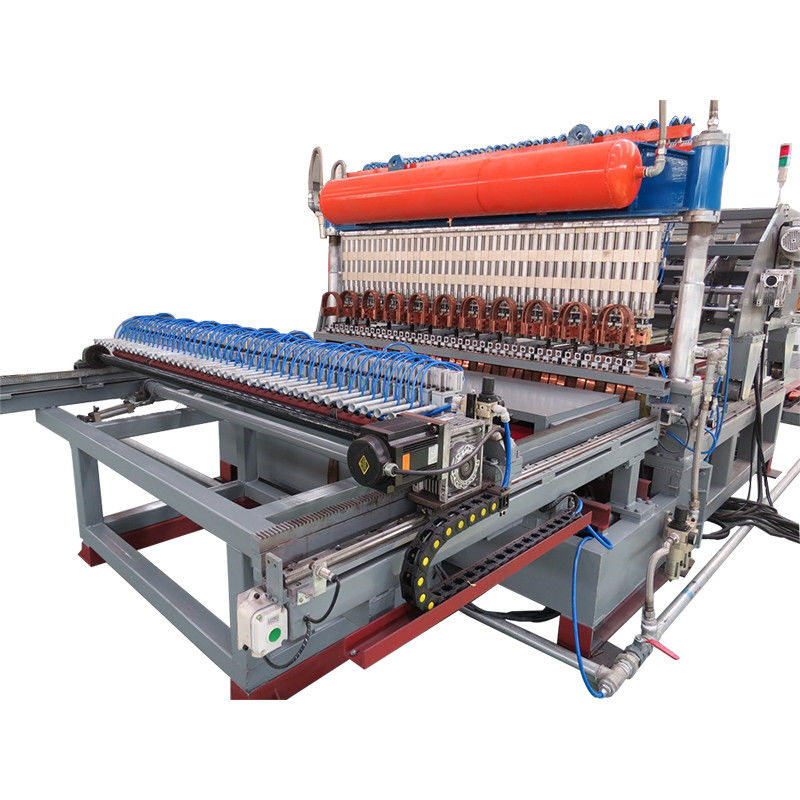

Cablofil grid Cable tray Wire Mesh Bending Machine photo as following:
