| Place of Origin: | CHINA |
| Brand Name: | FZ |
| Certification: | CE,ISO |
| Model Number: | DNW-30Q |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 SETS/MONTH |
| Usage: | Mesh Making | Weight: | 9t |
|---|---|---|---|
| Dimensions: | 6000*2500*1800 MM | Type: | Welding Wire Machine |
| Condition: | New | Welding Speed: | 40-70 Times/min |
| Wire Diameter: | 5mm-12mm | Warranty: | 1 Year |
| Rated Voltage: | 380V/220V/410V 50HZ/60HZ As Buyers Requirement | Color:: | Gray And Yellow |
| High Light: | Synchronous Control Weld Mesh Making Machine,12mm Weld Mesh Making Machine,12mm Wire Mesh Making Machine |
||

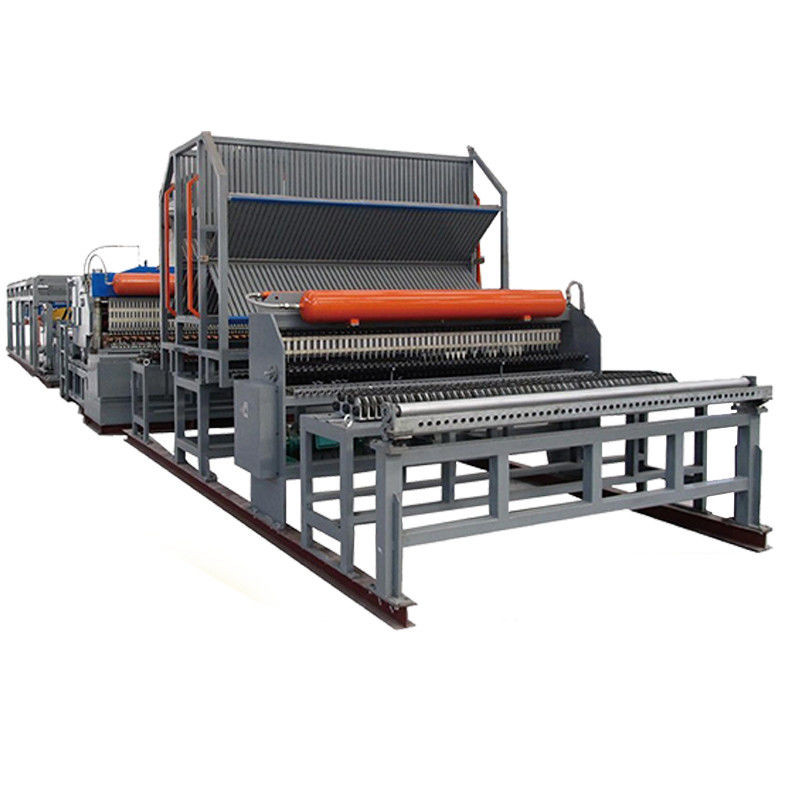

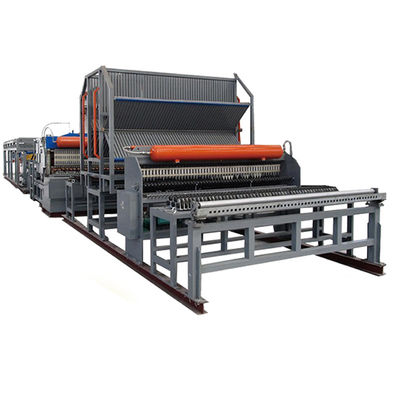

Full Automatic Building Construction Mesh Welding Machine
This machine adopts synchronous control technique, welding time and cent-control welding is composed of digital and integrated electric circuit. This operation is accurate, it has stable function, firm welded point and without welded tracks.
Not only welding speed is fast but also it is easy to learn and operate. servo motor, pulling the wire net by the servo motor auto.
| Working speed max. | 35-55Times/Min. |
| Width range of wire mesh | ≤ 2000mm |
| Length range of wire mesh | ≧1000mm |
| Longitudinal wire spacing | ≧25mm variable from mm it can be adjusted |
| Cross wire spacing | ≧25mm Freely programming it can be adjustments |
| Max. welding capacity | 12+12mm |
Each welding transformer is controlled by a separate microcomputer. The welding electronic control adopts the way of grouped power transmission and welding. It means when it is welding cross wire in the same row, and welding transformer is working separately, which makes the welding more reliable, more stable, more faster and more intelligent. It also makes spatters small, and reduces the burn degree of welding joints, and avoid thermal deformation of meshes.
