| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-25Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Full Automatic Construction Wire Mesh Welding Machine | Material Of Machine: | Heavy Plates And Section Bars |
|---|---|---|---|
| Wire Diameter Range: | 3-6mm | Mesh Hight: | 500-2500mm |
| Mesh Hole Size: | 50*50mm | Welding Speed: | 40-60 Times/min |
| Color: | Grey& Yellow Or Can Be Customized | Usage: | Construction Mesh |
| Welding Method: | Pneumatic | Certification: | CE ISO |
| Voltage: | 220V/380V/415V/440V | Control System: | PLC |
| Cooling Method: | Water Cooling | Warranty: | 1 Year |
| High Light: | Automatic Electric Welded Mesh Machine,PLC Control Electric Welded Mesh Machine,PLC Control Automatic Welded Wire Mesh Machine |
||

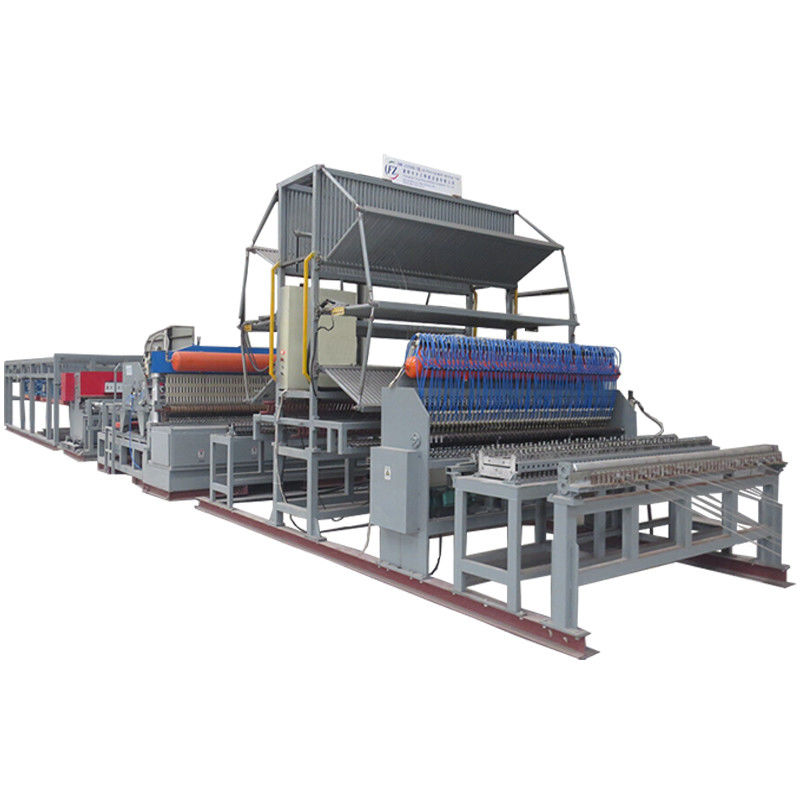

Reinforcing Concrete Panel Automatic Welded Wire Mesh Machine
The line wire feeding in coil device of Reinforcing Concrete Panel Automatic Welded Wire Mesh Machine, it can realize sixty wire bearing rack sending at the same time, Reinforcing Concrete Panel Automatic Welded Wire Mesh Machine can application of dense wire mesh production. The wire bearing rack can be divided into many kinds, the wire bearing rack with brake suitable for welding thick wire, another one without brake suitable for welding filaments. This device of Reinforcing Concrete Panel Automatic Welded Wire Mesh Machine is the most widely used.
The Reinforcing Concrete Panel Automatic Welded Wire Mesh Machine designed by FZ welding company, take the full automation as the core idea, make efforts to reduce the manual participation of Reinforcing Concrete Panel Automatic Welded Wire Mesh Machine, achieve full automatic high-speed production. At present, FZ welding company has many patents for wire mesh welding machines, and it is widely used in practice, access to the vast number of Reinforcing Concrete Panel Automatic Welded Wire Mesh Machine customers alike.
| No. | Item Name | Parameter | Note |
| Power condition | Voltage and Frequency | 380V 3phase 50HZ |
Intelligent circuit breaker is not suggested the distance to the transformer≦50m |
| Outer voltage range | ±10% | ||
| Outer transformer | 250KVA | ||
| Cable specification | 180mm²*3 Pin Cooper wire | ||
| Air condition | Air compressor | screw type |
0.6-0.8mpa Distance 3m |
| Air production | 3.4m³/min | ||
| Air tank capacity | 1m³ | Around machine | |
| Cooling | Water pool capacity | 1m³ | Clean water for industry |
| Lifting distance ,Water pressure |
0.2-0.3mpa 25-30m Lifting |
After-sale service
After the assurance period, during the service life of the Reinforcing Concrete Panel Automatic Welded Wire Mesh Machine,we supply after-sale service with good quality.
We guarantee a lifelong maintenance and supply spare parts and easily damaged parts for Reinforcing Concrete Panel Automatic Welded Wire Mesh Machine.
We will arrange Reinforcing Concrete Panel Automatic Welded Wire Mesh Machine engineer to the factory to supply technical service as soon as we receive formal notification such as fax or email if customer can not solve the problem under the guidance on the phone.
Provide regular equipment inspection and maintenance service for Reinforcing Concrete Panel Automatic Welded Wire Mesh Machine.
Update the new Software edition for free for Reinforcing Concrete Panel Automatic Welded Wire Mesh Machine.
