| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-25Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Automatic Welded Reinforcing Construction Mesh Welding Machine | Wire Diameter Range: | 3-6mm |
|---|---|---|---|
| Mesh Hight: | 500-2500mm | Mesh Hole Size: | 50*50mm |
| Welding Speed: | 40-60 Times/min | Key Selling Points: | Automatically Mesh Turn Over |
| Mesh Length: | ≤6000mm | Welding Method: | Pneumatic |
| Voltage: | 220V/380V/415V/440V | Control System: | PLC |
| High Light: | Welded Reinforcing Construction Mesh Welding Machine,Pneumatic Construction Mesh Welding Machine,Welded Reinforcing Pneumatic Welding Machine |
||

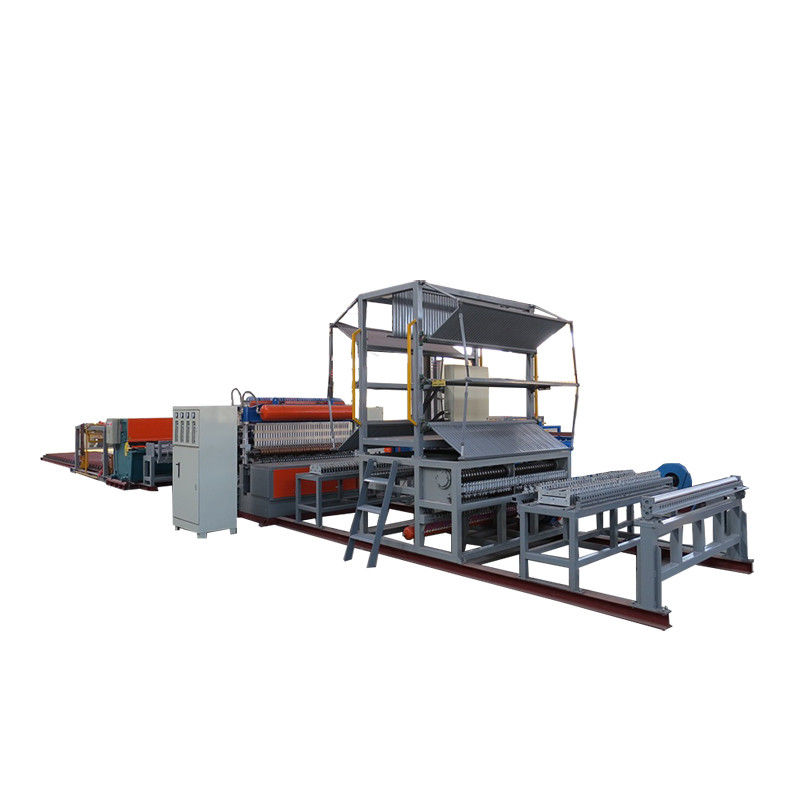

Automatic Welded Reinforcing Construction Mesh Welding Machine
Mesh turn-over stacking device is designed for the Automatic Welded Reinforcing Construction Mesh Welding Machine to save the space for large mesh. This device can stacking the mesh with one piece up and one piece turn-over, doesn’t affect production at the same time. This device can not only reduce the labor cost in the Automatic Welded Reinforcing Construction Mesh Welding Machine production process, but also save the 25% transport cost in the transportation. So Automatic Welded Reinforcing Construction Mesh Welding Machine users love it deeply.
| Working speed max. | 40-60Times/Min. |
| Width range of wire mesh | ≤2500mm |
| Length range of wire mesh | ≧1000mm |
| Longitudinal wire spacing | ≧100mm mechanical adjustment |
| Cross wire spacing | ≧25mm Freely programming adjustments |
| Cross wire diameter | 4-8mm |
| Longitudinal wire diameter | 4-8mm |
| Max. welding capacity | 8+8mm |
| Welding wire material |
low carbon steel galvanized wire; Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture |
This system of Automatic Welded Reinforcing Construction Mesh Welding Machine is to control all the currents and voltages needed during welding and ensure meshes to be firm. It is developed by our company and university, so it is unique.
Each Automatic Welded Reinforcing Construction Mesh Welding Machine welding transformer is controlled by a separate microcomputer. The Automatic Welded Reinforcing Construction Mesh Welding Machine welding electronic control adopts the way of grouped power transmission and welding. It means when it is welding cross wire in the same row, and welding transformer is working separately, which makes the welding more reliable, more stable, more faster and more intelligent. It also makes spatters small, and reduces the burn degree of Automatic Welded Reinforcing Construction Mesh Welding Machine welding joints, and avoid thermal deformation of meshes.
Contact Person: Bella
Tel: +8613283273008
