| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-25Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Building Steel Concrete Rebar Welded Wire Mesh Machine | Voltage: | 220V/380V/415V/440V |
|---|---|---|---|
| Long Wire Feeding Method: | In Coil | Cross Wire Feeding Method: | In Pre-cut |
| Mesh Hole Size: | 50*50mm | Welding Speed: | 40-60 Times/min |
| Key Selling Points: | Save Labor | Color: | Grey& Yellow Or Can Be Customized |
| Usage: | Building Mesh | Lead Time: | 15 Days |
| Highlight: | Concrete Rebar Welded Wire Mesh Machine,12mm Welded Wire Mesh Machine,12mm Rebar Welding Machine |
||

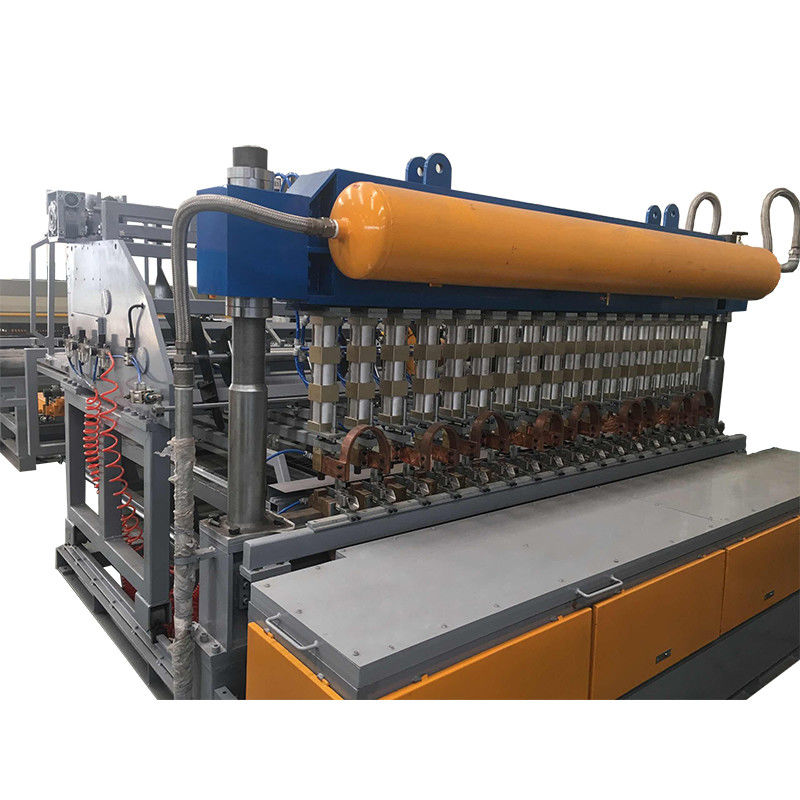

Building Steel Concrete Rebar Welded Wire Mesh Machine
Building Steel Concrete Rebar Welded Wire Mesh Machine is widely used in industrial and civil buildings, highway bridge tunnels, water conservancy projects and other fields. As the overall technology upgrade of the industry, Building Steel Concrete Rebar Welded Wire Mesh Machine welding technology also got great progress, the application range of the Building Steel Concrete Rebar Welded Wire Mesh Machine also got further development. At present, the welding mes has not only applied to the steel reinforced concrete construction welding, steel guardrail mesh, in the field of animal husbandry with reinforcing mesh welding technology has also been very mature.
Traditional processing technology requires a large amount of labor, and also needs separate rebar cutting machine, straightening machine, welding machine and so on, The site is large and difficult to regulate. A fully automatic Building Steel Concrete Rebar Welded Wire Mesh Machine can complete the above operation flow, requires a very small tidy site; After used the Building Steel Concrete Rebar Welded Wire Mesh Machine to process, the qualified rate of the mesh is above 98%. The new DNW series Building Steel Concrete Rebar Welded Wire Mesh Machine can produce not only normal mesh but also all kinds of competitive and non-standard mesh.
| Product type |
DNW-25Q
|
| Working speed max. | 40-60Times/Min. |
| Width range of wire mesh | ≤2500mm |
| Length range of wire mesh | ≧ 1000mm |
| Longitudinal wire spacing | ≧100mm variable from mm it can be adjusted |
| Cross wire spacing | ≧50mm Freely programming adjustments |
| Cross wire diameter | 5-12mm |
| Longitudinal wire diameter | 5-12mm |
| Max. welding capacity | 12-12mm |
| Welding wire material |
low carbon steel galvanized wire; Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture |
| Number of max. welding spot | 24 PCS/ROW |
1. The automatically stacking device of Building Steel Concrete Rebar Welded Wire Mesh Machine is composed of mesh turning plate, mesh dragging device and transporting orbit.
2. During the welding process, the Building Steel Concrete Rebar Welded Wire Mesh Machine dragging hook will clamp the mesh and fastly move to the turning plate and the turning plate driven by the cylinder will drop the mesh on the transporting orbit.
3. When the Building Steel Concrete Rebar Welded Wire Mesh Machine mesh stacking to a certain height, the transporting orbit will transmit the meshes out of the position, which has the accounting function.
4. Working scope: mesh width 2500mm , mesh length can be adjusted automatically.
