| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | GT3-20 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100 sets per month |
| Type: | Automatic Steel Wire Straightening And Cutting Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 2-3.5mm |
| Welding Speed: | 100-120m/min | Machinery Test Report: | Provided |
| Lead Time: | 10 Days | Automation Degree: | CNC |
| Certification: | CE ISO | Producton Capacity: | 50 Sets/Month |
| Voltage: | 220V/380V/415V/440V | Control System: | PLC |
| Highlight: | Automatic Wire Straightening and Cutting Machine,1 Ton Straightening and Cutting Machine,1 Ton Automatic Wire Straightening And Cutting Machine |
||

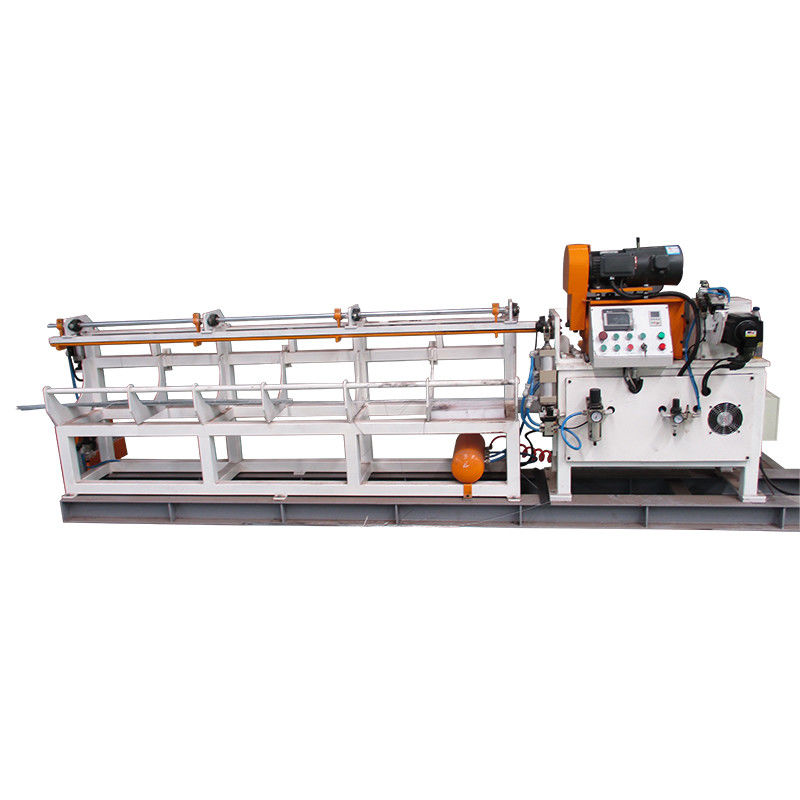

Automatic Steel Wire Straightening And Cutting Machine
All of the Automatic Steel Wire Straightening And Cutting Machine are made of thick steel square pipes, that can make sure the Automatic Steel Wire Straightening And Cutting Machine with long time use life without any problem. Compared with the 0.2 tons weight Automatic Steel Wire Straightening And Cutting Machine , our Automatic Steel Wire Straightening And Cutting Machine is about 1 ton. Obviously our machine can bear the long-time and high-intensity operation.
So after more than 10 years, Automatic Steel Wire Straightening And Cutting Machine can still perform well, producing the good quality welded mesh in high speed, that is why we never use the inferior material to make the machine frame.
| No. | Name | Parameters |
| 1 | Wire diameter | 2.0-4.0mm |
| 2 | Straightening length | 200-2000mm |
| 3 | Cutting error | ＜±1mm |
| 4 | Straightening speed | 60-120m/min |
| 5 | Straightness | ＜2mm/m |
| 6 | Material | Cold drawn wire,Galvanized wire |
| 7 | Voltage fluctuation range | ±10% |
| 8 | Voltage | 380V 50HZ |
As a whole, the Automatic Steel Wire Straightening And Cutting Machine adopts PLC programming control, humanized operation interface, easy to operate and master, mesh specification adjustment can be edited by LCD touch screen, all production data setting is convenient and fast.
Operating system, CNC servo system, stable performance to meet the needs of high-speed welding mesh.
The Automatic Steel Wire Straightening And Cutting Machine console has manual and automatic selection.
Automatic Steel Wire Straightening And Cutting Machine Servo pull system parameters can be set and stored in the PLC, power failure is not lost.
The Automatic Steel Wire Straightening And Cutting Machine control cabinet is equipped with a cooling device, which can bring a good working temperature to the whole control cabinet. Equipment resistance welding controller for professional manufacturers to order products.
