| Place of Origin: | CHINA |
| Brand Name: | FZ |
| Certification: | CE ISO |
| Model Number: | DNW-30Q |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 SETS/MONTH |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 1 Year |
|---|---|---|---|
| Wire Diameter: | 3-6mm | Welding Speed: | 40-60times/min |
| Usage: | Product Fence For Protect Highway And Railway | Rated Capacity: | 150KVA*8 |
| Product Name: | Automatic Welding Wire Steel Wire Mesh Making Machine | Mesh Width: | Max 3300mm |
| Control System: | PLC+Touch Screen | Cross Wire Space: | 50-200mm Adjustable |
| Highlight: | 3D Fence Electric Welding Machine,6mm Electric Welding Machine,6mm Automatic Welding Machine |
||

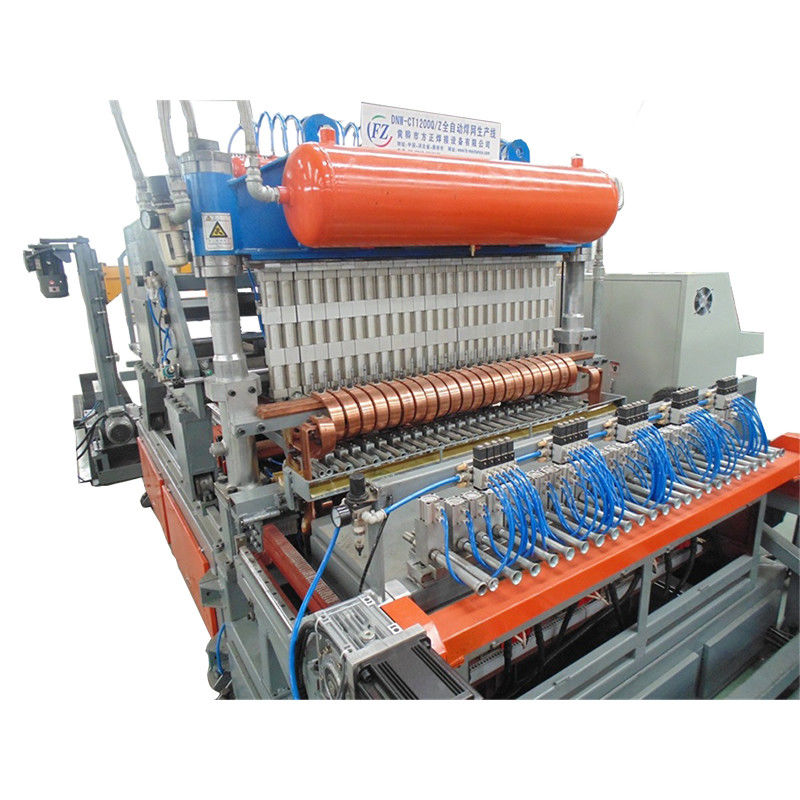

3-6mm 3D Fence Full-Auto Welding Mesh Machine With Bending
In order to meet the needs of your business development, reduce labor costs and improve production efficiency, Fangzheng Company will customize the following equipment in combination with your existing conditions and needs to meet the efficient production of wire mesh
The device is to feed the long wires. And it is also the necessary part in the whole line.
1. Long wires are pre-cut. The pre-cut wires are sent into the wire plucking section from storage area under the drive of motor. After inspection, wire catching plate can send wires (one piece once Time) on the position of the long wire feeding car. Then the long wire feeding car carrying the long wires go to the welding machine.
2. This device is equipped with an inspecting device. If none of long wires drops, the device will alarm automatically. After adjusting by worker, the machine will continue producing, which greatly decrease the damage of equipment and meshes.
3. Materials area is equipped the positioning device to store the wires with different lengths.
| Product type | DNW-3300QB Full-auto Type |
| Working speed max. | 40-60Times/Min. |
| Width range of wire mesh | ≤ 3300mm |
| Length range of wire mesh | ≧1000mm |
| Longitudinal wire spacing | ≧50mm variable from mm it can be adjusted |
| Cross wire spacing | ≧50mm Freely programming adjustments |
| Cross wire diameter | 3-6mm |
| Max. welding capacity | 6+6mm |
| Welding wire material |
low carbon steel galvanized wire; cold drawn wire; Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture |
| Number of max. welding spot | 51PCS/ROW |
| Longitudinal wire feeding method | pre cut in |
| Cross wire feeding method | pre cut in |
| Control method | PLC programming control, servo stepper system |
| Transformer power | 160KVA*9 Cooling water: each transformer has a separate microcomputer |
| The Allowed Fluctuation Range for External Power | ±10% |
| Air consumption pressure | 0.6-0.8Mpa 3.4m³/minute |
| bending | online bending finished on one time |
