| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-13J |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Numerical Control Bird Cage Welded Wire Mesh Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 1-2mm |
| Mesh Hight: | 500-1300mm | Mesh Hole Size: | 15*15mm |
| Welding Speed: | 50-70 Times/min | Voltage: | 220V/380V/415V/440V |
| Key Selling Points: | Numerical Control | Color: | Grey& Yellow Or Can Be Customized |
| Certification: | CE ISO | Producton Capacity: | 100 Sets/Month |
| High Light: | Numerical Control Welded Wire Mesh Machine,15x15mm Welded Wire Mesh Machine,15x15mm Cage Welding Machine |
||

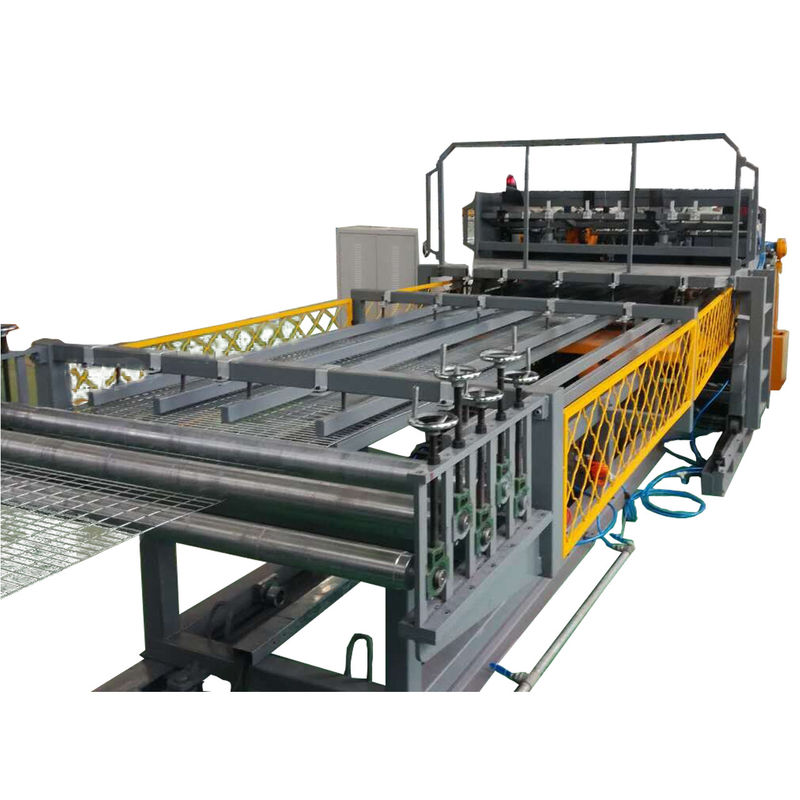

Numerical Control Bird Cage Welded Wire Mesh Machine
The electrode of Numerical Control Bird Cage Welded Wire Mesh Machine is made of pickaxe chromium bronze, good electrical conductivity, good heat resistance and wear resistance, it is the best material as welding electrode. After long time use, you can adjust the angle of the contact section. And two sides can switch for the cylindrical electrodes, 4 sides can switch for the rectangular electrodes. Milling the electrodes when after used all sides. The clear wire is good for the Numerical Control Bird Cage Welded Wire Mesh Machine electrodes use life, and please remember to clean the electrode everyday when you finish the work, stop Numerical Control Bird Cage Welded Wire Mesh Machine.
Cross wire feeding device is important device for the Numerical Control Bird Cage Welded Wire Mesh Machine. Numerical Control Bird Cage Welded Wire Mesh Machine has automatically steel wires feeding device and high-efficiency welding. Numerical Control Bird Cage Welded Wire Mesh Machine with high precision, convenient operation, low cost. The cross wire feeding device of FZ Numerical Control Bird Cage Welded Wire Mesh Machine can produce varieties meshes in high speed. Numerical Control Bird Cage Welded Wire Mesh Machine is mainly used in the engineering construction, the building floor, airport construction, protection and other fields of low carbon steel, galvanized steel, cold rolled ribbed steel materials welding processing.
| No. | Item Name | Parameter | Note |
| Power condition | Voltage and Frequency | 380V 3phase 50HZ |
Intelligent circuit breaker is not suggested the distance to the transformer≦50m |
| Outer voltage range | ±10% | ||
| Outer transformer | 150KVA | ||
| Cable specification | 120mm²*3 Pin Cooper wire | ||
| Air condition | Air compressor | Screw type |
0.6-0.8mpa Distance 3m |
| Air production | 1m³/min | ||
| Air tank capacity | 1m³ | Around machine | |
| Cooling | Water pool capacity | 1m³ | Clean water for industry |
| Lifting distance ,Water pressure |
0.2-0.3mpa 25-30m Lifting |
The wires from coils are firstly straightened through this device in order to ensure that welding mesh will be more even. It is essential to the whole line.
There are 30PCS longitudinal wire straightening unit, each unit has 5pcs wheels, it fits for straitening wire diameter 1-2 mm.
Each unit has the special structure and the distance among each wheel is calculated accurately. So it can straighten different materials such as galvanizing wires, cold-rolled ribbed wires, low-carton black wires, etc.
Each straightening unit adopts tungsten steel as the material; the overall is with high wear resistance.
