| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE ISO |
| Model Number: | DNW-25Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | 5-12mm Steel Bar Reinforce Construction Mesh Welding Machine | Wire Diameter Range: | 5-12mm |
|---|---|---|---|
| Mesh Hight: | 500-2500mm | Mesh Hole Size: | 100*50mm |
| Welding Speed: | 40-60 Times/min | Key Selling Points: | Automatic |
| Mesh Length: | ≤12000mm | Welding Method: | Pneumatic |
| Voltage: | 220V/380V/415V/440V | Control System: | PLC |
| Highlight: | PLC Control Construction Mesh Welding Machine,12mm Construction Mesh Welding Machine,12mm Reinforcing Mesh Welding Machine |
||

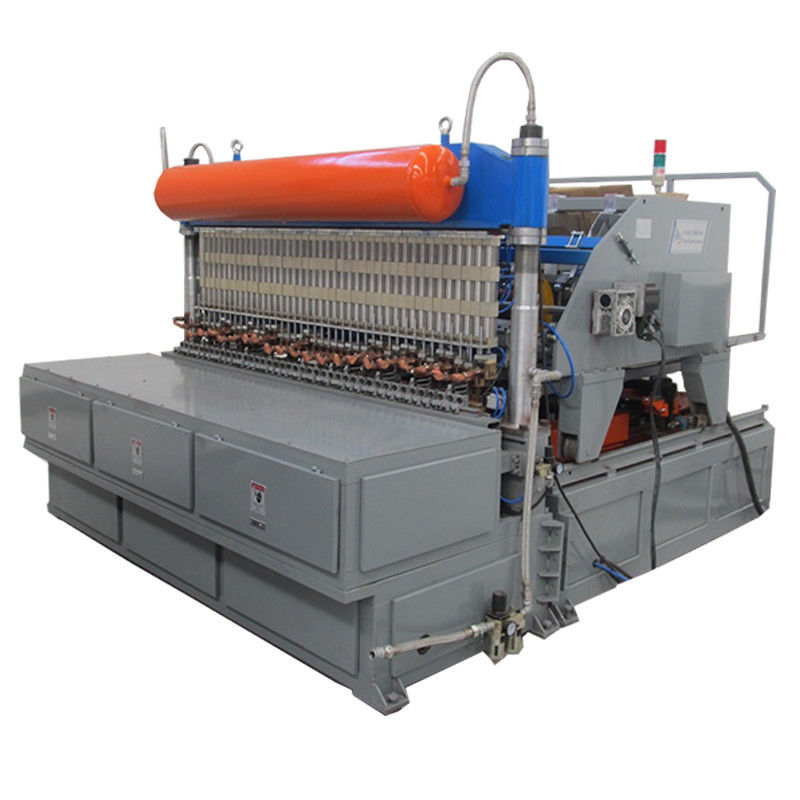

5-12mm Steel Bar Reinforce Construction Mesh Welding Machine
5-12mm Steel Bar Reinforce Construction Mesh Welding Machine is controlled by computer and PLC programming controller, high degree of automation. Can be welded hot rolled ribbed, cold rolled ribs, hot rolled round, cold rolled round and other materials, wide adaptability. 5-12mm Steel Bar Reinforce Construction Mesh Welding Machine can according to the user electricity consumption, using a single or sub-welding, flexibility. The unit of 5-12mm Steel Bar Reinforce Construction Mesh Welding Machine is designed as detachable structure for easy adjustment and maintenance. Transformer, upper and lower electrodes using forced water cooling, and equipped with flow protection device, 5-12mm Steel Bar Reinforce Construction Mesh Welding Machine can work reliably continuously.
| Working speed max. | 40-60Times/Min. |
| Width range of wire mesh | ≤2500mm |
| Length range of wire mesh | ≧1000mm |
| Longitudinal wire spacing | ≧100mm mechanical adjustment |
| Cross wire spacing | ≧25mm Freely programming adjustments |
| Cross wire diameter | 5-12mm |
| Longitudinal wire diameter | 5-12mm |
| Max. welding capacity | 12+12mm |
| Welding wire material |
low carbon steel galvanized wire; Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture |
This system of 5-12mm Steel Bar Reinforce Construction Mesh Welding Machine is to control all the currents and voltages needed during welding and ensure meshes to be firm. It is developed by our company and university, so it is unique.
Each 5-12mm Steel Bar Reinforce Construction Mesh Welding Machine welding transformer is controlled by a separate microcomputer. The 5-12mm Steel Bar Reinforce Construction Mesh Welding Machine welding electronic control adopts the way of grouped power transmission and welding. It means when it is welding cross wire in the same row, and welding transformer is working separately, which makes the welding more reliable, more stable, more faster and more intelligent. It also makes spatters small, and reduces the burn degree of 5-12mm Steel Bar Reinforce Construction Mesh Welding Machine welding joints, and avoid thermal deformation of meshes.
