| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-25Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Security Fencing Metal Gi Wire Net Making Machine | Voltage: | Provided |
|---|---|---|---|
| Key Selling Points: | GI Wire Net | Color: | Can Be Customized |
| Usage: | Fencing Mesh | Lead Time: | 20 Days |
| Welding Method: | Pneumatic | Automation Degree: | Automatic |
| Certification: | CE ISO | Producton Capacity: | 50 Sets/Month |
| Highlight: | Security Fencing Gi Wire Net Making Machine,Pneumatic Gi Wire Net Making Machine,Pneumatic Fencing Net Making Machine |
||

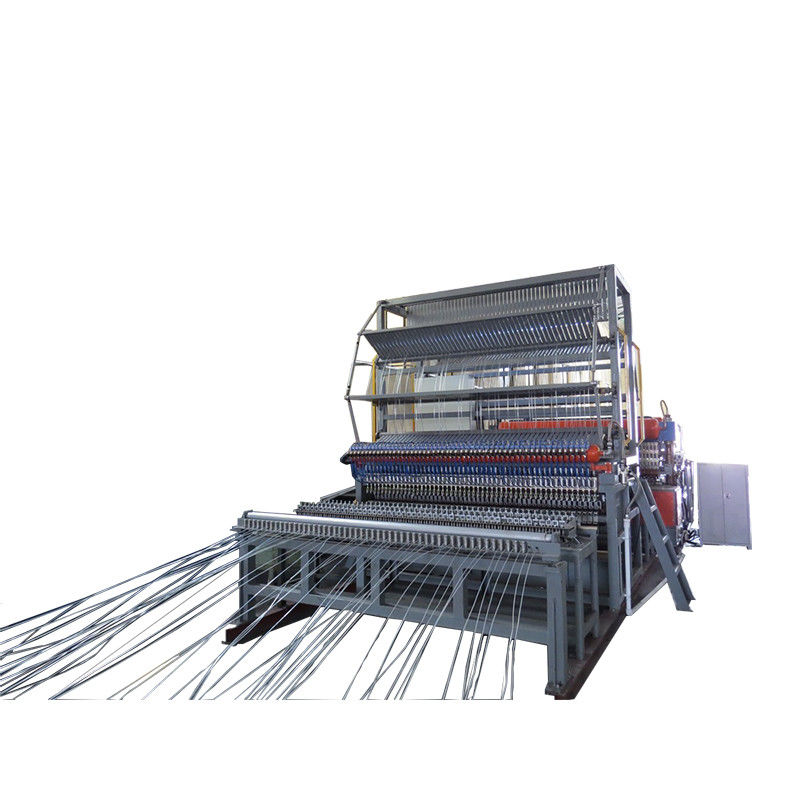

Security Fencing Metal Gi Wire Net Making Machine
The setting, adjustment, display, recording and inspection of the Security Fencing Metal Gi Wire Net Making Machine can be controlled by the touch screen. Therefore, in the Security Fencing Metal Gi Wire Net Making Machine, the transmission speed, welding parameters and operation time of the production line are set up by using touch screen, and the main operation parameters, production speed and output are shown. The Security Fencing Metal Gi Wire Net Making Machine can set the welding time arbitrarily according to the production situation, and can call the relevant program in the system.
Through the programming and intelligent control technology, the Security Fencing Metal Gi Wire Net Making Machine has changed the current manual operation mode, and the reliability is high, it will greatly improve the machining accuracy and production efficiency of the welded wire mesh, suitable for large-scale standard and variety of complex and small quantities wire mesh. The Security Fencing Metal Gi Wire Net Making Machine has the characteristics of small occupation, large output, low cost, simple operation, reasonable process and intelligent controller.
| No. | Name | Brand | Note |
| 1 | Servo motor and driver | DELTA | |
| 2 | Pneumatic component | STNC/ISAIAH | |
| 3 | Linear guideway | PMI | |
| 4 | PLC | DELTA | |
| 5 | Touch screen | DELTA | |
| 6 | Welding electrode | Chromium zirconium bronze | |
| 7 | Switch and button | SCHNEIDER | |
| 8 | Sensor | RUNAN | |
| 9 | Microcomputer controller | FANGZHENG | |
| 10 | Transformer | FANGZHENG | |
| 11 | Chain and cable | ECHU |
1. The ambient air temperature is about 5 ~ 40 ℃;
2. Air relative humidity: 20 ° C Max. 90%, 40 ℃ Max. 50%;
3. The elevation should be lower than 2000 meters;
4. The device must be away from the large vibration equipment;
5. The dust, acid, corrosive gases or substances in the air around the workshop do not exceed normal levels;
6. No outdoor use, it must be used inside the plant, and have specialized personnel to guard the door;
7. Away from the place of the strong magnetic field;
8. Power: AC(380V 50HZ), we suggest adopting a separate transformers of 100-600KVA with a distance less than 50m and the cable should adopt the copper wire of 120 mm²;
9. Water: Provide clean and neutral circulating cooling water, inlet temperature in Summer is not greater than 40 ° C (the referring volume of cooling water is no less than 2 cubic meters), 0.2 ≤ pressure ≤ 0.3MPa
10. Gas: screw rod air compressor with a providing pressure ≥ 0.8MPa and a gas production volume ≥ 3.4m³/min; the air tank with a pressure ≥0.8MPa and a volume≥2m3/min. We suggest you to use the matching air dryer.
11. 4-8mm wire straightening and cutting machine and cold rolled deformed equipment.
Contact Person: Bella
Tel: +8613283273008
