| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-25Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Name: | Numerical Control High Quality Fence Mesh Welding Machine | Mesh Hight: | 500-2500mm |
|---|---|---|---|
| Mesh Hole Size: | 50*50mm | Welding Speed: | 40-60 Times/min |
| Voltage: | 220V/380V/415V/440V | Key Selling Points: | Full Automatic Bending |
| Color: | Can Be Customized | Usage: | Fence Mesh |
| Lead Time: | 30 Days | Mesh Length: | ≤6000mm |
| Highlight: | Numerical Control Chain Link Fencing Making Machine,2500mm Chain Link Fencing Making Machine,2500mm Fencing Making Machine |
||

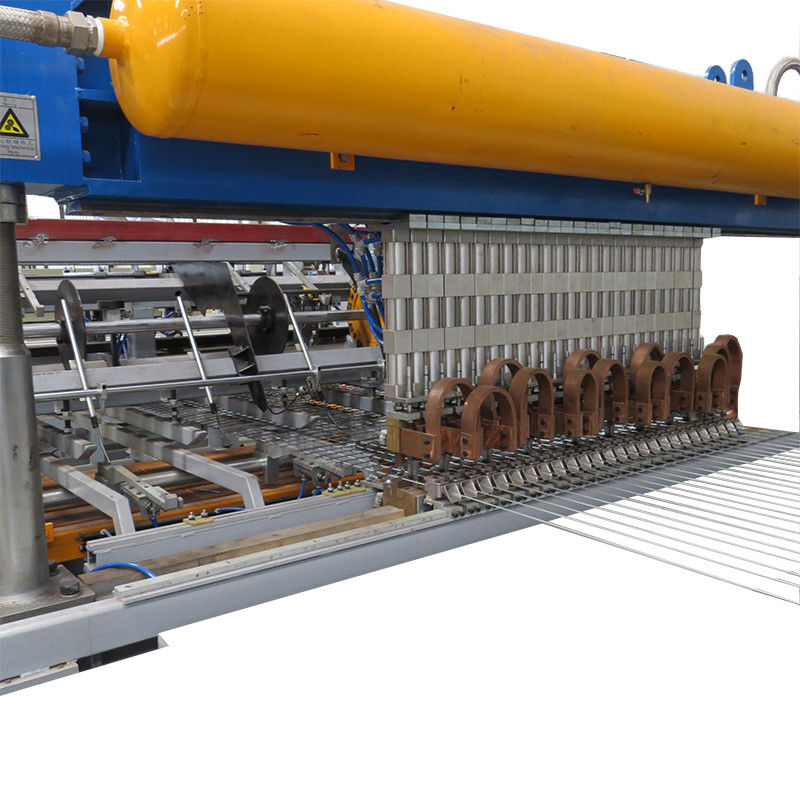

Numerical Control High Quality Fence Mesh Welding Machine
Quality is everything! FZ company Numerical Control High Quality Fence Mesh Welding Machine all electrical and pneumatic components adopt famous brands from domestic and abroad. Each group of welded transformers has microcomputer control. Numerical Control High Quality Fence Mesh Welding Machine can be realized one time pressure, many times welding, make the welding spot more secure. Numerical Control High Quality Fence Mesh Welding Machine overall welding process more stable more intelligent.Numerical Control High Quality Fence Mesh Welding Machine each device of the equipment shall be equipped with automatic device detection and alarm system. So that the machine will stop automatically in case of failure of any part, Numerical Control High Quality Fence Mesh Welding Machine with the corresponding error message popped up on the interactive interface of the main control system.
| Item | Product type | Parameter | Remark |
| 1 | Max. welding capacity | ¢ 6+6mm | |
| 2 | Long wire diameter | ¢3-6mm | |
| 3 | Cross wire diameter | ¢3-6mm | |
| 4 | Long wire feeding method | In coil | |
| 5 | Cross wire feeding method | In pre-cut | |
| 6 | Long wire spacing | ≥50mm | Mechanically adjustments |
| 7 | Cross wire spacing | ≥50mm | Programming adjustments |
| 8 | Length range of wire mesh | ≤60000mm | Adjustable |
| 9 | Width range of wire mesh | ≤2500mm | Adjustable |
| 10 | Number of welding spot | 16PCS | |
| 11 | Working speed max. | 40-60times/min |
The wires from coils are firstly straightened through this device of Numerical Control High Quality Fence Mesh Welding Machine in order to ensure that welding mesh will be more even. It is essential to the whole line.
There are 16 PCS longitudinal wire straightening unit on Numerical Control High Quality Fence Mesh Welding Machine, each unit has 5pcs wheels, it fits for straitening wire diameter 3-6 mm for Numerical Control High Quality Fence Mesh Welding Machine.
Each unit has the special structure and the distance among each wheel is calculated accurately. So it can straighten different materials such as galvanizing wires, cold-rolled ribbed wires, low-carton black wires, etc.
Each straightening on Numerical Control High Quality Fence Mesh Welding Machine unit adopts tungsten steel as the material; the overall is with high wear resistance.
