| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-30Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | Pneumatic Type Automatically Bending Fence Mesh Welding Machine | Voltage: | 220V/380V/415V/440V |
|---|---|---|---|
| Key Selling Points: | 3-6mm | Color: | Customized |
| Usage: | Bending Mesh | Lead Time: | 25 Days |
| Welding Method: | Pneumatic | Automation Degree: | Automatic |
| Certification: | CE ISO | Producton Capacity: | 20 Sets/Month |
| Highlight: | Servo Motor Fence Mesh Welding Machine,6mm Fence Mesh Welding Machine,Servo Motor Wire Mesh Fencing Machine |
||

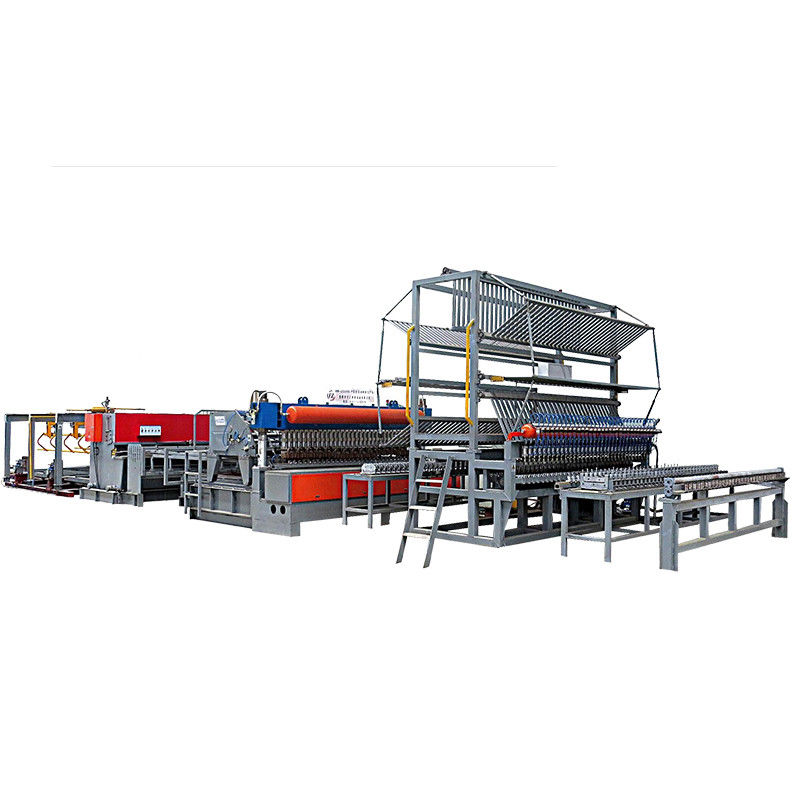

Pneumatic Type Automatically Bending Fence Mesh Welding Machine
Computer and PLC programming controller control, high degree of automation. Welding hot-rolled ribbed, cold-rolled ribbed, hot-rolled round, cold-rolled round and other materials, wide adaptability. According to the user's electricity consumption, use one or two welding, flexibility. Unit design for separable structure, convenient specification adjustment and maintenance. The welding system of transformer, thyristor, upper and lower electrodes adopts forced water cooling and has flow protection device, the unit can work reliably and continuously. Welding pneumatic system pressure stepless adjustable, quick response to steel bar specification change; welding pressure uniform, to ensure the quality of all solder joints. Standard setting for welding Net time, the upper and lower electrode position need not be adjusted, so that time-consuming change spacing price. Greatly improve real productivity.
| No. | Name | Brand | Note |
| 1 | Servo motor and driver | DELTA | |
| 2 | Pneumatic component | STNC/ISAIAH | |
| 3 | Linear guideway | PMI | |
| 4 | PLC | DELTA | |
| 5 | Touch screen | DELTA | |
| 6 | Welding electrode | Chromium zirconium bronze | |
| 7 | Switch and button | SCHNEIDER | |
| 8 | Sensor | RUNAN | |
| 9 | Microcomputer controller | FANGZHENG | |
| 10 | Transformer | FANGZHENG | |
| 11 | Chain and cable | ECHU |
This is the operating system of equipment, which likes the brain of the whole line. Worker operates the equipment with this system. It is necessary.
1) The equipment adopts PLC programming control, and with humanized operation interface, which makes it easy to operate and master.
2) The adjustment of mesh specifications adopts LCD touch screen, which makes it very easy to set all the production datum.
3) Both the operating system and numerical control servo system adopt international known brands. ( they have the international safety certification through testing and inspecting technically) They can ensure that equipment can be steady, secure and sensible to meet the welding requirement at a high speed.
4) Servo motor is controlled by pulse, which makes the grid error reduce to 0.1mm
5) The guide adopts linear rails, used with servo control together, which greatly improves accuracy of mesh.
