| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-25Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Type: | For Sale 1.2mm New Bird Cage Wire Mesh Welding Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 1.2mm |
| Mesh Hight: | 500mm | Mesh Hole Size: | 12*12mm |
| Welding Speed: | 50-70 Times/min | Voltage: | 220V/380V/415V/440V |
| Key Selling Points: | Full Automatic | Color: | Grey& Yellow Or Can Be Customized |
| Highlight: | 1.2mm Wire Mesh Welding Machine,Bird Cage Wire Mesh Welding Machine |
||

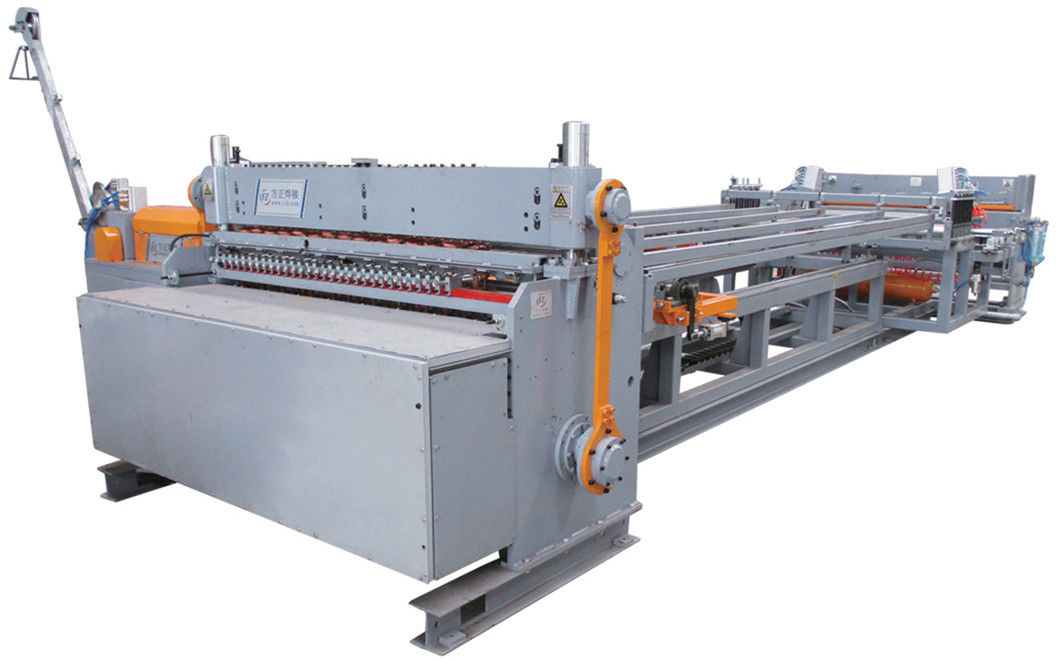

For Sale 1.2mm New Bird Cage Wire Mesh Welding Machine
It is composed of several groups of warp straightening units, each with two pairs of straightening wheels inclined in opposite directions. The unique straightening mechanism is suitable for straightening steel wires of different diameters. Each straightening wheel is made of alloy steel and heat treated and the surface layer is anticorrosive. Suitable for straightening low carbon cold drawing, galvanized wire, etc;
Different diameter steel wire can be straightened well, only need to adjust the upper and lower two groups of straightening wheel spacing.
| Item | Product type | Parameter | Remark |
| 1 | Max. welding capacity | ¢ 3.5+3.5mm | |
| 2 | Long wire diameter | ¢1.2-3.5mm | |
| 3 | Cross wire diameter | ¢1.2-3.5mm | |
| 4 | Long wire feeding method | In coil | |
| 5 | Cross wire feeding method | In pre-cut | |
| 6 | Long wire spacing | ≥12mm | Mechanically adjustments |
| 7 | Cross wire spacing | ≥12mm | Programming adjustments |
| 8 | Length range of wire mesh | ≤500mm | Adjustable |
| 9 | Width range of wire mesh | ≤500mm | Adjustable |
| 10 | Number of welding spot | 16PCS | |
| 11 | Working speed max. | 50-70times/min |
This device is the core part of For Sale 1.2mm New Bird Cage Wire Mesh Welding Machine. It is mainly to weld the meshes at a high speed by cooperating closely with others device.
The welding electrodes head of For Sale 1.2mm New Bird Cage Wire Mesh Welding Machine use high-quality materials, which make them more wearable and with better conductive, and also have a long life, reduce production costs.
The improvement of design of welding transformers of For Sale 1.2mm New Bird Cage Wire Mesh Welding Machine meets the demand to weld continuously wires of 3.5+3.5mm at a high speed at the moment when saving energy.
For Sale 1.2mm New Bird Cage Wire Mesh Welding Machine electrodes adopt circulating water cooling, which extends their service lives, and ensures the long-term operation of the equipment.
