Place of Origin: | China |
Brand Name: | FZ |
Certification: | CE |
Model Number: | DNW-25Q |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic films or can be customized. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Type: | 4-8mm High Speed Low Price Gi Wire Net Making Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
---|---|---|---|
Material Of Machine: | Heavy Plates And Section Bars | Wire Diameter Range: | 4-8mm |
Mesh Hight: | 2500mm | Mesh Hole Size: | 50*50mm |
Welding Speed: | 40-60times/min | Voltage: | 220V/380V/415V/440V |
Key Selling Points: | High Speed | Color: | Can Be Customized |
Highlight: | High Speed 60times/min Gi Wire Net Making Machine,8mm Gi Wire Net Making Machine,8mm Gi Wire Welding Machine |

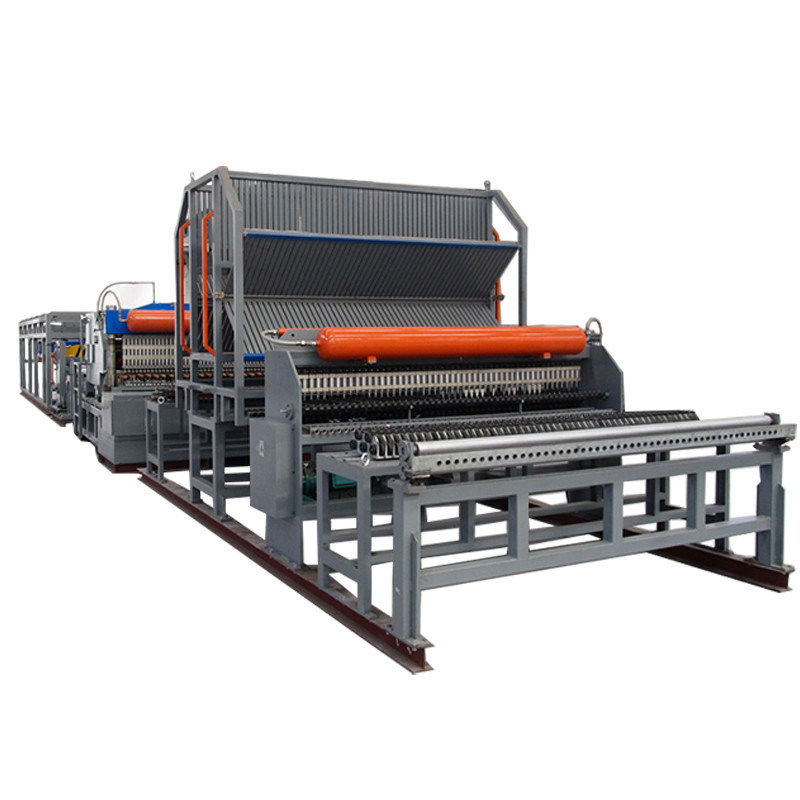

4-8mm High Speed Low Price Gi Wire Net Making Machine
Code network mechanism (rotary flip)
It is composed of rotating range mechanism, trawl mechanism, mesh traction mechanism, conveying trolley and pushing mechanism.
During the welding process, the traction hook on the mechanism clamps the first piece of mesh and moves quickly to the trawl mechanism. The rotary code network mechanism clamps the mesh through pneumatic clamping, suspends the half-air waiting, and drags the second mesh to the flip plate.
The mechanism greatly saves the stacking space of the mesh.
No. | Item Name | Parameter | Note |
Power condition | Voltage and Frequency | 380V 3phase 50HZ |
Intelligent circuit breaker is not suggested the distance to the transformer≦50m |
Outer voltage range | ±10% | ||
Outer transformer | 250KVA | ||
Cable specification | 180mm²*3 Pin Cooper wire | ||
Air condition | Air compressor | screw type |
0.6-0.8mpa Distance 3m |
Air production | 3.4m³/min | ||
Air tank capacity | 1m³ | Around machine | |
Cooling | Water pool capacity | 1m³ | Clean water for industry |
Lifting distance ,Water pressure |
0.2-0.3mpa 25-30m Lifting |
This device is the core part of 4-8mm High Speed Low Price Gi Wire Net Making Machine. It is mainly to weld the meshes at a high speed by cooperating closely with others device.
The welding electrodes head of 4-8mm High Speed Low Price Gi Wire Net Making Machine use high-quality materials, which make them more wearable and with better conductive, and also have a long life, reduce production costs.
The improvement of design of welding transformers of 4-8mm High Speed Low Price Gi Wire Net Making Machine meets the demand to weld continuously wires of 6+6mm at a high speed at the moment when saving energy.
For Sale 4-8mm High Speed Low Price Gi Wire Net Making Machine electrodes adopt circulating water cooling, which extends their service lives, and ensures the long-term operation of the equipment.
