| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | GT8-20 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | discuss |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 15days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 10 SETS/ MON |
| Place Of Origin:: | Hebei, China | Video：: | Provided |
|---|---|---|---|
| Voltage:: | 380V/440V/415V/220V | Cutting Length:: | 200-1000mm（adjustable） |
| Wire Diameter Range: | 4.0-8.0mm | Straightening Speed:: | 70-120m/minute |
| Dimension(L*W*H):: | 5000*900*1350mm | Core Components:: | PLC, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Touch Screen, |
| Weight (KG):: | 18000 | Warranty Of Core Components:: | 1 Year |
| Products Name:: | CNC Straightening And Cutting Steel Wire Machine | Straighteness:: | ±2mm/m |
| High Light: | Dia 8mm Wire Straightening and Cutting Machine,CNC Wire Straightening and Cutting Machine,CNC Wire Straightening Machine |
||

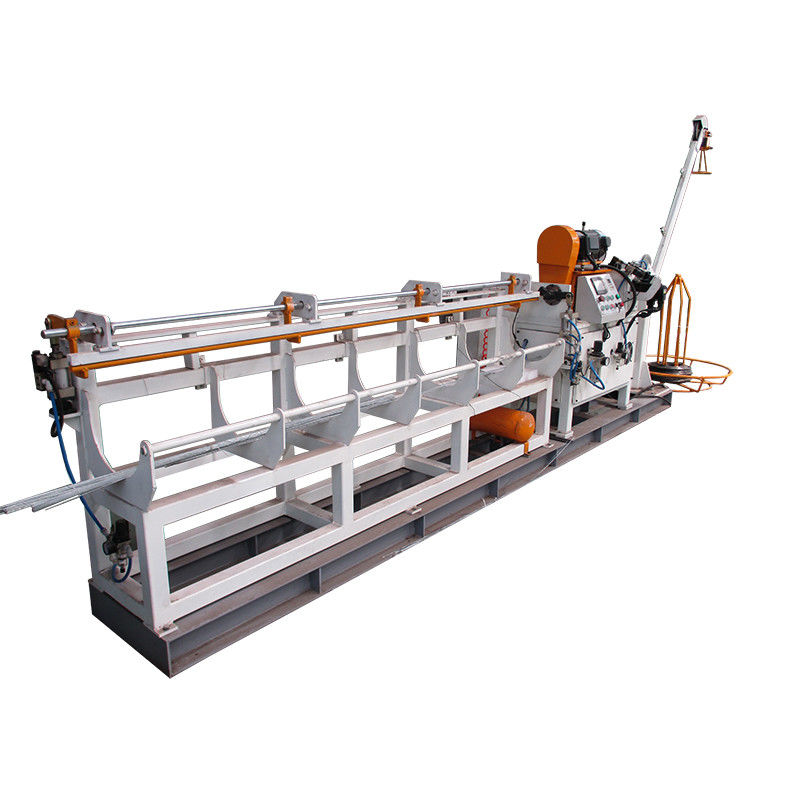

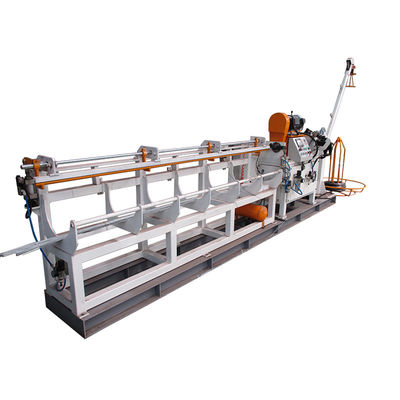

Low Price CNC Wire Straightening And Cutting Machine For 4-8mm
Features of high efficiency CNC straightening machine:
1. This straightening machine is one of the main products of our company, with high cost performance, high precision and fast speed.
2. Drive mode: the feeding and straightening are variable frequency brake motors, which ensure the sensitivity of pause, fast stop speed and no damage to the motor.
3. Control: integrated control cabinet and operation, PLC programming control, touch screen operation interface, can memory specifications, making the operation more humanized and adjustment more convenient.
4. The straightening mother is made of alloy. After special treatment, it is durable and can make the straight wire scratch small (slight thread scratch) without damaging the surface of the wire
| NO. | NAME | PARAMETER |
| 1 | Wire diameter | 4.0-8.0mm |
| 2 | Length | 500-2000mm(adjustable) |
| 3 | Length error | ＜±1mm |
| 4 | Speed | 70-120m/min |
| 5 | Straightenss | ＜2mm/m |
| 6 | Material | Q235,Q195,Galvanized wire |
| 7 | Cutting knife material | Alloy |
| 8 | Feed motor power | 4.5KW |
| 9 | Motor power of shuttle | 3KW |
| 10 | Power supply voltage | 380V 3Phas 50Hz |
| 11 | Air pressure | 0.6-0.8mpa |
| 12 | Equipment size | 4620*500*2230 |
| 13 | Color | Gray,Yellow |
