| Place of Origin: | CHINA |
| Brand Name: | FZ |
| Certification: | CE ISO |
| Model Number: | DNW-30Q |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 SETS/ MONTH |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 1 Year |
|---|---|---|---|
| Wire Diameter: | 3-6mm | Welding Speed: | 40-60times/min |
| Usage: | Product Fence For Protect Highway And Railway | Rated Capacity: | 150KVA*6 |
| Product Name: | Automatic Welding Wire Steel Wire Mesh Making Machine | Mesh Width: | Max 2500mm |
| Control System: | PLC+Touch Screen | Cross Wire Space: | 50-200mm |
| Rated Duty Cycle: | 50% | Name: | Wire Mesh Welding Machine |
| Long Wire Spacing:: | 50-200mm Adjustable | ||
| Highlight: | ISO Welding Mesh Machine,150KVA Welding Mesh Machine,150KVA Fence Mesh Welding Machine |
||

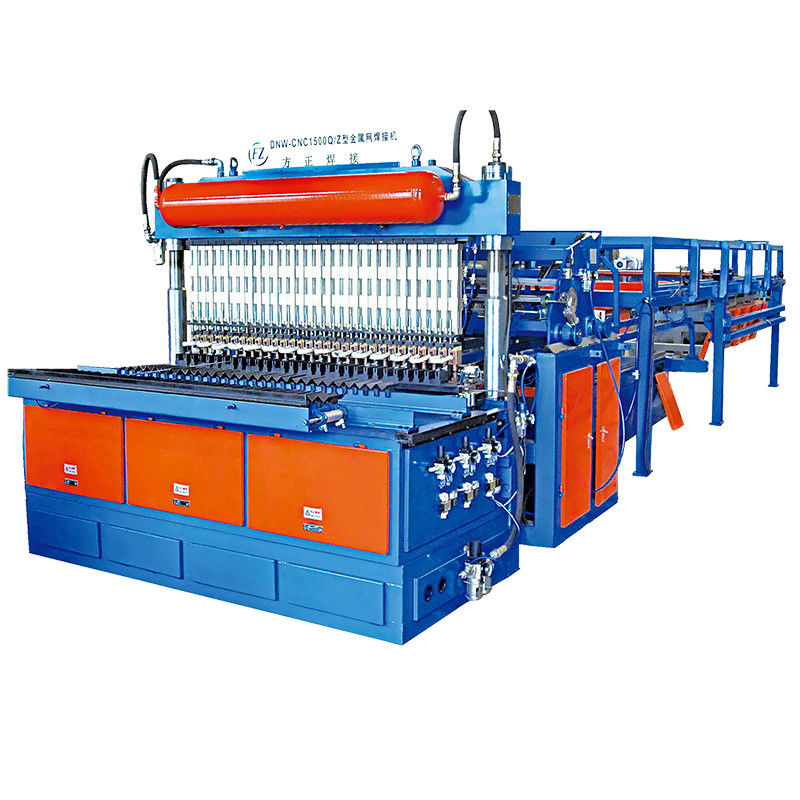

Welding Mesh Machine With Online Bending For Fence Panel
In order to meet the needs of customers' business development, reduce labor costs and improve production efficiency,we orders the Gi Wire Net Making Machine according to your existing situation and needs to meet the efficient production of metal mesh.
We ensure that we will continuously improve and perfect the appearance, quality, performance and after-sales service of the products and try our best to provide the products with good quality and after-sales service for our customers. We believe that you will think each of our welding equipments is worth its price after you use it.
The device is to feed the long wires. And it is also the necessary part in the whole line.
1. Cross wires are pre-cut. The pre-cut wires are sent into the wire plucking section from storage area under the drive of motor. After inspection, wire catching plate can send wires (one piece once Time) on the position of the long wire feeding car. Then the long wire feeding car carrying the long wires go to the welding machine.
2. This device is equipped with an inspecting device. If none of long wires drops, the device will alarm automatically. After adjusting by worker, the machine will continue producing, which greatly decrease the damage of equipment and meshes.
3. Materials area is equipped the positioning device to store the wires with different lengths.
| Product type | DNW-3300QB Full-auto Type |
| Working speed max. | 40-60Times/Min. |
| Width range of wire mesh | ≤ 3300mm |
| Length range of wire mesh | ≧1000mm |
| Longitudinal wire spacing | ≧50mm variable from mm it can be adjusted |
| Cross wire spacing | ≧50mm Freely programming adjustments |
| Cross wire diameter | 3-6mm |
| Max. welding capacity | 6+6mm |
| Welding wire material |
low carbon steel galvanized wire; cold drawn wire; Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture |
| Number of max. welding spot | 51PCS/ROW |
| Longitudinal wire feeding method | pre cut in |
| Cross wire feeding method | pre cut in |
| Control method | PLC programming control, servo stepper system |
| Transformer power | 160KVA*9 Cooling water: each transformer has a separate microcomputer |
| The Allowed Fluctuation Range for External Power | ±10% |
| Air consumption pressure | 0.6-0.8Mpa 3.4m³/minute |
| bending | online bending finished on one time |
Our mesh welding equipments are applied for many different areas. They are listed as following: high-speed rails mesh welding machine, reinforcing mesh welding machine, high-precision animal husbandry mesh welding machine, coal mine supporting mesh welding machine, construction mesh welding machine, vertical 3D panel production line, steel wire products welding machine. Our products win a good reputation from customers due to its high degree of automation, stable operation, and convenient operation.
We will insist on improving our products in appearance, quality, performance, after-sale. We strive to provide customers with quality products and after-sales service, and committed to provide users with a cost-effective mesh welding equipment.
