Place of Origin: | CHINA |
Brand Name: | FZ |
Certification: | CE ISO |
Model Number: | DNW-30Q |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiate |
Packaging Details: | Plastic films or can be customized. |
Delivery Time: | 60days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 10 sets /month |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 1 Year |
---|---|---|---|
Wire Diameter: | 3-6mm | Welding Speed: | 40-60times/min |
Usage: | Product Fence For Protect Highway And Railway | Rated Capacity: | 160KVA*6 |

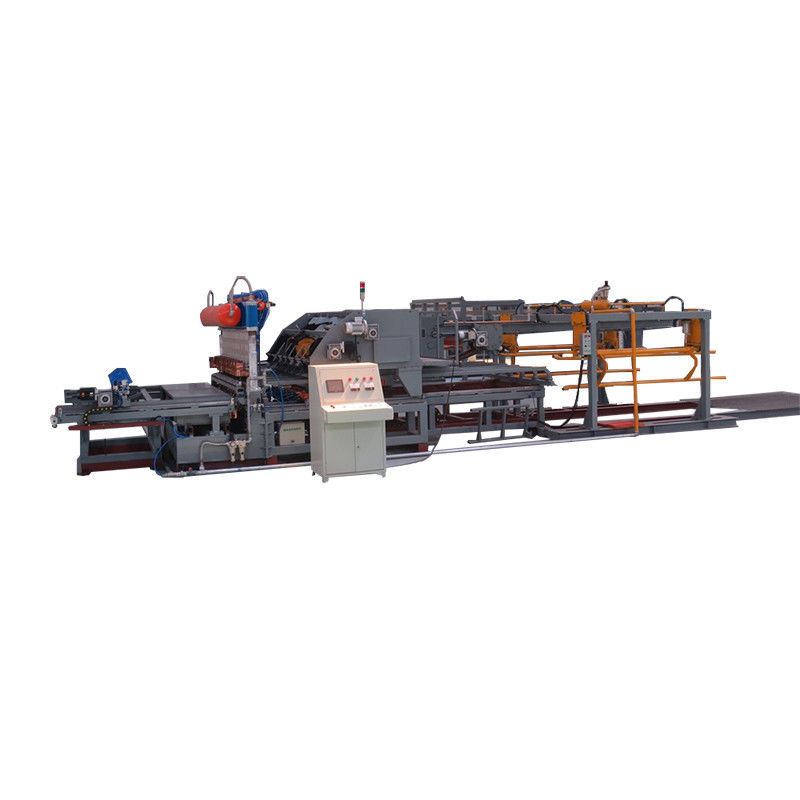

Product Name: | Automatic Welding Wire Steel Wire Mesh Making Machine | Mesh Width: | Max 2500mm |
Control System: | PLC+Touch Screen | Cross Wire Space: | 50-200mm |
Voltage: | 380V/50HZ/Customized | ||
High Light: | 160KVA Automatic Wire Mesh Welding Machine,PLC Automatic Wire Mesh Welding Machine,160KVA Mesh Welding Machine |
Full-Auto And High Speed Welding Mesh Machine For Pallet
1. Cross wires are pre-cut. The pre-cut wires are sent into the wire plucking section from storage area under the drive of motor. After inspection, wire catching plate can send wires (one piece once Time) on the position of the long wire feeding car. Then the long wire feeding car carrying the long wires go to the welding machine.
2. This device is equipped with an inspecting device. If none of long wires drops, the device will alarm automatically. After adjusting by worker, the machine will continue producing, which greatly decrease the damage of equipment and meshes.
3. Materials area is equipped the positioning device to store the wires with different lengths.
Cross wire spacing can be designed freely in the operating interface, and the operation is very simple, which can meet a variety of mesh spacing changes for one mesh, and it can meet the different requirements of customers.
4. The device with the function of safety protection can avoid the troubles when machine is working or cause of wrong operation by worker.
Product type | DNW-3300QB Full-auto Type |
Working speed max. | 40-60Times/Min. |
Width range of wire mesh | ≤ 3300mm |
Length range of wire mesh | ≧1000mm |
Longitudinal wire spacing | ≧50mm variable from mm it can be adjusted |
Cross wire spacing | ≧50mm Freely programming adjustments |
Cross wire diameter | 3-6mm |
Max. welding capacity | 6+6mm |
Welding wire material |
low carbon steel galvanized wire; cold drawn wire; Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture |
Number of max. welding spot | 51PCS/ROW |
Longitudinal wire feeding method | pre cut in |
Cross wire feeding method | pre cut in |
Control method | PLC programming control, servo stepper system |
Transformer power | 160KVA*9 Cooling water: each transformer has a separate microcomputer |
The Allowed Fluctuation Range for External Power | ±10% |
Air consumption pressure | 0.6-0.8Mpa 3.4m³/minute |
bending | online bending finished on one time |
Cross wires are pre-cut. The pre-cut wires are sent into the wire plucking section from storage area under the drive of motor. After inspection, wire catching plate can send wires (one piece once Time) on the position between electrodes to weld. After finishing one row of welding, the longitudinal wires step one grid and one piece of cross wire drops at the same time and then welding starts. After some times welding like this, one mesh will be finished.
