| Place of Origin: | CHINA |
| Brand Name: | FZ |
| Certification: | CE ISO |
| Model Number: | HJ-20Q |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 sets /month |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Warranty: | 1 Year |
|---|---|---|---|
| Wire Diameter: | 2-4mm | Welding Speed: | 60-90times/min |
| Usage: | Product Fence For Protect Highway And Railway | Rated Capacity: | 125KVA*6 |

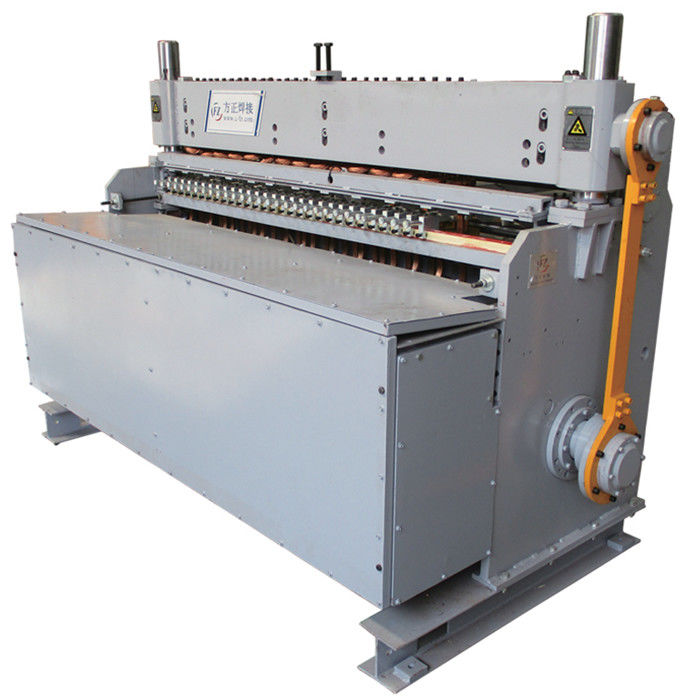

| Product Name: | Automatic Welding Wire Steel Wire Mesh Making Machine | Mesh Width: | Max 2000mm |
| Control System: | PLC+Touch Screen | Cross Wire Space: | 50-200mm |
| Voltage: | 380V/50HZ/Customized | ||
| Highlight: | Welding Wire Mesh Making Machine,125KVA Wire Mesh Making Machine |
||
Pet Cage Wire Welding Make Machine With Little Spacing
Long wire and cross wire are all coil in ,they had made for nearly 10years and they are the first one type making for cross wire coil in China.
We will continue to improve, perfect and improve the appearance, quality, performance and after-sales of our products, strive to provide customers with high-quality products and after-sales service, and strive to provide users with cost-effective wire mesh welding equipment.
It is composed of several groups of warp straightening units, each group has two pairs of straightening wheels inclined in opposite directions. The unique straightening mechanism is suitable for straightening steel wires with different diameters. Each unit has five straightening wheels. Each straightening wheel is made of alloy steel and has undergone heat treatment, and the surface layer has undergone anti-corrosion treatment, which is wear-resistant and anti-corrosion as a whole. It is suitable for straightening low-carbon cold drawn wire, galvanized wire, etc;
Different diameter steel wire can be straightened well, just need to adjust the distance between the upper and lower two groups of straightening wheel.
| Product type | HJ-20 Full-auto Type |
| Working speed max. | 70-90s/Min. |
| Width range of wire mesh | ≤ 2000 |
| Length range of wire mesh | ≧1000mm |
| Longitudinal wire spacing | ≧50mm variable from mm it can be adjusted |
| Cross wire spacing | ≧25mm Freely programming adjustments |
| Cross wire diameter | 2.0mm-4.0mm |
| Max. welding capacity | 4+4mm |
| Welding wire material |
low carbon steel galvanized wire; cold drawn wire; Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture |
| Number of max. welding spot | 61PCS/ROW |
| Longitudinal wire feeding method | pre cut in |
| Cross wire feeding method | pre cut in |
| Control method | PLC programming control, servo stepper system |
| Transformer power | 125KVA*7 Cooling water: each transformer has a separate microcomputer |
| The Allowed Fluctuation Range for External Power | ±10% |
| Air consumption pressure | 0.6-0.8Mpa 3.4m³/minute |
| bending | online bending finished on one time |
Contact Person: Bella
Tel: +8613283273008
