| Place of Origin: | CHINA |
| Brand Name: | FZ |
| Certification: | CE ISO |
| Model Number: | DNW-30Q |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 sets/month |
| Warranty: | 1 Year | Wire Diameter: | 3-6mm |
|---|---|---|---|
| Welding Speed: | 50-70times/min | Usage: | Product Fence For Protect Highway And Railway |
| Rated Capacity: | 160KVA*9 | Product Name: | Automatic Welding Wire Steel Wire Mesh Making Machine |
| Mesh Width: | Max 3300mm | Control System: | PLC+Touch Screen |
| Cross Wire Space: | 50-200mm Be Adjustable | Voltage: | 380V/50HZ Or Your Need |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Weight: | 6T |
| Type: | Automatic | Certification: | ISO9001-2008;CE |
| Highlight: | 160KVA Reinforcing Mesh Welding Machine,PLC Reinforcing Mesh Welding Machine |
||

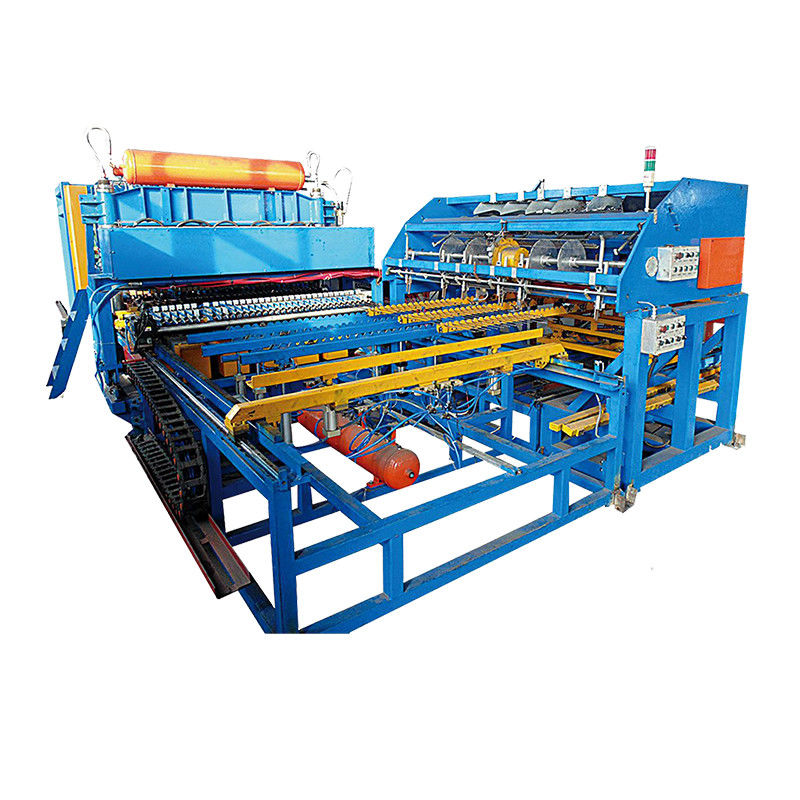

Reinforcment Mesh Welding Machine For Building Construct
In order to make machine playing a better performance, we must pay more attention to the following requirements for site selection and equipment layout.
1. The ambient air temperature is about 5 ~ 40 ℃;
2. Air relative humidity: 20 ° C Max. 90%, 40 ℃ Max. 50%;
3. The elevation should be lower than 2000 meters;
4. The device must be away from the large vibration equipment;
5. The dust, acid, corrosive gases or substances in the air around the workshop do not exceed normal levels
| Product type | DNW-33 Full-auto Type |
| Working speed max. | 60-80s/Min. |
| Width range of wire mesh | ≤ 3300 |
| Length range of wire mesh | ≧1000mm |
| Longitudinal wire spacing | ≧50mm variable from mm it can be adjusted |
| Cross wire spacing | ≧50mm Freely programming adjustments |
| Cross wire diameter | 3-6mm |
| Max. welding capacity | 6+6mm |
| Welding wire material |
low carbon steel galvanized wire; cold drawn wire; Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture |
| Number of max. welding spot | 51PCS/ROW |
| Longitudinal wire feeding method | pre cut in |
| Cross wire feeding method | pre cut in |
| Control method | PLC programming control, servo stepper system |
| Transformer power | 160KVA*9 Cooling water: each transformer has a separate microcomputer |
| The Allowed Fluctuation Range for External Power | ±10% |
| Air consumption pressure | 0.6-0.8Mpa 3.4m³/minute |
| bending | online bending finished on one time |
The automatically packing device is composed of mesh turning plate, mesh dragging device and transporting orbit.
2. During the welding process, the dragging hook will clamp the mesh and fastly move to the turning plate and the turning plate driven by the cylinder will drop the mesh on the transporting orbit.
3. When the mesh packing to a certain height, the transporting orbit will transmit the meshes out of the position, which has the accounting function.
4. Working scope: mesh width 2500mm , mesh length can be adjusted automatically.
