| Place of Origin: | China |
| Brand Name: | FZ |
| Certification: | CE |
| Model Number: | DNW-33Q |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic films or can be customized. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Material Of Machine: | Heavy Plates And Section Bars | Mesh Hight: | 1000-3000mm |
|---|---|---|---|
| Mesh Hole Size: | 100*100mm | Welding Speed: | 40-60 Times/min |
| Voltage: | 220V/380V/415V/440V Or Can Be Customized | Color: | Can Be Customized |
| Lead Time: | 30 Days | Mesh Length: | ≤12000mm |
| Welding Method: | Pneumatic | Certification: | CE |
| Highlight: | plc reinforcing mesh welding machine,12mm reinforcing mesh welding machine,6mm reinforcing mesh machine |
||

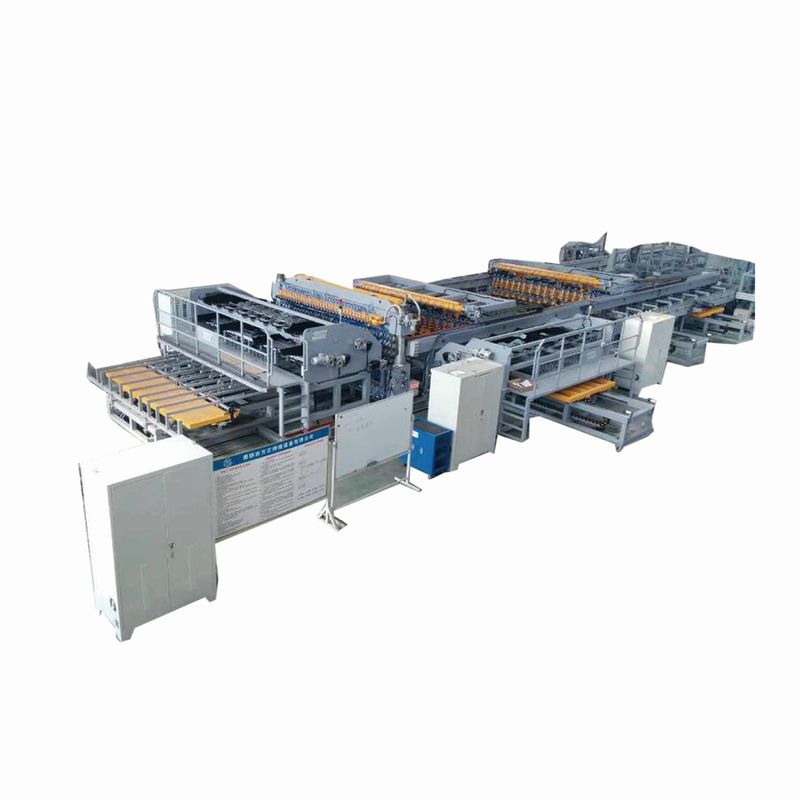

Fully Automatic 6-12mm Pre - Cut Wire Reinforcing Mesh Welding Machine
The pneumatic welding mechanism is composed of cross beam, insulation plate, welding cylinder, upper electrode, serial circuit, etc.The beam is welded into type steel.Cylinder is installed through insulation plate and crossbeam. Welding cylinder is a strength cylinder to fully improve the welding pressure and ensure the welding quality.The upper electrode is made of cold violet copper, and the welding block material is chromium zirconia copper, which is now widely used and recognized as the best resistance welding head material.The welding cylinder and upper electrodes can be adjusted to meet different needs of welding mesh.
| No. | Name | Brand |
| 1 | Servo motor and driver | DELTA |
| 2 | Pneumatic component | STNC/ISAIAH |
| 3 | Linear guideway | PMI |
| 4 | PLC | DELTA |
| 5 | Touch screen | DELTA |
| 6 | Welding electrode | Chromium zirconium bronze |
| 7 | Switch and button | SCHNEIDER |
| 8 | Sensor | RUNAN |
| 9 | Microcomputer controller | FANGZHENG |
| 10 | Transformer | FANGZHENG |
| 11 | Chain and cable | ECHU |
After-sale service for Fully Automatic 6-12mm Pre - Cut Wire Reinforcing Mesh Welding Machine
After the assurance period, during the service life of the Fully Automatic 6-12mm Pre - Cut Wire Reinforcing Mesh Welding Machinee,we supply after-sale service with good quality.
We guarantee a lifelong maintenance and supply spare parts and easily Fully Automatic 6-12mm Pre - Cut Wire Reinforcing Mesh Welding Machine damaged parts.
We will arrange engineer to the factory to supply technical service as soon as we receive formal notification such as fax or email if Fully Automatic 6-12mm Pre - Cut Wire Reinforcing Mesh Welding Machine customer can not solve the problem under the guidance on the phone.
Provide regular Fully Automatic 6-12mm Pre - Cut Wire Reinforcing Mesh Welding Machine inspection and maintenance service.
Update the Fully Automatic 6-12mm Pre - Cut Wire Reinforcing Mesh Welding Machine new Software edition for free.
