Reinforcing Steel Bar 12mm Mesh Welding Machine Semi Auto Servo Motor

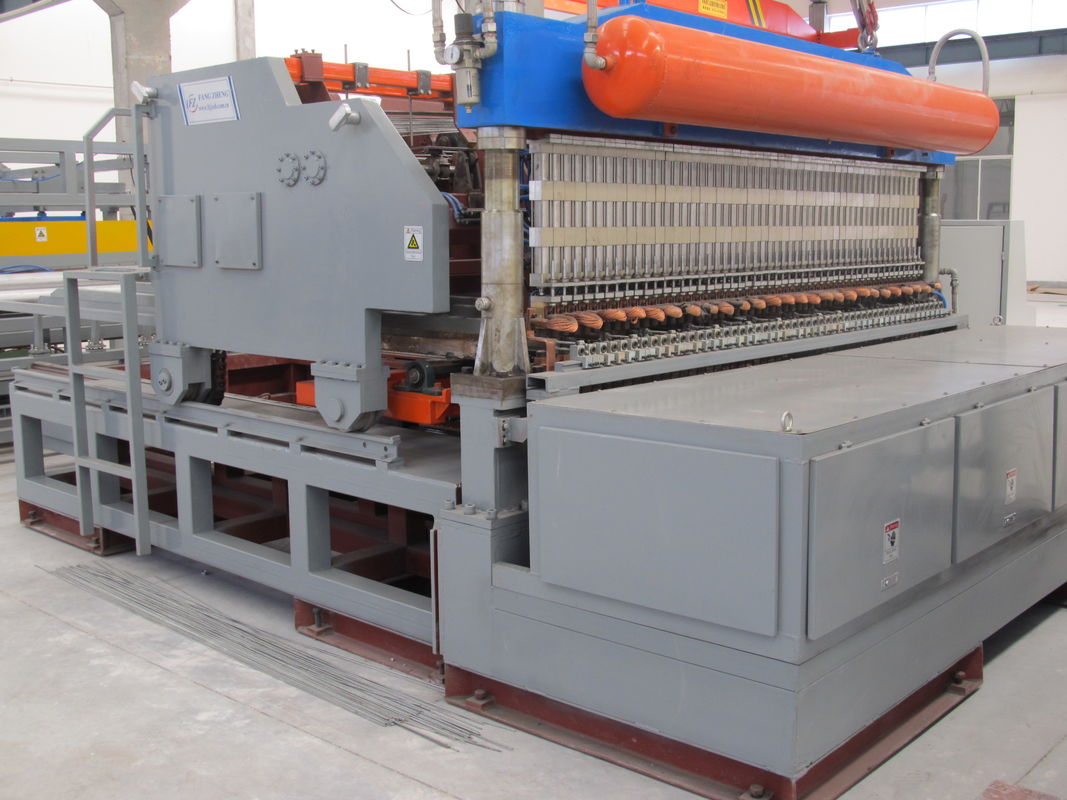

Semi-Auto Reinforcing Steel Bar Mesh Welding Machine

Check the circuit, check whether the connection line in the cabinet is loose and broken. whether there are sundries in the electric cabinet, measure the three-phase voltage of the power supply to ensure compliance with the requirements of this machine. Otherwise it may damage the equipment, or it cannot work properly.

Power transmission, system closing, turn on the power switch, at this time the system has been charged.

Use the cross wier servo motor to deliver the cross wire to the specified length for welding.

Put the long wire through the electrode head.

Connect the gas source.

Adjust the mesh pulling car to the origin position. If it is the first machine adjustment, first press the pneumatic cut off the wire button, then push the wire cylinder test, then a wire will fall on the machine's welding contact. On the touch screen, turn the working state to the debug state, and then pull the wire back a little bit until the retractor can hook the weft on the contact. Using iron plate type tool to detect the drawing origin proximity switch to locate the drawing origin.

This device is the core part of Semi-Auto Reinforcing Steel Bar Mesh Welding Machine. It is mainly to weld the meshes at a high speed by cooperating closely with others device.

The welding electrodes head of Semi-Auto Reinforcing Steel Bar Mesh Welding Machine use high-quality materials, which make them more wearable and with better conductive, and also have a long life, reduce production costs.

The improvement of design of welding transformers of Semi-Auto Reinforcing Steel Bar Mesh Welding Machine meets the demand to weld continuously wires of 12+12mm at a high speed at the moment when saving energy.

Semi-Auto Reinforcing Steel Bar Mesh Welding Machine 33 electrodes adopt circulating water cooling, which extends their service lives, and ensures the long-term operation of the equipment.
