| Place of Origin: | CHINA |
| Brand Name: | FZ |
| Certification: | CE ISO |
| Model Number: | HJ-20Q |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Wire Diameter: | 6-12mm | Welding Speed: | 40-60times/min |
|---|---|---|---|
| Usage: | Product Fence For Protect Highway And Railway | Rated Capacity: | 160KVA*9 |
| Product Name: | Automatic Welding Wire Steel Wire Mesh Making Machine | Mesh Width: | Max 3300mm For Your Need |
| Control System: | PLC+ Touch Screen | Cross Wire Space: | 50mm Be Adjustable |
| Voltage: | 380V/50HZ | Long Wire Spacing:: | ≥50mm |
| High Light: | PLC Control Reinforcing Mesh Welding Machine,160KVA Reinforcing Mesh Welding Machine,160KVA Reinforcing Mesh Machine |
||

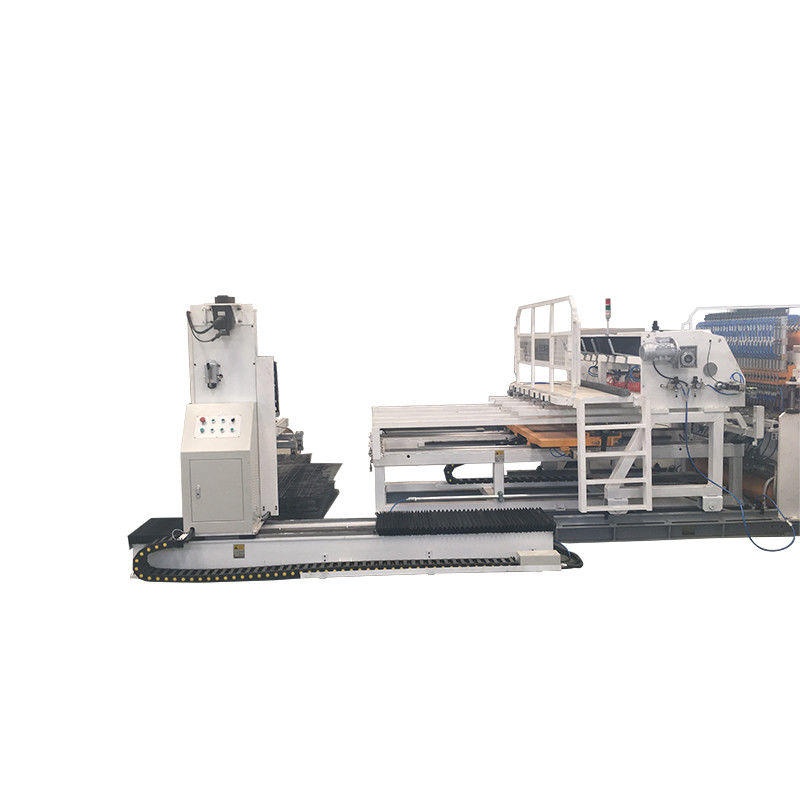

Mental Rebar Building Reinforcement Wire Mesh Welding Machine
Long wire and cross wire are all coil in ,they had made for nearly 10years and they are the first one type making for cross wire coil in China.
We will continue to improve, perfect and improve the appearance, quality, performance and after-sales of our products, strive to provide customers with high-quality products and after-sales service, and strive to provide users with cost-effective wire mesh welding equipment.
| Product type | DNW-33 Full-auto Type |
| Working speed max. | 70-90s/Min. |
| Width range of wire mesh | ≤ 2000 |
| Length range of wire mesh | ≧1000mm |
| Longitudinal wire spacing | ≧20mm variable from mm it can be adjusted |
| Cross wire spacing | ≧20mm Freely programming adjustments |
| Cross wire diameter | 6-12mm |
| Max. welding capacity | 12+12mm |
| Welding wire material |
low carbon steel galvanized wire; cold drawn wire; Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture |
| Number of max. welding spot | 61PCS/ROW |
| Longitudinal wire feeding method | pre-cut in |
| Cross wire feeding method | pre-cut in |
| Control method | PLC programming control, servo stepper system |
| Transformer power | 160KVA*9Cooling water: each transformer has a separate microcomputer |
| The Allowed Fluctuation Range for External Power | ±10% |
| Air consumption pressure | 0.6-0.8Mpa 3.4m³/minute |
| bending | online bending finished on one time |
The finished mesh panel will fall automaticly. This falling device is one lifting and descending platform.
At first , the platform is on the high position, whicn ensure the mesh panel falling smoothly. With more mesh panel, the platform will descend.
This most advantage is neat mesh panel after falling. In China, only our machine is equiped with this device.
