| Place of Origin: | CHINA |
| Brand Name: | FZ |
| Certification: | CE ISO |
| Model Number: | DNW-30Q |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Warranty: | 1 Year | Wire Diameter: | 3-6mm |
|---|---|---|---|
| Welding Speed: | 60-80times/min | Usage: | Product Fence For Protect Highway And Railway |
| Rated Capacity: | 160KVA*8 | Product Name: | Automatic Welding Wire Steel Wire Mesh Making Machine |
| Mesh Width: | Max 3300mm | Control System: | PLC+Touch Screen |
| Cross Wire Space: | 50-200mm Be Adjustable | Voltage: | 380V/50HZ Or Your Need |
| Cross Wire Spacing: | 50mm Can Be Adjustable | Long Wire Spacing: | 50mm Can Be Adjustable |
| Highlight: | Servo System Steel Wire Welding Machine,80s/Min Steel Wire Welding Machine,80s/Min Steel Welding Machine |
||

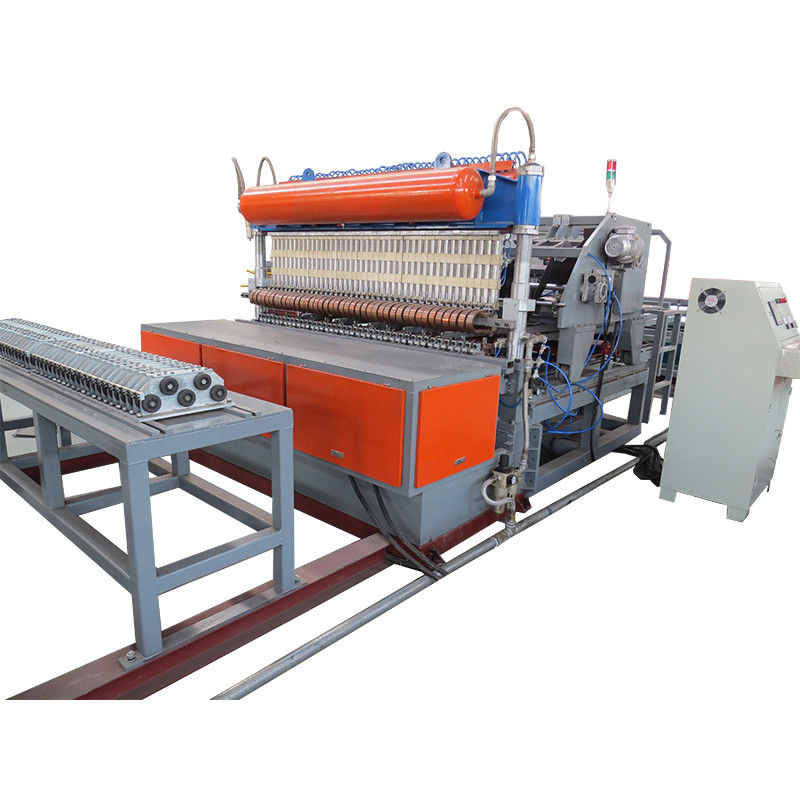

Fence Support Network Mesh Welding Machine 50*50mm Spacing
In order to make machine playing a better performance, we must pay more attention to the following requirements for site selection and equipment layout.
1) The equipment adopts PLC programming control, and with humanized operation interface, which makes it easy to operate and master.
2) The adjustment of mesh specifications adopts LCD touch screen, which makes it very easy to set all the production datum.
3) Both the operating system and numerical control servo system adopt international known brands. ( they have the international safety certification through testing and inspecting technically) They can ensure that equipment can be steady, secure and sensible to meet the welding requirement at a high speed.
4) Servo motor is controlled by pulse, which makes the grid error reduce to 0.1mm
5) The guide adopts linear rails, used with servo control together, which greatly improves accuracy of mesh.
| Product type | DNW-33 Full-auto Type |
| Working speed max. | 60-80s/Min. |
| Width range of wire mesh | ≤ 1300 |
| Length range of wire mesh | ≧1000mm |
| Longitudinal wire spacing | ≧50mm variable from mm it can be adjusted |
| Cross wire spacing | ≧25mm Freely programming adjustments |
| Cross wire diameter | 3-6mm |
| Max. welding capacity | 6+6mm |
| Welding wire material |
low carbon steel galvanized wire; cold drawn wire; Apply to clean wires whose surface are without excessive oxides, foreign matter, moisture |
| Number of max. welding spot | 51PCS/ROW |
| Longitudinal wire feeding method | coil in |
| Cross wire feeding method | pre cut in |
| Control method | PLC programming control, servo stepper system |
| Transformer power | 160KVA*9 Cooling water: each transformer has a separate microcomputer |
| The Allowed Fluctuation Range for External Power | ±10% |
| Air consumption pressure | 0.6-0.8Mpa 3.4m³/minute |
| bending | online bending finished on one time |
Contact Person: Bella
Tel: +8613283273008
